AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [CW6A-EL]

id0517l1117200

Special Service Tool (SST)

1.  : Mazda SST number
2.  : Global SST number
1: 49 C017 5A0
2: –

Engine support set
1: 49 UN30 3050
2: 303–050

Engine lifting bracket
1: 49 L017 5A0
2: –

Support hanger

Caution
•  If the automatic transaxle has been replaced, perform TCM configuration. (See TCM CONFIGURATION [CW6A-EL].)
•  If the automatic transaxle has been replaced, perform initial learning. (See INITIAL LEARNING [CW6A-EL].)
•  Performing the following procedures could cause an open circuit in the front ABS wheel-speed sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the front ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.
•  Secure the steering wheel using tape or a cable to prevent the steering shaft from rotating after disconnecting the steering shaft. If the steering wheel rotates after the steering shaft and the steering gear and linkage are disconnected, the internal parts of the clock spring could be damaged.

Removal

1.  When replacing the automatic transaxle, perform TCM configuration. (See TCM CONFIGURATION [CW6A-EL].)

2.  Disconnect the negative battery terminal and wait for 1 min or more. (With Mazda M Hybrid) (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3.  Disconnect the negative battery terminal. (Without Mazda M Hybrid) (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

4.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

5.  Remove the following parts as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

•  Air cleaner cover
•  Air cleaner element
•  Fresh-air duct
•  Air cleaner case
•  Air hose
•  Resonance chamber

6.  Remove the battery. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

7.  Remove the battery tray and PCM component as a single unit. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

8.  Remove the front deflector. (See DEFLECTOR REMOVAL/INSTALLATION.)

9.  Remove the front splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION.)

10.  Disconnect the electric AT oil pump connector. (With i-stop)

am3zzw00027307

11.  Disconnect the control valve body connector.

am3zzw00030873

Caution
•  Make sure that your hand does not touch the terminal as the connector terminal could be damaged.
•  Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.

12.  Disconnect the ground cable.

am3zzw00030874

13.  Disconnect the selector cable from the transaxle. (See SELECTOR CABLE REMOVAL/INSTALLATION [(E)].)

14.  Remove the selector cable bracket.

am3zzw00027310

15.  Remove the bracket from the transaxle and the exhaust manifold.

am3zzw00027311

16.  Disconnect the breather hose from the transaxle.

am3zzw00030875

17.  Remove the joint cover. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)

18.  Disconnect the intermediate shaft from the steering gear and linkage. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)

19.  Remove the front tires. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

20.  Remove the tunnel cover. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

21.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

22.  Remove the front under cover No.1. (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)

23.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

24.  Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [CW6A-EL].)

25.  Remove the oil cooler and water hose component as a single unit. (Except automatic transaxle replacement) (See OIL COOLER REMOVAL/INSTALLATION [CW6A-EL].)

26.  Remove the water hose component. (Automatic transaxle replacement) (See OIL COOLER REMOVAL/INSTALLATION [CW6A-EL].)

27.  Remove the lower radiator hose component. (See RADIATOR REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See COOLANT CONTROL VALVE REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

28.  Remove the bolts and set the wiring harness and wiring harness bracket in a place which does not interfere with servicing.

am3zzw00030876

29.  Remove the starter. (See STARTER REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

30.  Remove the blind cover.

am3zzw00024730

31.  Hold the crankshaft pulley to prevent torque converter from rotating.

ac4ccw00002081

32.  Remove the torque converter installation nuts from the starter installation hole.

am3zzw00024731

33.  Remove the service hole cover.

am3zzw00027314

34.  Disconnect the tie-rod ends from the steering knuckles. (See TIE-ROD END REPLACEMENT.)

35.  Disconnect the front lower arm ball joints from the steering knuckle. (See FRONT LOWER ARM REMOVAL/INSTALLATION [(E)].)

36.  Disconnect the front drive shaft (LH) from the transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION [(E)].)

37.  Disconnect the front drive shaft (RH) from the transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION [(E)].)

38.  Disconnect the ground plate. (With Mazda M Hybrid) (See GROUND PLATE DISCONNECTION/CONNECTION.)

39.  Remove the front crossmember component and No.1 engine mount rubber as a single unit. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION [(E)].)

40.  Remove the No.1 engine mount bracket from the transaxle.

am3zzw00027315

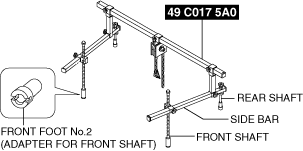

41.  Install the SSTs (49 C017 5A0, 49 UN30 3050, 49 L017 5A0) using the following procedures.

am2zzw00013176

Caution
•  Refer to the SST (49 C017 5A0) instruction manual for the basic handing procedure.
(1)  Install one front foot No.2 to each of the left and right front shafts of the SST (49 C017 5A0).
(2)  Protect the positions shown in the area using tape.
am3zzw00024732
(3)  Remove the coolant reserve tank. (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
(4)  To enable to install the SST, disconnect the clip shown in the figure and set the wiring harness aside.
am3zzw00024733

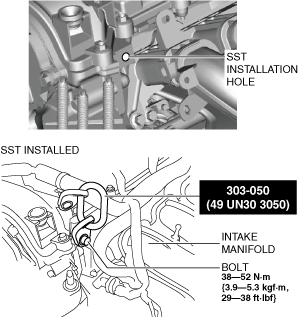

(5)  Install the SST (49 UN30 3050) to the position shown in the figure using the following bolt.
am3zzw00032075
Bolt
Part number 99794 1025 or an M10—1.25, length 25 mm {0.98 in}
(6)  Install the SST (49 UN30 3050) to the position shown in the figure using the following bolt.
am3zzw00032076
Bolt
Part number 99794 1025 or an M10—1.25, length 25 mm {0.98 in}
(7)  Set the rear shafts of the SST (49 C017 5A0) on the left/right front shock absorber nuts (top) as shown in the figure.
am3zzw00022352
(8)  Set the front shafts of the SST (49 C017 5A0) as shown in the figure.
am3zzw00022353
(9)  To prevent interference of the SST with the hose when assembling the SST (49 L017 5A0), disconnect the hose clip from the bracket shown in the figure and set the fuel hose and vacuum hose aside.
am3zzw00024736
(10)  Install the SST (49 L017 5A0) to the SST (49 C017 5A0) as shown in the figure.
am3zzw00027320

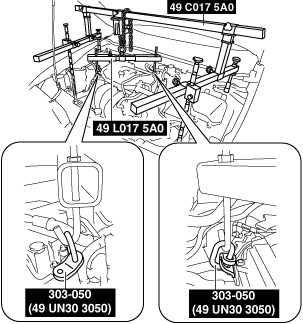

(11)  Install the SST (49 L017 5A0) to the SST (49 UN30 3050) with the hook of the SST (49 L017 5A0) facing outward.
am3zzw00027321
(12)  Adjust the height of the left and right side bars so that they are leveled, then tighten each part of the SST (49 C017 5A0).
(13)  Apply tension to the chain to support the engine and verify that the engine is securely hung.

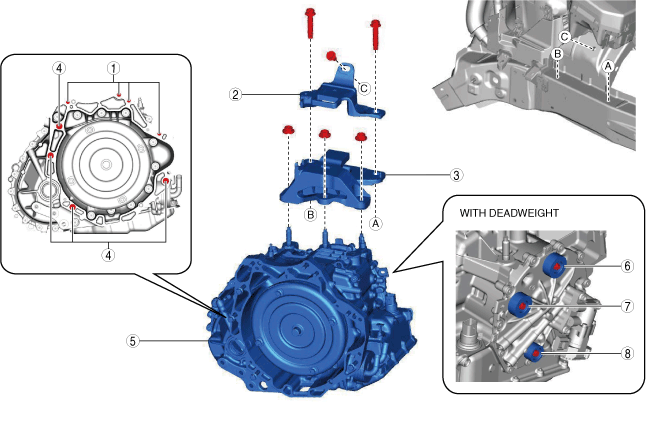

42.  Remove in the order shown in the table.

Warning
•  Improperly jacking a transaxle is dangerous. It can slip off the jack and may cause serious injury.
Caution
•  To prevent the torque converter and transaxle from separating, remove the transaxle without tilting it toward the torque converter.
am3zzw00035198

1
Transaxle mounting bolts (upper side)
2
No.4 engine mount bracket
(See No.4 engine mount rubber and No.4 engine mount bracket removal note.)
3
No.4 engine mount rubber
(See No.4 engine mount rubber and No.4 engine mount bracket removal note.)
4
Transaxle mounting bolts (lower side)
(See Transaxle mounting bolt (lower side) removal note.)
5
Transaxle
(See Transaxle mounting bolt (lower side) removal note.)
6
Deadweight No.1
7
Deadweight No.2
8
Deadweight No.3


No.4 engine mount rubber and No.4 engine mount bracket removal note

Caution
•  Slots have been adopted for the No.4 engine mount rubber and No.4 engine mount bracket installation holes. If the No.4 engine mount rubber and No.4 engine mount bracket deviate from their original positions when they are installed, engine noise or vibration could increase. When installing the No.4 engine mount rubber and No.4 engine mount bracket, align them to the alignment marks placed during removal and install them to their original positions.

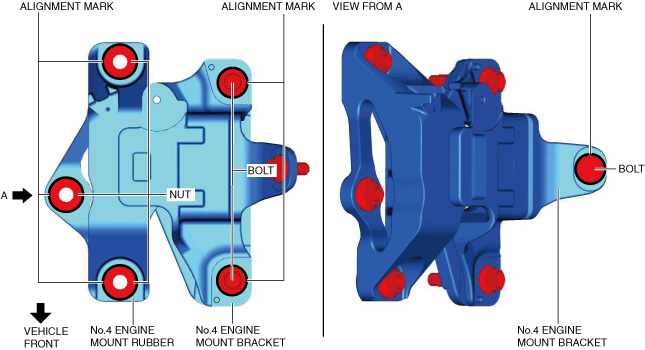

1.  Place alignment marks on the locations shown in the figure so that they can be assembled to the same positions as before removal.

am3zzw00027322

Note
•  Place the alignment marks so that the contour of the nuts and bolts are outlined.

2.  Remove the No.4 engine mount rubber and the No.4 engine mount bracket.


Transaxle mounting bolt (lower side) removal note

Warning
•  Remove the transaxle carefully, holding it steady. If the transaxle falls it could be damaged or cause injury.

1.  Adjust the SST (49 C017 5A0) and lean the engine toward the transaxle.

am3zzw00027320

2.  Support the transaxle on a jack.

am2zzw00009363

3.  Remove the transaxle mounting bolts (lower side).

4.  Remove the transaxle.


Installation

Caution
•  Verify that the torque converter stud bolts are inserted into the drive plate bolt holes, and install the transaxle installation bolts. Otherwise, the drive plate could be damaged.

1.  Install the following parts.(with deadweight)

am3zzw00035199

(1)  Deadweight No.1
(2)  Deadweight No.2
(3)  Deadweight No.3

2.  Verify that the torque converter stud bolts are inserted into the drive plate bolt holes from the starter installation hole.

am3zzw00024737

3.  Install the transaxle mounting bolts.

am3zzw00032077

4.  Tighten the stud bolts for the transaxle.

am3zzw00032078

Note
•  If the No.4 engine mount bracket nut is loosened, tighten the stud bolts for the transaxle because they may be loosened.

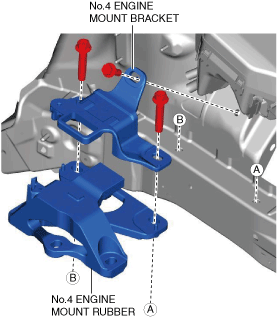

5.  Install the No.4 engine mount bracket and the No.4 engine mount rubber, and temporarily tighten the bolts shown in the figure.

am3zzw00027323

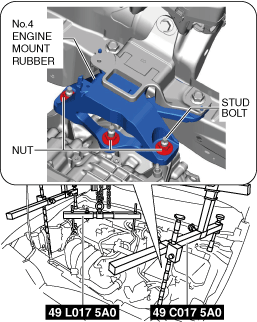

6.  Lift up the transaxle using the SSTs, pass the stud bolt through the No.4 engine mount rubber, and temporarily tighten the No.4 engine mount rubber installation nuts.

am3zzw00030877

7.  Install the No.1 engine mount bracket, and tighten the installation bolts in the order shown in the figure.

am3zzw00032079

8.  Install the front crossmember component and No.1 engine mount rubber as a single unit. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION [(E)].)

9.  Connect the ground plate. (With Mazda M Hybrid) (See GROUND PLATE DISCONNECTION/CONNECTION.)

10.  Temporarily tighten the No.1 engine mount rubber installation bolts.

am3zzw00027325

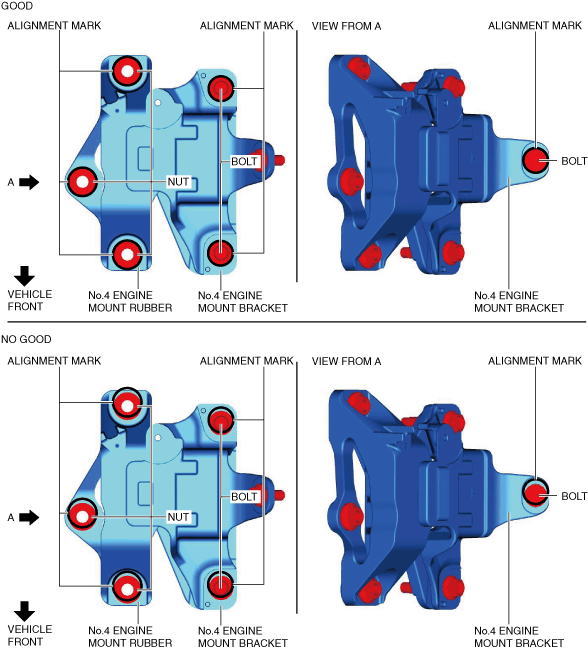

11.  Align the nuts and bolts shown in the figure with the alignment marks.

am3zzw00027326

12.  Tighten the No.4 engine mount rubber installation nuts and the No.4 engine mount bracket installation bolts in the order shown in the figure.

am3zzw00032080

13.  Remove the SSTs (49 C017 5A0).

14.  Tighten the No.1 engine mount rubber installation bolts shown in the figure.

am3zzw00032081

15.  Connect the hose clip to the bracket shown in the figure.

am3zzw00024736

16.  Connect the clip shown in the figure.

am3zzw00024733

17.  Install the coolant reserve tank. (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

18.  Fix the crankshaft pulley to lock the torque converter against rotation.

ac4ccw00002081

19.  Tighten the torque converter installation nuts.

am3zzw00032082

Caution
•  After temporarily tightening the torque converter installation nut uniformly, tighten it to the specified torque.

20.  Install the service hole cover using the following procedure.

(1)  Align the service hole cover so that its arrow is facing the front of the vehicle as shown in the figure.
bfw2za00001168

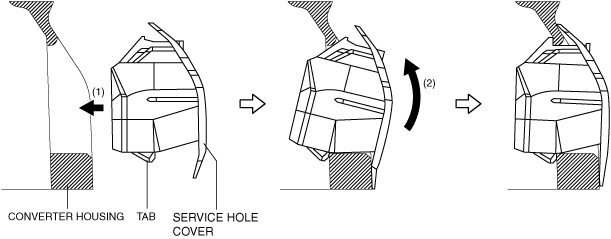

(2)  Move the service hole cover in the direction of arrow (1) shown in the figure and hook the service hole cover tab onto the converter housing.
am3zzw00029586
(3)  Install the service hole cover by pushing it in the direction of arrow (2) shown in the figure using the service hole cover tab as a pivot.
(4)  Verify that the service hole cover is securely installed.

21.  Install the blind cover.

am3zzw00024730

22.  Install the starter. (See STARTER REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

23.  Connect the front drive shaft (RH) to the transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION [(E)].)

24.  Connect the front drive shaft (LH) to the transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION [(E)].)

25.  Connect the front lower arm ball joint to the steering knuckles. (See FRONT LOWER ARM REMOVAL/INSTALLATION [(E)].)

26.  Connect the tie-rod ends to the steering knuckles. (See TIE-ROD END REPLACEMENT.)

27.  Install the wiring harness bracket.

am3zzw00027329

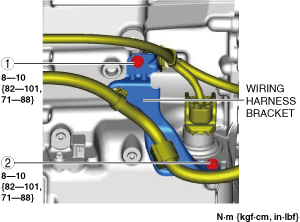

28.  Tighten the wiring harness bracket installation bolts in the order shown in the figure.

am3zzw00030879

29.  Install the lower radiator hose component. (See RADIATOR REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See COOLANT CONTROL VALVE REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

30.  Install the water hose component. (Automatic transaxle replacement) (See OIL COOLER REMOVAL/INSTALLATION [CW6A-EL].)

31.  Install the oil cooler and water hose component as a single unit. (Except automatic transaxle replacement) (See OIL COOLER REMOVAL/INSTALLATION [CW6A-EL].)

32.  Install the tunnel cover. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

33.  Install the front tires. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

34.  Install the intermediate shaft to the steering gear and linkage. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)

35.  Install the joint cover. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)

36.  Connect the breather hose to the transaxle.

am3zzw00030875

37.  Install the bracket to the transaxle and the exhaust manifold using the following procedure.

am3zzw00032083

(1)  Tighten the bolt A.
(2)  Temporarily tighten the bolt B and C.
(3)  Tighten the bolt B.
(4)  Tighten the bolt C.

38.  Install the selector cable bracket.

am3zzw00027332

39.  Connect the selector cable to the transaxle. (See SELECTOR CABLE REMOVAL/INSTALLATION [(E)].)

40.  Connect the ground cable to the No.4 engine mount rubber.

am3zzw00030880

41.  Connect the control valve body connector.

am3zzw00030873

Caution
•  Make sure that your hand does not touch the terminal as the connector terminal could be damaged.
•  Verify that there is no fluid or foreign matter adhering to the connector before connecting the connector.
•  Insert the connector straight as the connector terminal could be damaged.
•  Rotate the connector lever until a click is heard.

42.  Connect the electric AT oil pump connector to the transaxle. (With i-stop)

am3zzw00027307

43.  Install the front splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION.)

44.  Install the front deflector. (See DEFLECTOR REMOVAL/INSTALLATION.)

45.  Install the battery tray and PCM component as a single unit. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

46.  Install the battery. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

47.  Install the following parts as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

•  Air cleaner cover
•  Air cleaner element
•  Fresh-air duct
•  Air cleaner case
•  Air hose
•  Resonance chamber

48.  Install the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

49.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

50.  Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

51.  Add the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [CW6A-EL].)

52.  Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

53.  Install the front under cover No.1. (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)

54.  If the automatic transaxle has been replaced, perform TCM configuration. (See TCM CONFIGURATION [CW6A-EL].)

55.  If the automatic transaxle has been replaced, perform the “Initial Learning”. (See INITIAL LEARNING [CW6A-EL].)

56.  Perform the “Mechanical System Test”. (See MECHANICAL SYSTEM TEST [CW6A-EL].)
