REAR BUMPER BRACKET REMOVAL/INSTALLATION

id091000030100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION [(E)].)

(3)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(4)  Trunk side upper trim (5HB) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(5)  Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

(6)  Rear splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION.)

(7)  Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION.)

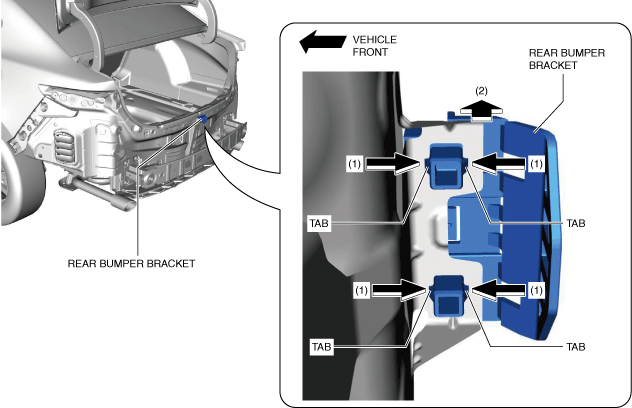

3.  While pressing the rear bumper bracket tabs in the direction of arrows (1) shown in the figure, move the rear bumper bracket in the direction of arrow (2) and detach the rear bumper bracket from the body.

am3zzw00023177

4.  Remove the rear bumper bracket.

5.  Install in the reverse order of removal.

6.  Perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

7.  Perform the rear side radar sensor aiming adjustment. (with rear side radar sensor) (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING.)
