REAR COMBINATION LIGHT REMOVAL/INSTALLATION

id091800801000

Note

•  Fogging or condensation on the inside of the rear combination lights may occur due to a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the combination lights. However, it has no effect on the light performance because the temperature inside the rear combination lights rises after illuminating a rear turn light or a period of time has elapsed.

4SD

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION [(E)].)

(3)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

3.  Partially peel back the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION [(E)].)

4.  Detach the tab inside the cover by pressing area A of the cover in the direction of arrow (1) and creating a gap in area B.

am3zzw00032507

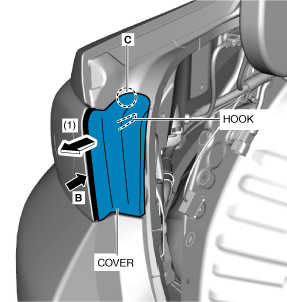

5.  Hold area C, pull it in the direction of arrow (1), and then detach the hook while maintaining the condition in Step 4.

am3zzw00028506

6.  Remove the cover.

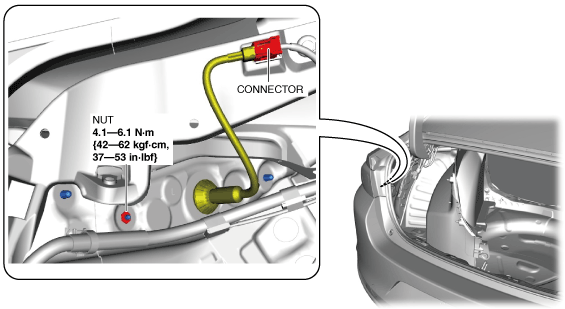

7.  Disconnect the connectors.

am3zzw00027081

8.  Remove the nut.

Caution

•  When removing the rear combination light from the body, it could interfere with the body and cause scratching or damage to the body. When removing the rear combination light from the body, apply protective tape to the body.

9.  To prevent scratches or damage, affix protective tape to the position shown in the figure.

am3zzw00027082

Caution

•  When removing the rear combination light from the body, the grommet could fall off and become lost. When removing the rear combination light from the body, verify that the grommet remains in the body.

10.  Remove the screws.

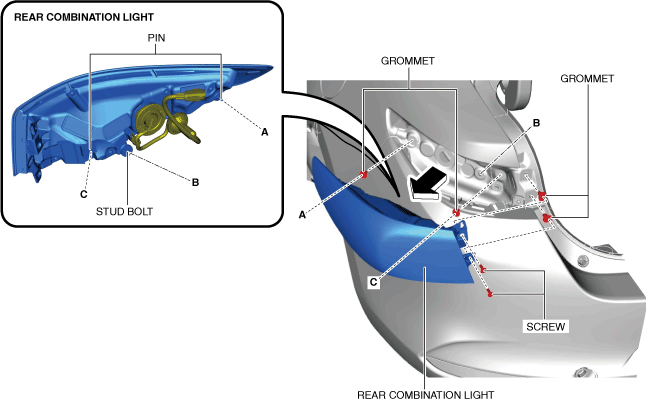

11.  Remove the rear combination light in the direction of the arrow shown in the figure.

am3zzw00032508

12.  Install in the reverse order of removal.

5HB

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION.)

3.  Remove the trunk board. (See TRUNK BOARD REMOVAL/INSTALLATION [(E)].)

4.  Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION.)

5.  Remove the trunk side upper trim. (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

6.  Partially peel back the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION [(E)].)

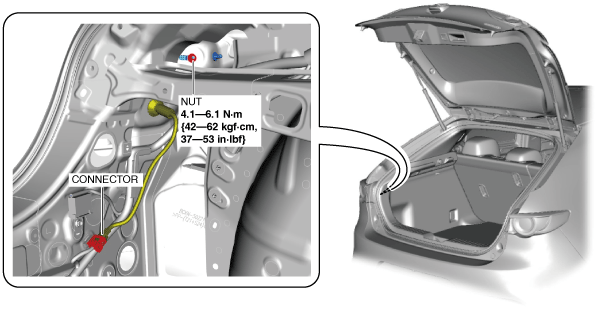

7.  Disconnect the connector.

8.  Remove the nut.

am3zzw00027084

9.  Insert the remover tool into the service hole at the position shown in the figure.

am3zzw00027085

10.  Move the remover tool in the direction of arrow (1) shown in the figure and pull out the service hole cover tab from the rear combination light.

am3zzw00032509

11.  Remove the service hole cover.

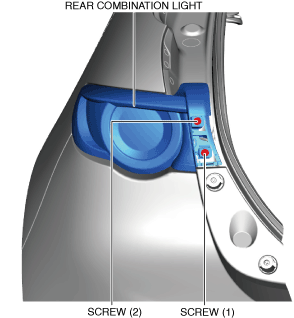

12.  Remove the screws in the order of (1) and (2).

am3zzw00027086

Caution

•  When removing the rear combination light from the body, it could interfere with the body and cause scratching or damage to the body. When removing the rear combination light from the body, apply protective tape to the body.

13.  To prevent scratches or damage, affix protective tape to the position shown in the figure.

am3zzw00027087

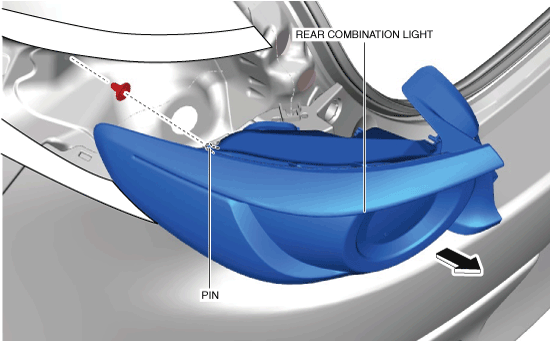

14.  Pull the rear combination light in the direction of the arrow shown in the figure and pull out the pin and the hook from the body.

am3zzw00027088

15.  Remove the grommets.

am3zzw00027089

16.  Install in the reverse order of removal.
