FRONT DOOR GLASS RUN-CHANNEL REMOVAL/INSTALLATION (4SD) [(E)]

id0912007046x2

1.  Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3.  Remove the following parts:

(1)  Front door speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

(2)  Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(3)  Power window main switch (to remove from driver's side) (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

(4)  Power window subswitch (front) (to remove from passenger's side) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

(5)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION [(E)].)

(6)  Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

(7)  Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

(8)  Sail garnish (See SAIL GARNISH REMOVAL/INSTALLATION.)

(9)  Front beltline molding (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION.)

(10)  Front door garnish (See FRONT DOOR GARNISH REMOVAL/INSTALLATION.)

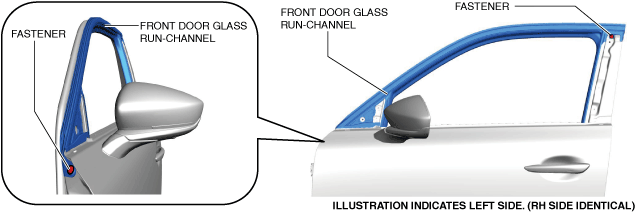

4.  Remove the fastener.

am3zzw00038160

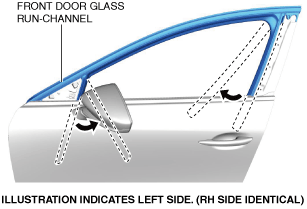

5.  Partially peel back the front door glass run-channel.

am3uuw00015303

6.  Move the front door glass run-channel in the order of arrows (1), (2), and (3) shown in the figure and remove it from the front door hooks.

7.  Remove the front door glass run-channel.

8.  Install in the reverse order of removal.

9.  Perform the power window system initialization procedure. (with auto open/auto close function) (See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE.)
