HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION [(E)]

id0914000067x2

Hood Release Lever

1.  While pulling the hood release lever, insert a remover tool into the position shown in the figure.

am3zzw00028028

2.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure and rotate it in the direction of arrow (1) to detach the hood release lever from the driver’s side lower panel.

Caution

•  Remove the hood release lever while being careful not to damage the hood release cable with the flathead screwdriver.

3.  Disconnect the hood release cable from the hood release lever.

4.  Install in the reverse order of removal.

Hood Release Cable

L.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Front mudguard (Driver's side) (See MUDGUARD REMOVAL/INSTALLATION.)

(2)  Upper face (See UPPER FACE REMOVAL/INSTALLATION [(E)].)

(3)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION [(E)].)

(4)  Front combination light (Driver's side) (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

(5)  Hood releaselever (See Hood Release Lever.)

3.  Disconnect the hood release cable from the hood latch.

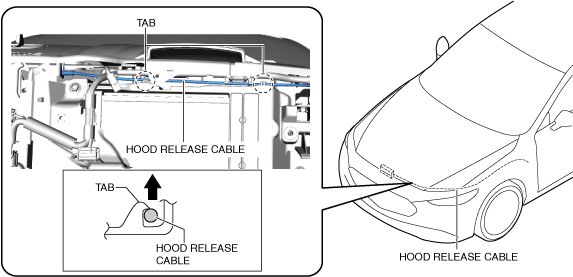

4.  Remove the hood release cable from tabs.

am3zzw00028029

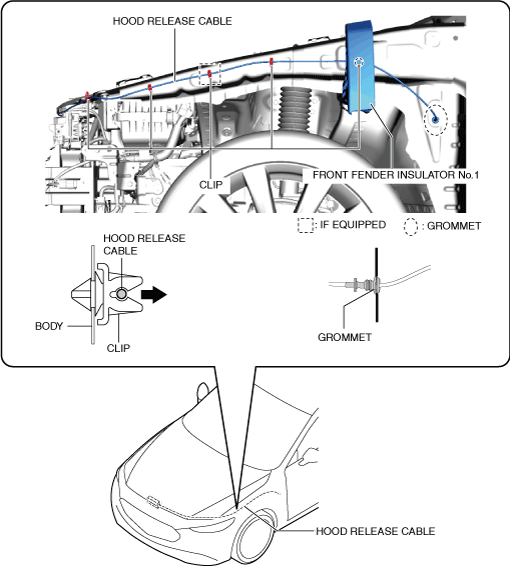

5.  Remove the hood release cable from clips.

am3zzw00028030

6.  Remove the grommet.

7.  Pull out the hood release cable from front fender insulator No.1.

8.  Remove the hood release cable.

9.  Install in the reverse order of removal.

10.  Perform the front radar sensor aiming adjustment. (with front radar sensor) (See FRONT RADAR SENSOR AIMING.)

11.  Perform the front side radar sensor aiming adjustment. (with front side radar sensor) (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING.)

12.  Perform the 360° monitor system aiming. (with 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

R.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Front mudguard (Driver's side) (See MUDGUARD REMOVAL/INSTALLATION.)

(2)  Upper face (See UPPER FACE REMOVAL/INSTALLATION [(E)].)

(3)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION [(E)].)

(4)  Front combination light (Driver's side) (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

(5)  Hood releaselever (See Hood Release Lever.)

3.  Disconnect the hood release cable from the hood latch.

4.  Remove the hood release cable from tabs.

am3zzw00028031

5.  Remove the hood release cable from clips A and B.

am3zzw00028032

6.  Remove the grommet.

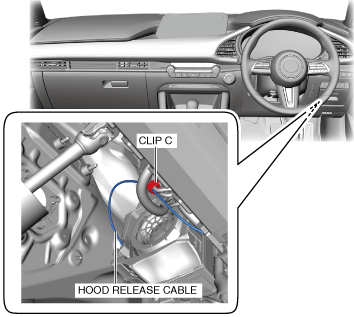

7.  Remove the hood release cable from clips C.

am3zzw00034617

8.  Pull out the hood release cable from front fender insulator No.1.

9.  Remove the hood release cable.

10.  Install in the reverse order of removal.

11.  Perform the front radar sensor aiming adjustment. (with front radar sensor) (See FRONT RADAR SENSOR AIMING.)

12.  Perform the front side radar sensor aiming adjustment. (with front side radar sensor) (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING.)

13.  Perform the 360° monitor system aiming. (with 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)
