FUEL-FILLER LID LOCK ACTUATOR MANUAL RELEASE PROCEDURE [(E)]

id0914007001x2

Note

•  If the fuel-filler lid cannot be opened due to a discharged battery or malfunctions in the electrical system, open the fuel-filler lid using the following procedure.

4SD

1.  Remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION [(E)].)

(3)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

2.  Partially peel the trunk side trim (LH). (See TRUNK SIDE TRIM REMOVAL/INSTALLATION [(E)].)

3.  Remove the trunk side insulator (LH). (See TRUNK SIDE INSULATOR REMOVAL/INSTALLATION.)

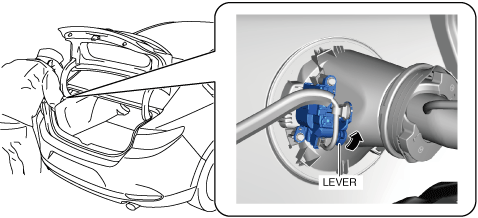

4.  Move the fuel-filler lid actuator lever in the direction of the arrow shown in the figure.

am3zzw00030562

5HB

1.  Remove the following parts:

(1)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(2)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(3)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION [(E)].)

(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(5)  Trunk side upper trim (LH) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

2.  Partially peel the trunk side trim (LH). (See TRUNK SIDE TRIM REMOVAL/INSTALLATION [(E)].)

3.  Remove the trunk side insulator (LH). (See TRUNK SIDE INSULATOR REMOVAL/INSTALLATION.)

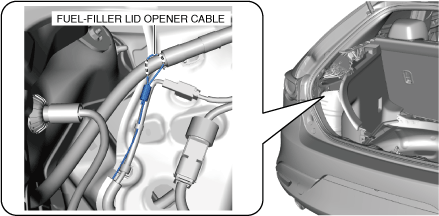

4.  Pull the fuel-filler lid opener cable and open the fuel-filler lid.

am3zzw00022203

5.  Return the fuel-filler lid opener cable to the position shown in the figure.

am3zzw00038329
