PARKING ASSIST UNIT (ULTRASONIC) REMOVAL/INSTALLATION

id092200042000

4SD

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION [(E)].)

(3)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

3.  Pull away the trunk side trim (RH) enough to secure a space for a hand to be inserted between body panel and trunk side trim (RH).(See TRUNK SIDE TRIM REMOVAL/INSTALLATION [(E)].)

4.  Disconnect the connectors.

am3zzw00029845

5.  Remove the wiring harness clip.

6.  Remove the bolts.

7.  Remove the parking assist unit (ultrasonic) and the bracket as a single unit.

8.  Remove the screws.

am3zzw00024586

9.  Remove the parking assist unit (ultrasonic) from the bracket.

10.  Install in the reverse order of removal.

5HB

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION [(E)].)

(3)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(4)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

3.  Pull away the trunk side trim (RH) enough to secure a space for a hand to be inserted between body panel and trunk side trim (RH).(See TRUNK SIDE TRIM REMOVAL/INSTALLATION [(E)].)

4.  Disconnect the connectors.

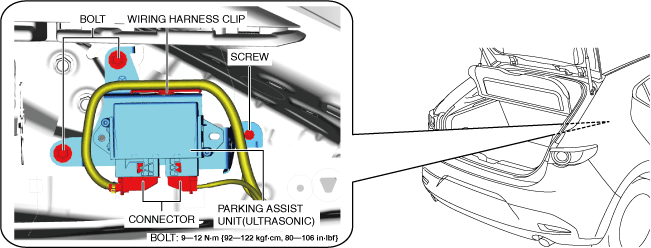

am3zzw00029846

5.  Remove the wiring harness clip.

6.  Remove the screw and bolts.

7.  Remove the parking assist unit (ultrasonic) and the bracket as a single unit.

8.  Remove the screws.

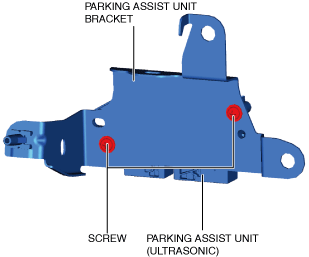

am3zzw00024588

9.  Remove the parking assist unit (ultrasonic) from the bracket.

10.  Install in the reverse order of removal.
