BODY CONTROL MODULE (BCM)

id094000004100


Outline

•  Performs controls of several systems based on input/output signals from switches.

Function

•  The BCM control content is as follows.

Control table

Control

Content

Reference
Advanced keyless entry system
The BCM performs control of the advanced keyless entry system based on the request signal from the LF control unit.
(See ADVANCED KEYLESS ENTRY SYSTEM [(E)].)
Keyless entry system
The BCM performs control of the keyless entry system based on the request signal from the LF control unit.
(See KEYLESS ENTRY SYSTEM [(E)].)
Push button start system
The BCM performs control of the push button start system based on the request signal from the LF control unit.
(See PUSH BUTTON START SYSTEM [ADVANCED KEYLESS ENTRY SYSTEM].)
(See PUSH BUTTON START SYSTEM [KEYLESS ENTRY SYSTEM].)
Immobilizer system
The BCM performs control of the immobilizer system based on the request signal from the LF control unit.
(See IMMOBILIZER SYSTEM [(E)].)
Exterior lighting system
The BCM illuminates/turns off the headlights based on the signal from the light switch .
(See EXTERIOR LIGHTING SYSTEM [(E)].)
Turn light system
The BCM performs control of the turn light system based on the signal from the turn switch.
(See TURN LIGHT SYSTEM [(E)].)
Front map light
The BCM performs control of the front map light based on the signals from the door latch switch and interior light switch.
(See FRONT MAP LIGHT.)
Rear map light
The BCM performs control of the rear map light based on the signals from the door latch switch and interior light switch.
(See REAR MAP LIGHT.)
Coming home light system
The BCM performs control of the coming home light system based on the signals from the light switch and the door light switch.
(See COMING HOME LIGHT.)
Leaving home light system
The BCM performs control of the leaving home light system based on the signals from the light switch and the remote transmitter.
(See LEAVING HOME LIGHT.)
Power door and fuel-filler lid lock system
The BCM performs control of the power door and fuel-filler lid lock system based on the signal from the door look link switch.
(See POWER DOOR AND FUEL-FILLER LID LOCK SYSTEM [(E)].)
Liftgate opener system
The BCM performs control of the liftgate opener system based on the signal from the liftgate opener switch.
(See LIFTGATE OPENER SYSTEM [(E)].)
Windshield wiper
The BCM performs control of the windshield wipers based on the signal from the wiper and washer switch.
(See WINDSHIELD WIPER/WASHER SYSTEM.)
Rear wiper and washer system
The BCM performs control of the rear wiper and washer system based on the signal from the wiper and washer switch.
(See REAR WIPER/WASHER SYSTEM.)
Blower system
The BCM performs control of the blower relay based on the request signal from the PCM.
(See BLOWER SYSTEM.)
Rear window defogger
The BCM performs control of the rear window defogger relay based on the signal from the climate control unit.
(See REAR WINDOW DEFOGGER/HEATED OUTER MIRROR/WINDSHIELD WIPER DE-ICER.)
Horn
The BCM performs control of the horn relay based on the signal from the horn system.
—
Theft-deterrent system
The BCM controls the theft-deterrent system based on the signals from the door latch switch, liftgate latch switch, hood latch switch, and door lock link switch.
(See THEFT-DETERRENT SYSTEM [(E)].)


Dark current reduction function

•  When a certain period of time elapses after the ignition is switched OFF, the body control module (BCM) cuts off the power supply input circuit of the CAN communication and the body control module (BCM) and reduces dark current to prevent battery discharge.
•  When the dark current reduction function is operated, the body control module (BCM) sends the following requests.
―  Screen display request (See MULTI-INFORMATION DISPLAY.)
―  Warning sound activation request (See NOTIFICATION AND WARNING SPEAKER.)


Construction

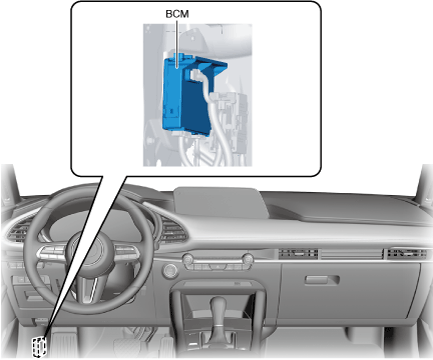

•  The body control module (BCM) is located on the inside of the front side trim (LH).
