GLOW PLUG REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)]

id0113b4804400

EURO4 Emission Level

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)

3.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6) (EURO4 emission level)].)

4.  Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

5.  Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)

6.  Remove the cowl panel. (See COWL PANEL REMOVAL/INSTALLATION.)

7.  Remove in the order indicated in the table.

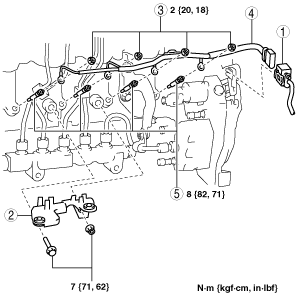

am3zzw00007742

1	Glow plug cord connector
2	Glow plug cord stay
3	Glow plug nuts
4	Glow plug cord
5	Glow plug

8.  Install in the reverse order of removal.

EURO5 Emission Level

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)

3.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6) (EURO5 emission level)] .)

4.  Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

5.  Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)

6.  Remove the cowl panel. (See COWL PANEL REMOVAL/INSTALLATION.)

7.  Set the components shown in the figure out of the way.

am2zzw00006396

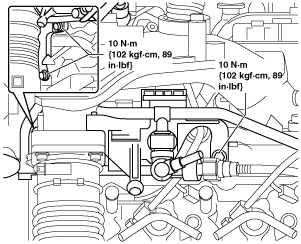

8.  Set the components shown in the figure out of the way.

am2zzw00006397

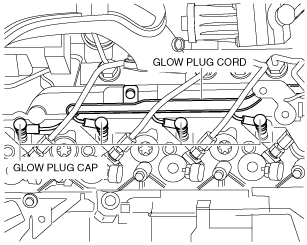

9.  Remove the glow plug cord and glow plug cap.

am2zzw00006398

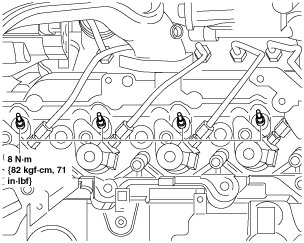

10.  Remove the glow plug.

am2zzw00006399

11.  Install in the reverse order of removal.
