FUEL SYSTEM LOCATION INDEX [LF, L5]

id0114a7800100

Engine Compartment Side

am3zzw00006380

1	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [LF, L5].) (See FUEL INJECTOR INSPECTION [LF, L5].)
2	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [LF, L5].)
3	Fuel pump relay (See RELAY INSPECTION.)

Fuel Tank Side

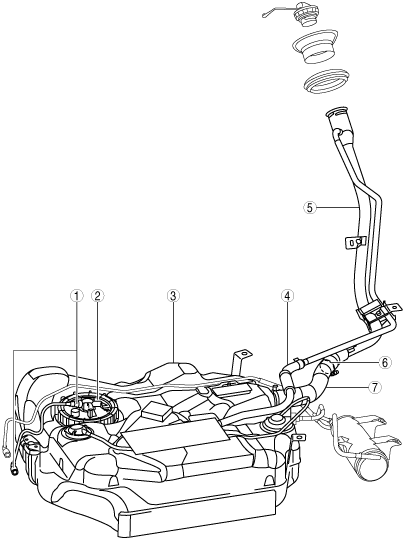

LF (Fuel filter (high-pressure) is a built-in type in fuel pump unit)

am3zzw00007752

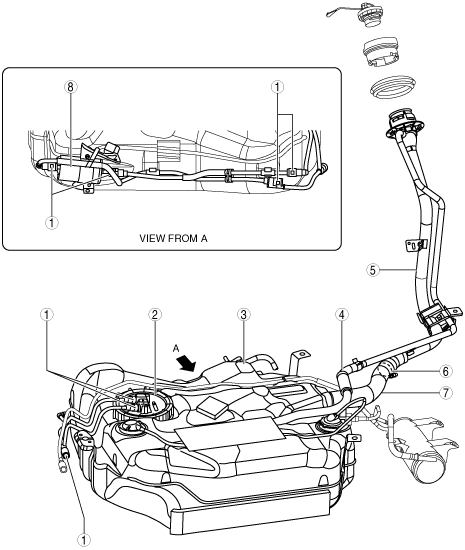

LF (Fuel filter (high-pressure) is not a built-in type in fuel pump unit)

am3zzw00007753

L5

am3zzw00007754

1	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [LF, L5].)
2	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION [LF, L5].) (See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY [LF, L5].) (See FUEL PUMP UNIT INSPECTION [LF, L5].)
3	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [LF, L5].) (See FUEL TANK INSPECTION [LF, L5].)
4	Breather hose (See FUEL TANK REMOVAL/INSTALLATION [LF, L5].)
5	Fuel-filler pipe (See FUEL TANK REMOVAL/INSTALLATION [LF, L5].)
6	Nonreturn valve (See FUEL TANK REMOVAL/INSTALLATION [LF, L5].) (See NONRETURN VALVE INSPECTION [LF, L5].)
7	Joint hose (See FUEL TANK REMOVAL/INSTALLATION [LF, L5].)
8	Fuel filter (high-pressure) (See FUEL FILTER (HIGH-PRESSURE) REMOVAL/INSTALLATION [LF, L5].)
