FUEL SYSTEM LOCATION INDEX [MZR-CD 2.2]

id0114f2800100

Engine Compartment Side

L.H.D.

am3zzw00005543

1	Fuel filter (See FUEL FILTER COMPONENT REMOVAL/INSTALLATION [MZR-CD 2.2]) (See FUEL FILTER COMPONENT DISASSEMBLY/ASSEMBLY [MZR-CD 2.2]) (See FUEL FILTER WATER DRAINING [MZR-CD 2.2].)
2	Fuel warmer (with fuel warmer) (See FUEL WARMER INSPECTION [MZR-CD 2.2])
3	Priming pump (See AFTER SERVICE PRECAUTION [MZR-CD 2.2].)
4	Sedimentor switch (See FUEL FILTER COMPONENT DISASSEMBLY/ASSEMBLY [MZR-CD 2.2].) (See SEDIMENTOR SWITCH INSPECTION [MZR-CD 2.2].)
5	Supply pump (See SUPPLY PUMP REMOVAL/INSTALLATION [MZR-CD 2.2]) (See SUPPLY PUMP INSPECTION [MZR-CD 2.2])
6	Suction control valve (See SUCTION CONTROL VALVE INSPECTION [MZR-CD 2.2])
7	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [MZR-CD 2.2]) (See FUEL INJECTOR INSPECTION [MZR-CD 2.2])
8	Common rail (See COMMON RAIL REMOVAL/INSTALLATION [MZR-CD 2.2].) (See COMMON RAIL INSPECTION [MZR-CD 2.2])

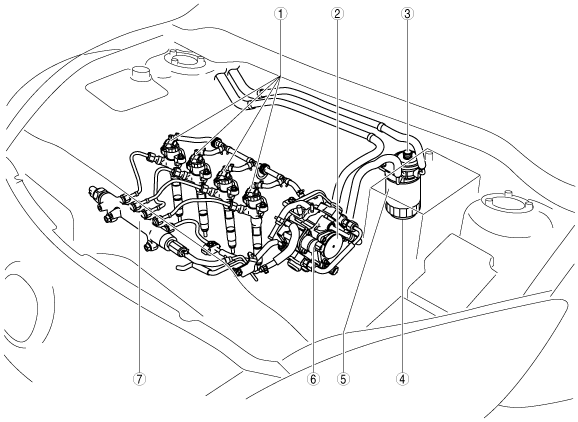

R.H.D.

am3zzw00005544

1	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [MZR-CD 2.2]) (See FUEL INJECTOR INSPECTION [MZR-CD 2.2])
2	Supply pump (See SUPPLY PUMP REMOVAL/INSTALLATION [MZR-CD 2.2]) (See SUPPLY PUMP INSPECTION [MZR-CD 2.2])
3	Priming pump (See AFTER SERVICE PRECAUTION [MZR-CD 2.2].)
4	Sedimentor switch (See FUEL FILTER COMPONENT DISASSEMBLY/ASSEMBLY [MZR-CD 2.2].) (See SEDIMENTOR SWITCH INSPECTION [MZR-CD 2.2].)
5	Fuel filter (See FUEL FILTER COMPONENT REMOVAL/INSTALLATION [MZR-CD 2.2]) (See FUEL FILTER COMPONENT DISASSEMBLY/ASSEMBLY [MZR-CD 2.2]) (See FUEL FILTER WATER DRAINING [MZR-CD 2.2].)
6	Suction control valve (See SUCTION CONTROL VALVE INSPECTION [MZR-CD 2.2])
7	Common rail (See COMMON RAIL REMOVAL/INSTALLATION [MZR-CD 2.2].) (See COMMON RAIL INSPECTION [MZR-CD 2.2])

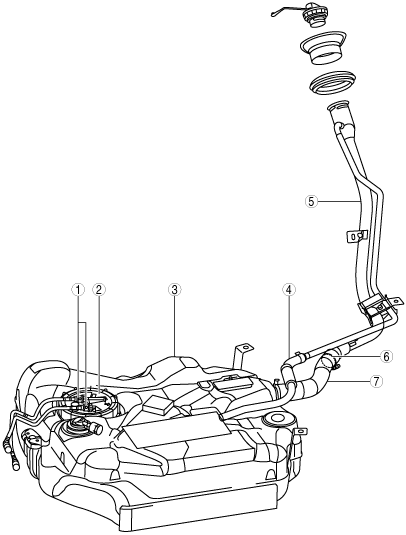

Fuel Tank Side

am3zzw00005545

1	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [MZR-CD 2.2].)
2	Fuel gauge sender unit (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION.)
3	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [MZR-CD 2.2]) (See FUEL TANK INSPECTION [MZR-CD 2.2])
4	Breather hose (See FUEL TANK REMOVAL/INSTALLATION [MZR-CD 2.2])
5	Fuel-filler pipe (See FUEL TANK REMOVAL/INSTALLATION [MZR-CD 2.2])
6	Nonreturn valve (See NONRETURN VALVE INSPECTION [MZR-CD 2.2].)
7	Joint hose (See FUEL TANK REMOVAL/INSTALLATION [MZR-CD 2.2])
