DTC C0061:01/C0061:28/C0061:64/C0063:01/C0063:28/C0063:64/C006A:01/C006A:16/C006A:17 [DYNAMIC STABILITY CONTROL (DSC)]

• Only vehicles with combined sensor.

Applied VIN (assumed):

European (L.H.D. U.K.) specs.

• JMZ BL12F60# 100001—181415

• JMZ BL12F70# 100001—181415

• JMZ BL12Y20# 100001—181415

• JMZ BL12Z20# 100001—181415

• JMZ BL12Z50# 100001—181415

• JMZ BL14F60# 100001—181415

• JMZ BL14F70# 100001—181415

• JMZ BL14Y20# 100001—181415

• JMZ BL14Z20# 100001—181415

• JMZ BL14Z50# 100001—181415

• JMZ BLA2A60# 100001—181415

• JMZ BLA2C60# 100001—181415

• JMZ BLA2F70# 100001—181415

• JMZ BLA2G60# 100001—181415

• JMZ BLA2Y60# 100001—181415

• JMZ BLA2Z20# 100001—181415

• JMZ BLA2Z50# 100001—181415

• JMZ BLA4360# 100001—181415

• JMZ BLA4A60# 100001—181415

• JMZ BLA4C60# 100001—181415

• JMZ BLA4F70# 100001—181415

• JMZ BLA4G60# 100001—181415

• JMZ BLA4Y60# 100001—181415

• JMZ BLA4Z20# 100001—181415

• JMZ BLA4Z50# 100001—181415

Australian specs.

• JM0 BL103100 100001—225632

• JM0 BL10C100 100001—225632

• JM0 BL10F100 100001—225632

• JM0 BL10L100 100001—225632

General (R.H.D.) specs.

• JM6 BL1031*0 100001—225632

• JM6 BL1051*0 100001—225632

• JM6 BL10F1*0 100001—225632

• JM6 BL10L1*0 100001—225632

• JM6 BL10Z1*0 100001—225632

General (L.H.D.) specs., Arab Gulf Cooperation Council, China

• JM7 BL04F**# 100001—225632

• JM7 BL04Z**# 100001—225632

• JM7 BL12F**# 100001—225632

• JM7 BL12Z**# 100001—225632

• JM7 BL14F**# 100001—225632

• JM7 BL14Z**# 100001—225632

• JM7 BL22F**# 100001—225632

• JM7 BL22Z**# 100001—225632

• JM7 BL24F**# 100001—225632

• JM7 BL24Z**# 100001—225632

STEP	INSPECTION	ACTION
1	INSPECT COMBINED SENSOR POWER SUPPLY FOR OPEN CIRCUIT • Switch the ignition to off. • Measure the voltage between the combined sensor terminal A and body ground. • Is the voltage B+?	Yes	Go to the next step.
No	Repair or replace the wiring harness, then go to Step 4.
2	INSPECT COMBINED SENSOR GROUND FOR OPEN CIRCUIT • Switch the ignition to off. • Inspect for continuity between the combined sensor terminal D and body ground. • Is there continuity?	Yes	Go to the next step.
No	Repair or replace the wiring harness, then go to Step 4.
3	INSPECT COMBINED SENSOR • Inspect the combined sensor. (See COMBINED SENSOR INSPECTION.) • Is the combined sensor normal?	Yes	Go to the next step.
No	Replace the combined sensor, then go to the next step. (See COMBINED SENSOR REMOVAL/INSTALLATION.)
4	VERIFY THAT THE SAME DTC IS NOT PRESENT • Clear the DTCs from the memory. (See ON-BOARD DIAGNOSIS [DYNAMIC STABILITY CONTROL (DSC)].) • Start the engine and drive the vehicle at 10 km/h {6.2 mph} or more. • Are the same DTCs present?	Yes	Repeat the inspection from Step 1. If the malfunction recurs, replace the DSC HU/CM, then go to the next step. (See DSC HU/CM REMOVAL/INSTALLATION.)
No	Go to the next step.
5	VERIFY THAT NO OTHER DTCS ARE PRESENT • Are any other DTCs output?	Yes	Go to the applicable DTC inspection. (See ON-BOARD DIAGNOSIS [DYNAMIC STABILITY CONTROL (DSC)].)
No	DTC troubleshooting completed.

STEP

INSPECTION

ACTION

INSPECT COMBINED SENSOR POWER SUPPLY FOR OPEN CIRCUIT

• Switch the ignition to off.

• Measure the voltage between the combined sensor terminal A and body ground.

• Is the voltage B+?

Yes

Go to the next step.

Repair or replace the wiring harness, then go to Step 4.

INSPECT COMBINED SENSOR GROUND FOR OPEN CIRCUIT

• Switch the ignition to off.

• Inspect for continuity between the combined sensor terminal D and body ground.

• Is there continuity?

Yes

Go to the next step.

Repair or replace the wiring harness, then go to Step 4.

INSPECT COMBINED SENSOR

• Inspect the combined sensor.

(See COMBINED SENSOR INSPECTION.)

• Is the combined sensor normal?

Yes

Go to the next step.

Replace the combined sensor, then go to the next step.

(See COMBINED SENSOR REMOVAL/INSTALLATION.)

VERIFY THAT THE SAME DTC IS NOT PRESENT

• Clear the DTCs from the memory.

(See ON-BOARD DIAGNOSIS [DYNAMIC STABILITY CONTROL (DSC)].)

• Start the engine and drive the vehicle at 10 km/h {6.2 mph} or more.

• Are the same DTCs present?

Yes

Repeat the inspection from Step 1.

If the malfunction recurs, replace the DSC HU/CM, then go to the next step.

(See DSC HU/CM REMOVAL/INSTALLATION.)

Go to the next step.

VERIFY THAT NO OTHER DTCS ARE PRESENT

• Are any other DTCs output?

Yes

Go to the applicable DTC inspection.

(See ON-BOARD DIAGNOSIS [DYNAMIC STABILITY CONTROL (DSC)].)

DTC troubleshooting completed.

DTC	C0061:01, C0061:28, C0061:64, C0063:01, C0063:28, C0063:64, C006A:01, C006A:16, C006A:17		Combined sensor system
DETECTION CONDITION		• C0061:01, C0063:01 ― The voltage value from the combined sensor is not within specification. • C0061:28, C0061:64 ― Out-of-specification signal modulation or lateral-G value is detected from the combined sensor (lateral-G part). • C0063:28, C0063:64 ― Out-of-specification signal modulation or yaw rate value is detected from the combined sensor (yaw rate part). • C006A:01, C006A:16, C006A:17 ― An error is detected for the voltage to the combined sensor.

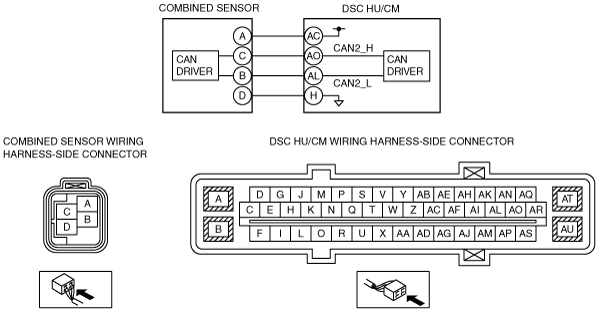

POSSIBLE CAUSE		• Open or short circuit in the wiring harness between DSC HU/CM terminal AC and combined sensor terminal A • Open or short circuit in the wiring harness between DSC HU/CM terminal H and combined sensor terminal D • Combined sensor malfunction • Poor connection at connectors (female terminal)
