VACUUM PUMP REMOVAL/INSTALLATION [MZR-CD 2.2]

id0411008036g1

3. Perform the following procedures:

(1) Complete the “BEFORE SERVICE PRECAUTION”. (See BEFORE SERVICE PRECAUTION [MZR-CD 2.2].)

(2) Drain the engine oil. (See ENGINE OIL REPLACEMENT [MZR-CD 2.2].)

(3) Disconnect the ventilation hose.

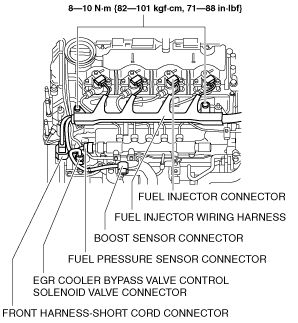

(4) Disconnect the following parts and set the fuel injector wiring harness out of the way.

• Fuel injector connector

• Boost sensor connector

• Fuel pressure sensor connector

• EGR cooler bypass valve control solenoid valve connector

• Front harness-short cord connector

am3zzw00007076

(7) Remove the front wheel and tire. (RH) (See GENERAL PROCEDURES (SUSPENSION).)

(8) Remove the aerodynamic under cover No.2 and splash shield as a single unit. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.) (See SPLASH SHIELD REMOVAL/INSTALLATION.)

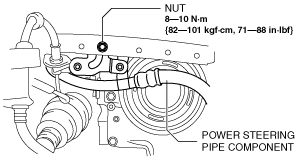

(9) Remove the nut shown in the figure and set the power steering pipe component out of the way.

am3zzw00007077

(12) Remove the fuel filter component with the hose still connected and set it out of the way. (L.H.D.) (See FUEL FILTER COMPONENT REMOVAL/INSTALLATION [MZR-CD 2.2].)

(13) Remove the coolant reserve tank with the hose still connected and set it out of the way. (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [MZR-CD 2.2].)

6. Remove in the order shown in the table.

7. Install in the reverse order of removal.

8. Complete the “AFTER SERVICE PRECAUTION”. (See AFTER SERVICE PRECAUTION [MZR-CD 2.2].)

10. Start the engine. And inspect and adjust the following:

• Leakage of engine oil and fuel.

• Runout and contact of pulley and belt.

• Verify the idle speed. (See ENGINE TUNE-UP [MZR-CD 2.2].)

am3zzw00005754

1

Vacuum hose

2

Bolt

3

Vacuum pump

(See Vacuum Pump Installation Note.)

4

O-ring

Vacuum Pump Installation Note

1. Be careful O-ring is not pinched when installing the vacuum pump.

1	Vacuum hose
2	Bolt
3	Vacuum pump (See Vacuum Pump Installation Note.)
4	O-ring
