DSC HU/CM INSPECTION
id041500801100
1. Disconnect the DSC HU/CM connector. (See DSC HU/CM REMOVAL/INSTALLATION.)
2. Connect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [ZY, Z6].) (See BATTERY REMOVAL/INSTALLATION [LF, L5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [L3 Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)

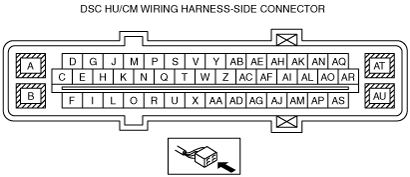

3. Attach the tester lead to the DSC HU/CM wiring harness-side connector and inspect voltage, continuity, or resistance according to the standard (reference) on the table.
Standard (Reference)
am3uuw00002731
|
|
Terminal |
Signal name |
Connected to |
Measured item |
Measured terminal (measurement condition) |
Standard |
Inspection item(s) |
|---|---|---|---|---|---|---|
|
A
|
—
|
—
|
—
|
—
|
—
|
—
|
|
B
|
Ground
|
Ground point
|
Continuity
|
B—ground point
|
Continuity detected
|
• Wiring harness (B—ground point)
|
|
C
|
—
|
—
|
—
|
—
|
—
|
—
|
|
D
|
—
|
—
|
—
|
—
|
—
|
—
|
|
E
|
—
|
—
|
—
|
—
|
—
|
—
|
|
F
|
LF wheel-speed sensor (-)
|
LF wheel-speed sensor
|
Continuity
|
F—LF ABS wheel-speed sensor terminal B
|
Continuity detected
|
• Wiring harness (F—LF ABS wheel-speed sensor terminal B)
|
|
G
|
—
|
—
|
—
|
—
|
—
|
—
|
|
H
|
Sensor ground*1
|
Combined sensor
|
Continuity
|
H—combined sensor terminal D
|
Continuity detected
|
• Wiring harness (H—combined sensor terminal D)
|
|
I
|
LF wheel-speed sensor (+)
|
LF ABS wheel-speed sensor
|
Continuity
|
I—LF ABS wheel-speed sensor terminal A
|
Continuity detected
|
• Wiring harness (I—LF ABS wheel-speed sensor terminal A)
|
|
J
|
CAN_L
|
DLC-2 (CAN_L)
|
This terminal is used for communication and cannot be used for malfunction determination during terminal voltage inspection. Perform a DTC inspection.
|
|||
|
K
|
—
|
—
|
—
|
—
|
—
|
—
|
|
L
|
—
|
—
|
—
|
—
|
—
|
—
|
|
M
|
CAN_H
|
DLC-2 (CAN_H)
|
This terminal is used for communication and cannot be used for malfunction determination during terminal voltage inspection. Perform a DTC inspection.
|
|||
|
N
|
—
|
—
|
—
|
—
|
—
|
—
|
|
O
|
RR wheel-speed (+)
|
RR ABS wheel-speed sensor
|
Continuity
|
O—RR ABS wheel-speed sensor terminal A
|
Continuity detected
|
• Wiring harness (O—RR ABS wheel-speed sensor terminal A)
|
|
P
|
—
|
—
|
—
|
—
|
—
|
—
|
|
Q
|
—
|
—
|
—
|
—
|
—
|
—
|
|
R
|
RR wheel-speed (-)
|
RR ABS wheel-speed sensor
|
Continuity
|
R—RR ABS wheel-speed sensor terminal B
|
Continuity detected
|
• Wiring harness (R—RR ABS wheel-speed sensor terminal B)
|
|
S
|
—
|
—
|
—
|
—
|
—
|
—
|
|
T
|
—
|
—
|
—
|
—
|
—
|
—
|
|
U
|
—
|
—
|
—
|
—
|
—
|
—
|
|
V
|
—
|
—
|
—
|
—
|
—
|
—
|
|
W
|
—
|
—
|
—
|
—
|
—
|
—
|
|
X
|
—
|
—
|
—
|
—
|
—
|
—
|
|
Y
|
Power supply (system)
|
Ignition switch or IG1 relay
|
Voltage
|
Switch the ignition to ON.
|
B+
|
• Wiring harness (Y—ignition switch or IG1 relay)
|
|
Switch the ignition to off.
|
1 V or less
|
|||||
|
Z
|
—
|
—
|
—
|
—
|
—
|
—
|
|
AA
|
—
|
—
|
—
|
—
|
—
|
—
|
|
AB
|
—
|
—
|
—
|
—
|
—
|
—
|
|
AC
|
Sensor power supply*1
|
Combined sensor
|
Continuity
|
AC—combined sensor terminal A
|
Continuity detected
|
• Wiring harness (AC—combined sensor terminal A)
|
|
AD
|
—
|
—
|
—
|
—
|
—
|
—
|
|
AE
|
—
|
—
|
—
|
—
|
—
|
—
|
|
AF
|
—
|
—
|
—
|
—
|
—
|
—
|
|
AG
|
LR wheel-speed (-)
|
LR wheel-speed sensor
|
Continuity
|
AG—LR ABS wheel-speed sensor terminal B
|
Continuity detected
|
• Wiring harness (AG—LR ABS wheel-speed sensor terminal B)
|
|
AH
|
—
|
—
|
—
|
—
|
—
|
—
|
|
AI
|
—
|
—
|
—
|
—
|
—
|
—
|
|
AJ
|
LR wheel-speed (+)
|
LR ABS wheel-speed sensor
|
Continuity
|
AJ—LR ABS wheel-speed sensor terminal A
|
Continuity detected
|
• Wiring harness (AJ—LR ABS wheel-speed sensor terminal A)
|
|
AK
|
DSC OFF switch
|
DSC OFF switch
|
Continuity
|
AK—DSC OFF switch terminal B (L.H.D) or H (R.H.D.)
|
Continuity detected
|
• Wiring harness (AK—DSC OFF switch terminal B (L.H.D) or H (R.H.D.))
|
|
AL
|
CAN2_L
|
Combined sensor*1
|
Continuity
|
AL—combined sensor terminal B
|
Continuity detected
|
• Wiring harness (AL—combined sensor terminal B)
|
|
SAS control module*2
|
This terminal is used for communication and cannot be used for malfunction determination during terminal voltage inspection. Perform a DTC inspection.
|
|||||
|
AM
|
—
|
—
|
—
|
—
|
—
|
—
|
|
AN
|
—
|
—
|
—
|
—
|
—
|
—
|
|
AO
|
CAN2_H
|
Combined sensor*1
|
Continuity
|
AO—combined sensor terminal C
|
Continuity detected
|
• Wiring harness (AO—combined sensor terminal C)
|
|
SAS control module*2
|
This terminal is used for communication and cannot be used for malfunction determination during terminal voltage inspection. Perform a DTC inspection.
|
|||||
|
AP
|
RF wheel-speed (+)
|
RF ABS wheel-speed sensor
|
Continuity
|
AP—RF ABS wheel-speed sensor terminal A
|
Continuity detected
|
• Wiring harness (AP—RF ABS wheel-speed sensor terminal A)
|
|
AQ
|
—
|
—
|
—
|
—
|
—
|
—
|
|
AR
|
—
|
—
|
—
|
—
|
—
|
—
|
|
AS
|
RF wheel-speed (-)
|
RF ABS wheel-speed sensor
|
Continuity
|
AS—RF ABS wheel-speed sensor terminal B
|
Continuity detected
|
• Wiring harness (AS—RF ABS wheel-speed sensor terminal B)
|
|
AT
|
Power supply
(ABS motor operation)
|
Battery (except MZR 2.0 DISI i-stop) or main battery (MZR 2.0 DISI i-stop)
|
Voltage
|
Under any condition
|
B+
|
• Wiring harness (AT—battery or main battery)
|
|
AU
|
Power supply
(solenoid operation)
|
Battery*3 or main battery*4
|
Voltage
|
Under any condition
|
B+
|
• Wiring harness (AU—battery*3 or main battery*4)
|
