DSC LOCATION INDEX

id041500802100

Note

•  Vehicles with combined sensor: Applied VIN (assumed)

European (L.H.D. U.K.) specs.

•  JMZ BL12F60# 100001—181415

•  JMZ BL12F70# 100001—181415

•  JMZ BL12Y20# 100001—181415

•  JMZ BL12Z20# 100001—181415

•  JMZ BL12Z50# 100001—181415

•  JMZ BL14F60# 100001—181415

•  JMZ BL14F70# 100001—181415

•  JMZ BL14Y20# 100001—181415

•  JMZ BL14Z20# 100001—181415

•  JMZ BL14Z50# 100001—181415

•  JMZ BLA2A60# 100001—181415

•  JMZ BLA2C60# 100001—181415

•  JMZ BLA2F70# 100001—181415

•  JMZ BLA2G60# 100001—181415

•  JMZ BLA2Y60# 100001—181415

•  JMZ BLA2Z20# 100001—181415

•  JMZ BLA2Z50# 100001—181415

•  JMZ BLA4360# 100001—181415

•  JMZ BLA4A60# 100001—181415

•  JMZ BLA4C60# 100001—181415

•  JMZ BLA4F70# 100001—181415

•  JMZ BLA4G60# 100001—181415

•  JMZ BLA4Y60# 100001—181415

•  JMZ BLA4Z20# 100001—181415

•  JMZ BLA4Z50# 100001—181415

Australian specs.

•  JM0 BL103100 100001—225632

•  JM0 BL10C100 100001—225632

•  JM0 BL10F100 100001—225632

•  JM0 BL10L100 100001—225632

General (R.H.D.) specs.

•  JM6 BL1031*0 100001—225632

•  JM6 BL1051*0 100001—225632

•  JM6 BL10F1*0 100001—225632

•  JM6 BL10L1*0 100001—225632

•  JM6 BL10Z1*0 100001—225632

General (L.H.D.) specs., Arab Gulf Cooperation Council, China

•  JM7 BL04F**# 100001—225632

•  JM7 BL04Z**# 100001—225632

•  JM7 BL12F**# 100001—225632

•  JM7 BL12Z**# 100001—225632

•  JM7 BL14F**# 100001—225632

•  JM7 BL14Z**# 100001—225632

•  JM7 BL22F**# 100001—225632

•  JM7 BL22Z**# 100001—225632

•  JM7 BL24F**# 100001—225632

•  JM7 BL24Z**# 100001—225632

L.H.D.

am3zzw00006076

1	Combined sensor (Vehicles with combined sensor) (See COMBINED SENSOR REMOVAL/INSTALLATION.) (See COMBINED SENSOR INSPECTION.) (See DSC SENSOR INITIALIZATION PROCEDURE.)
2	DSC OFF switch (See DSC OFF SWITCH REMOVAL/INSTALLATION.) (See DSC OFF SWITCH INSPECTION.)
3	Rear ABS wheel-speed sensor (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See REAR ABS WHEEL-SPEED SENSOR INSPECTION.)
4	Front ABS wheel-speed sensor (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See FRONT ABS WHEEL-SPEED SENSOR INSPECTION.)
5	DSC HU/CM (See DSC HU/CM REMOVAL/INSTALLATION.) (See DSC HU/CM INSPECTION.)
6	Brake fluid pressure sensor (Built into DSC HU/CM) (See BRAKE FLUID PRESSURE SENSOR INSPECTION.) (See DSC SENSOR INITIALIZATION PROCEDURE.)

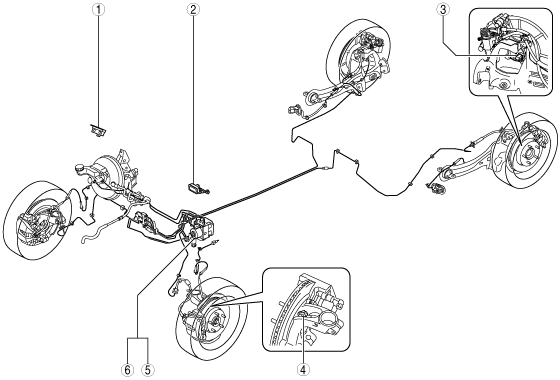

R.H.D.

am3zzw00006077

1	DSC OFF switch (See DSC OFF SWITCH REMOVAL/INSTALLATION.) (See DSC OFF SWITCH INSPECTION.)
2	Combined sensor (Vehicles with combined sensor) (See COMBINED SENSOR REMOVAL/INSTALLATION.) (See COMBINED SENSOR INSPECTION.) (See DSC SENSOR INITIALIZATION PROCEDURE.)
3	Rear ABS wheel-speed sensor (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See REAR ABS WHEEL-SPEED SENSOR INSPECTION.)
4	Front ABS wheel-speed sensor (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See FRONT ABS WHEEL-SPEED SENSOR INSPECTION.)
5	DSC HU/CM (See DSC HU/CM REMOVAL/INSTALLATION.) (See DSC HU/CM INSPECTION.)
6	Brake fluid pressure sensor (Built into DSC HU/CM) (See BRAKE FLUID PRESSURE SENSOR INSPECTION.) (See DSC SENSOR INITIALIZATION PROCEDURE.)
