AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FN4A-EL]

id051701294100

Caution
•  Secure the steering wheel using tape or a cable to prevent the steering shaft from rotating after disconnecting the steering shaft. If the steering wheel rotates after the steering shaft and the steering gear and linkage are disconnected, the internal parts of the clock spring could be damaged.

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [ZY, Z6].)

2.  Disconnect the negative battery cable.

3.  Remove the aerodynamic under cover No. 2. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.)

4.  Remove the front splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION.)

5.  Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [FN4A-EL].)

6.  Disconnect and/or remove the following parts in the engine compartment.

(1)  Remove the battery component (ex: battery and battery tray). (See BATTERY REMOVAL/INSTALLATION [ZY, Z6].)
(2)  Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [ZY, Z6].)
(3)  Disconnect the selector cable from the transaxle.
(4)  Disconnect the connectors and GND wiring harness from the transaxle.
(5)  Remove the bracket from the transaxle.
(6)  Disconnect the oil hoses from the transaxle.
(7)  Remove the filler tube from the transaxle.
(8)  Remove the starter. (See STARTER REMOVAL/INSTALLATION [ZY, Z6].)

7.  Disconnect and/or remove the following parts related to the suspension and axle.

(1)  Remove the front tires. (See GENERAL PROCEDURES (FRONT AND REAR AXLES).)
(2)  Disconnect the ABS wheel-speed sensors from the steering knuckles. (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.)
(3)  Disconnect the clip securing the brake hose (LH) from the shock absorber. (See BRAKE HOSE (FRONT) REMOVAL/INSTALLATION [ZY, Z6, LF, MZR 2.0 DISI i-stop, L5, MZ-CD 1.6 (Y6), MZR-CD 2.2].)
(4)  Disconnect the brake hose (LH) from the shock absorber. (See BRAKE HOSE (FRONT) REMOVAL/INSTALLATION [ZY, Z6, LF, MZR 2.0 DISI i-stop, L5, MZ-CD 1.6 (Y6), MZR-CD 2.2].)
(5)  Disconnect the tie-rod end ball joints from the steering knuckles. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION [ZY, Z6, LF, L3 Turbo, L5, MZ-CD 1.6 (Y6)].)
(6)  Disconnect the front lower arms from the steering knuckles. (See FRONT LOWER ARM REMOVAL/INSTALLATION.)
(7)  Disconnect the stabilizer control links from the shock absorbers. (See FRONT SHOCK ABSORBER AND COIL SPRING REMOVAL/INSTALLATION.)
(8)  Disconnect the drive shaft (LH) from the transaxle. (See DRIVE SHAFT REMOVAL/INSTALLATION.)
(9)  Disconnect the drive shaft (RH) from the joint shaft. (See DRIVE SHAFT REMOVAL/INSTALLATION.)
(10)  Remove the joint shaft. (See JOINT SHAFT REMOVAL/INSTALLATION [ZY, Z6, L3 Turbo, L5].)

8.  Install the SST using the following procedures.

am6xuw00000687

Caution
•  Refer to the SST instruction manual for the basic handing procedure.
(1)  Remove the brake vacuum hose bracket bolt, then set the brake vacuum hose out of the way.
am3zzw00006900
(2)  Set the fuel pipe bracket out of the way to prevent interference with the SST as shown in the figure.
am3zzw00008592

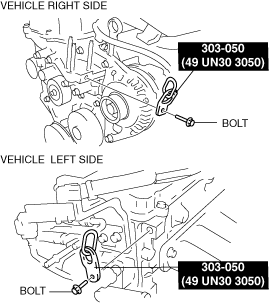

(3)  Using the bolts part number 99794 1025 or M10× 1.25, length 25 mm {0.98 in} to install the SST to the position as shown in the figure.
am2zzw00000190
Tightening torque
38—51 N·m {3.9—5.2 kgf·m, 29—37 ft·lbf}
(4)   Remove the installation bolt for the bracket securing the lower radiator hose.
am3uuw00005082
(5)   Set the bracket securing the lower radiator hose aside to prevent it from interfering with the front shaft of the SST. (right side)
(6)  Set the cooler pipe aside to prevent it from interfering with the front shaft of the SST. (right side)
(7)  As shown in the figure, set the rear shafts of the SST to the left and right shock absorber bolts.
am3zzw00005427

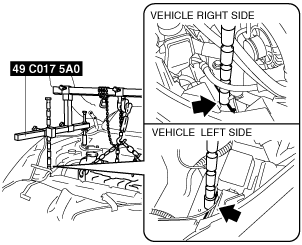

(8)  Install front foot No.2 to the left/right front shaft of the SST, then align the groove of the front shaft of the SST with the folded up part of the vehicle as shown in the figure.
am3zzw00005428

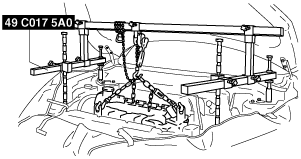

(9)  Adjust the positions of the SST side bars so that they are the same height (left and right) and horizontal. Make sure each joint is securely tightened.
am3zzw00005429
(10)  Apply tension to the chain to secure the engine.

9.  Remove in the order indicated in the table.

am3zzw00007542

1
Torque converter installation nuts
(See Torque Converter Installation Nuts Removal Note.)
2
Transaxle mounting bolts (upper side)
3
Battery tray bracket
(See No.1 Engine Mount and No.4 Engine Mount Installation Note.)
4
No.4 engine mount rubber
(See No.1 Engine Mount and No.4 Engine Mount Installation Note.)
5
No.4 engine mount bracket
(See No.1 Engine Mount and No.4 Engine Mount Installation Note.)
6
No.1 engine mount rubber
(See No.1 Engine Mount and No.4 Engine Mount Installation Note.)
7
No.1 engine mount bracket
(See No.1 Engine Mount and No.4 Engine Mount Installation Note.)
8
Transaxle mounting bolts (lower side)
(See Transaxle Mounting Bolts (Lower Side) Removal Note.)
9
Transaxle
(See Transaxle Mounting Bolts (Lower Side) Removal Note.)

Warning
•  Improperly jacking a transaxle is dangerous. It can slip off the jack and may cause serious injury.
Caution
•  To prevent the torque converter and transaxle from separating, remove the transaxle without tilting it toward the torque converter.

10.  Install in the reverse order of removal.

11.  Add ATF to the specified level. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [FN4A-EL].)

12.  Perform the following test according to the service item. (See MECHANICAL SYSTEM TEST [FN4A-EL].)(See ROAD TEST [FN4A-EL].)

Service item

Test item

Line pressure test

Stall test

Time lag test

Road test
ATX replacement
×



ATX overhaul
×
×
×
×
Torque converter replacement
×
×


Oil pump replacement
×



Clutch system replacement
×

×
×

×  :Test to be performed after the service work


Torque Converter Installation Nuts Removal Note

1.  Using the flathead screwdriver, lock the drive plate.

2.  Remove the torque converter nuts from the starter installation hole.

adejjw00001363


Transaxle Mounting Bolts (Lower Side) Removal Note

1.  Adjust the SST (49 C017 5A0) and lean the engine toward the transaxle.

am3zzw00005429

2.  Support the transaxle on a jack.

3.  Remove the transaxle mounting bolts (lower side).

4.  Remove the transaxle.

aaxjjw00000122


No.1 Engine Mount and No.4 Engine Mount Installation Note

1.  Install the No.4 engine mount bracket to the transaxle case, and then tighten the nuts.

am3zzw00007392

Tightening torque
61—76 N·m {6.3—7.7 kgf·m, 45—56 ft·lbf}

2.  Install the No.1 engine mount bracket to the converter housing, and then tighten the bolts.

am3uuw00002623

Tightening torque
44—61 N·m {4.5—6.2 kgf·m, 33—44 ft·lbf}

3.  Install the No.1 engine mount rubber to the front crossmember, and then temporarily tighten the bolts.

am3uuw00002624

Caution
•  Tighten the bolts while being careful of their length to prevent interference between the steering gear housing and bolt.
Bolt stem length
Front crossmember side: 62mm {2.4 in}
No.1 engine mount bracket side: 65mm {2.6 in}

4.  Align the No.4 engine mount rubber installation hole to the stud bolts on the body.

am3zzw00007393

5.  Install the No.4 engine mount rubber to the No.4 engine mount bracket, and then tighten the bolt.

Tightening torque
94—152 N·m {9.6—15 kgf·m, 70—112 ft·lbf}

6.  Tighten the No.1 engine mount rubber installation bolts in the order shown.

am3uuw00002626

Tightening torque
73—90 N·m {7.5—9.1 kgf·m, 54—66 ft·lbf}

7.  Align the battery tray bracket installation hole to the stud bolts on the body.

am3zzw00007543

8.  Install the battery tray bracket to the No.4 engine mount rubber, and then tighten the nuts.

Tightening torque
44—61 N·m {4.5—6.2 kgf·m, 33—44 ft·lbf}

9.  Remove the SST (49 C017 5A0).
