DTC U0001, U0001:00, U0001:88, U0073, U0073:00, U1900, U2516 [MULTIPLEX COMMUNICATION SYSTEM (R.H.D. (EXCEPT MZR-CD 2.2, MZR 2.0 DISI i-stop, ZY))]

DTC	U0001	CAN system communication error
DETECTION CONDITION	Warning • Perform the following on-board diagnosis according to FOREWORD [MULTIPLEX COMMUNICATION SYSTEM (R.H.D. (EXCEPT MZR-CD 2.2, MZR 2.0 DISI i-stop, ZY))] troubleshooting procedure. • CAN system-related harness malfunction • CAN system-related module malfunction

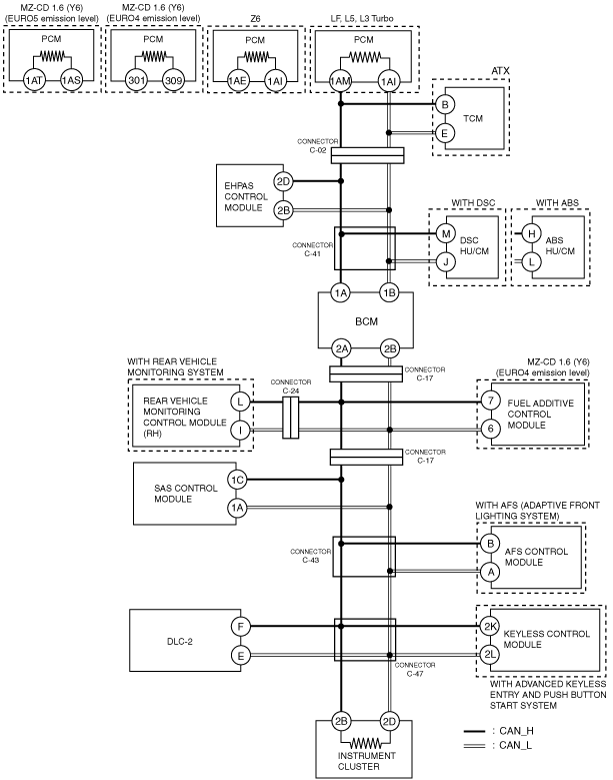

POSSIBLE CAUSE	• Open or short circuit in wiring harness • Malfunction of connectors between PCM, TCM, EHPAS control module, DSC HU/CM (with DSC), ABS HU/CM (with ABS), BCM, rear vehicle monitoring control module (RH), fuel additive control module, SAS control module, AFS control module, keyless control module and instrument cluster • PCM malfunction • TCM malfunction • EHPAS control module malfunction • DSC HU/CM malfunction (with DSC) • ABS HU/CM malfunction (with ABS) • BCM malfunction • Rear vehicle monitoring control module (RH) malfunction • Fuel additive control module malfunction • SAS control module malfunction • AFS control module malfunction • Keyless control module malfunction • Instrument cluster malfunction

DTC

U0001

CAN system communication error

U0001:00

U0001:88

U0073

U0073:00

U1900

U2516

DETECTION CONDITION

Warning

• Perform the following on-board diagnosis according to FOREWORD [MULTIPLEX COMMUNICATION SYSTEM (R.H.D. (EXCEPT MZR-CD 2.2, MZR 2.0 DISI i-stop, ZY))] troubleshooting procedure.

• CAN system-related harness malfunction

• CAN system-related module malfunction

POSSIBLE CAUSE

• Open or short circuit in wiring harness

• Malfunction of connectors between PCM, TCM, EHPAS control module, DSC HU/CM (with DSC), ABS HU/CM (with ABS), BCM, rear vehicle monitoring control module (RH), fuel additive control module, SAS control module, AFS control module, keyless control module and instrument cluster

• PCM malfunction

• TCM malfunction

• EHPAS control module malfunction

• DSC HU/CM malfunction (with DSC)

• ABS HU/CM malfunction (with ABS)

• BCM malfunction

• Rear vehicle monitoring control module (RH) malfunction

• Fuel additive control module malfunction

• SAS control module malfunction

• AFS control module malfunction

• Keyless control module malfunction

• Instrument cluster malfunction

Step	Inspection	Action
1	VERIFICATION BEFORE SERVICING • Are any DTCs, except the following, displayed? ― U0001 ― U0001:00 ― U0001:88 ― U0073 ― U0073:00 ― U1900 ― U2516	Yes	Determine the open circuit location referring to DETERMINING MALFUNCTIONING PART (HS-CAN) [MULTIPLEX COMMUNICATION SYSTEM (R.H.D. (EXCEPT MZR-CD 2.2, MZR 2.0 DISI i-stop, ZY))].
No	Go to the next step.
2	INSPECTION OF CONTROL MODULE CONNECTOR OUTPUTTING DTCs • Inspect the terminal condition of the control module connector outputting DTCs and the mid-connector. • Are the connector terminals normal without damage, deformation, corrosion, or disconnection?	Yes	Go to the next step.
No	Repair or replace the connector, then go to Step 9.
3	INSPECTION OF POWER SUPPLY OF CONTROL MODULE OUTPUTTING DTCs • Refer to the terminal voltage table of the control module outputting DTCs or use the PID/data monitoring function to inspect the terminal voltage and fuse condition. • Is the power supply voltage normal?	Yes	Go to the next step.
No	Repair or replace the connector, then go to Step 9.
4	INSPECTION OF BODY GROUND CONDITION OF CONTROL MODULE OUTPUTTING DTCs • Inspect the body ground wires and ground point of the control module outputting DTCs. • Are the ground and ground point normal?	Yes	Go to the next step.
No	Repair or replace the connector, then go to Step 9.
5	CAN SYSTEM RELATED WIRING HARNESS INSPECTION • CAN system related wiring harness inspection: ― Short to ground ― Short to power supply ― Short between twisted pair wiring harness ― Open circuit • Is the wiring harness normal?	Yes	Go to the next step.
No	Repair or replace the connector, then go to Step 9.
6	INSPECT PCM • Disconnect the PCM connector. • Measure the resistance between the following PCM connector terminals: ― Between terminal 1AM and terminal 1AI (part side) (LF, L5, L3 Turbo) ― Between terminal 1AE and terminal 1AI (part side) (ZY, Z6) ― Between terminal 301 and terminal 309 (part side) (MZ-CD 1.6 (Y6) (EURO4 emission level)) ― Between terminal 1AT and terminal 1AS (part side) (MZ-CD 1.6 (Y6) (EURO5 emission level)) • Is the resistance 118-130 ohms?	Yes	Go to the next step.
No	Replace the PCM, then go to Step 9. (See PCM REMOVAL/INSTALLATION [LF, L5].) (See PCM REMOVAL/INSTALLATION [L3 Turbo].) (See PCM REMOVAL/INSTALLATION [ZY, Z6].) (See PCM REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6) (EURO4 emission level)].) (See PCM REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6) (EURO5 emission level)].)
7	INSPECT INSTRUMENT CLUSTER • Disconnect the instrument cluster connector. • Measure the resistance between the following instrument cluster connector terminals: ― Between terminal 2B and terminal 2D (part side) • Is the resistance 118-130 ohms?	Yes	Go to the next step.
No	Replace the instrument cluster, then go to Step 9. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)
8	CAN RELATED MODULE VERIFICATION • Remove only one of the CAN-related modules. • Clear DTCs using the M-MDS. • Inspect the DTCs of all modules using the M-MDS. • Are DTCs U0001, U0001:00, U0001:88, U0073, U0073:00, U1900, U2516 displayed?	Yes	Reinstall the removed module, remove another module and perform the same inspection. Inspect all of the CAN-related modules using the same procedure. After inspecting all of the modules, go to the next step.
No	Replace the removed module.
9	AFTER REPAIR VERIFICATION • Connect all of the modules. • Clear DTCs using the M-MDS. • Inspect the DTCs using the M-MDS. • Are DTCs displayed?	Yes	Perform the CAN system on-board diagnosis again according to the troubleshooting procedure (See FOREWORD [MULTIPLEX COMMUNICATION SYSTEM (R.H.D. (EXCEPT MZR-CD 2.2, MZR 2.0 DISI i-stop, ZY))].)
No	DTC troubleshooting completed.

Step

Inspection

Action

VERIFICATION BEFORE SERVICING

• Are any DTCs, except the following, displayed?

― U0001

― U0001:00

― U0001:88

― U0073

― U0073:00

― U1900

― U2516

Yes

Determine the open circuit location referring to DETERMINING MALFUNCTIONING PART (HS-CAN) [MULTIPLEX COMMUNICATION SYSTEM (R.H.D. (EXCEPT MZR-CD 2.2, MZR 2.0 DISI i-stop, ZY))].

Go to the next step.

INSPECTION OF CONTROL MODULE CONNECTOR OUTPUTTING DTCs

• Inspect the terminal condition of the control module connector outputting DTCs and the mid-connector.

• Are the connector terminals normal without damage, deformation, corrosion, or disconnection?

Yes

Go to the next step.

Repair or replace the connector, then go to Step 9.

INSPECTION OF POWER SUPPLY OF CONTROL MODULE OUTPUTTING DTCs

• Refer to the terminal voltage table of the control module outputting DTCs or use the PID/data monitoring function to inspect the terminal voltage and fuse condition.

• Is the power supply voltage normal?

Yes

Go to the next step.

Repair or replace the connector, then go to Step 9.

INSPECTION OF BODY GROUND CONDITION OF CONTROL MODULE OUTPUTTING DTCs

• Inspect the body ground wires and ground point of the control module outputting DTCs.

• Are the ground and ground point normal?

Yes

Go to the next step.

Repair or replace the connector, then go to Step 9.

CAN SYSTEM RELATED WIRING HARNESS INSPECTION

• CAN system related wiring harness inspection:

― Short to ground

― Short to power supply

― Short between twisted pair wiring harness

― Open circuit

• Is the wiring harness normal?

Yes

Go to the next step.

Repair or replace the connector, then go to Step 9.

INSPECT PCM

• Disconnect the PCM connector.

• Measure the resistance between the following PCM connector terminals:

― Between terminal 1AM and terminal 1AI (part side) (LF, L5, L3 Turbo)

― Between terminal 1AE and terminal 1AI (part side) (ZY, Z6)

― Between terminal 301 and terminal 309 (part side) (MZ-CD 1.6 (Y6) (EURO4 emission level))

― Between terminal 1AT and terminal 1AS (part side) (MZ-CD 1.6 (Y6) (EURO5 emission level))

• Is the resistance 118-130 ohms?

Yes

Go to the next step.

Replace the PCM, then go to Step 9.

(See PCM REMOVAL/INSTALLATION [LF, L5].)

(See PCM REMOVAL/INSTALLATION [L3 Turbo].)

(See PCM REMOVAL/INSTALLATION [ZY, Z6].)

(See PCM REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6) (EURO4 emission level)].)

(See PCM REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6) (EURO5 emission level)].)

INSPECT INSTRUMENT CLUSTER

• Disconnect the instrument cluster connector.

• Measure the resistance between the following instrument cluster connector terminals:

― Between terminal 2B and terminal 2D (part side)

• Is the resistance 118-130 ohms?

Yes

Go to the next step.

Replace the instrument cluster, then go to Step 9.

(See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

CAN RELATED MODULE VERIFICATION

• Remove only one of the CAN-related modules.

• Clear DTCs using the M-MDS.

• Inspect the DTCs of all modules using the M-MDS.

• Are DTCs U0001, U0001:00, U0001:88, U0073, U0073:00, U1900, U2516 displayed?

Yes

Reinstall the removed module, remove another module and perform the same inspection. Inspect all of the CAN-related modules using the same procedure. After inspecting all of the modules, go to the next step.

Replace the removed module.

AFTER REPAIR VERIFICATION

• Connect all of the modules.

• Clear DTCs using the M-MDS.

• Inspect the DTCs using the M-MDS.

• Are DTCs displayed?

Yes

Perform the CAN system on-board diagnosis again according to the troubleshooting procedure

(See FOREWORD [MULTIPLEX COMMUNICATION SYSTEM (R.H.D. (EXCEPT MZR-CD 2.2, MZR 2.0 DISI i-stop, ZY))].)

DTC troubleshooting completed.
