SHROUD PANEL REMOVAL/INSTALLATION

id091000801900

Caution

•  Because the shroud panel is installed to the bumper reinforcement, support the shroud panel using a jack before removing the bumper reinforcement so as not to apply excessive force to the shroud panel.

•  Since the servicing is performed with the bonnet open, secure the bonnet using a piece of wood to prevent it from falling.

Type A

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)

(2)  Front combination lights (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.) (See HEADLIGHT AIMING.)

(3)  Front energy-absorbing form (See ENERGY-ABSORBING FORM REMOVAL/INSTALLATION.)

(4)  Bumper stiffener lower (See BUMPER STIFFENER LOWER REMOVAL/INSTALLATION.)

(5)  Front bumper reinforcement (See FRONT BUMPER REINFORCEMENT REMOVAL/INSTALLATION.)

3.  Disconnect the bonnet latch cable. (See BONNET RELEASE CABLE REMOVAL/INSTALLATION)

4.  Remove the bolts.

am3zzw00007861

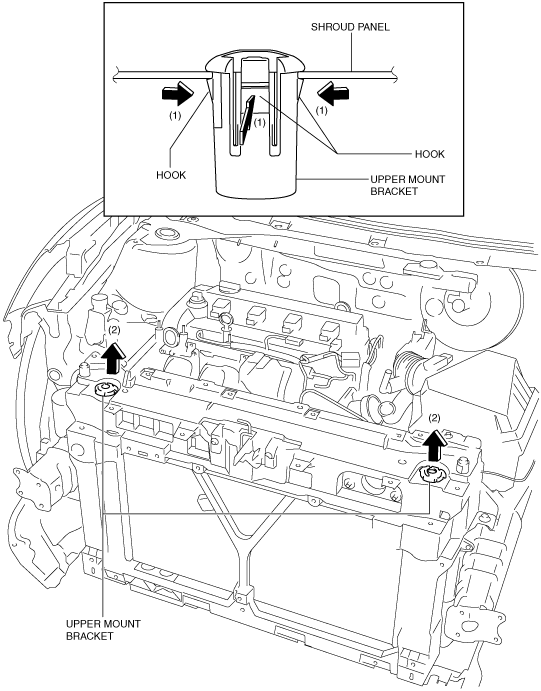

5.  Push the hooks in the direction of arrow (1), and remove the upper mount bracket in the direction of the arrow (2).

am3uuw00003911

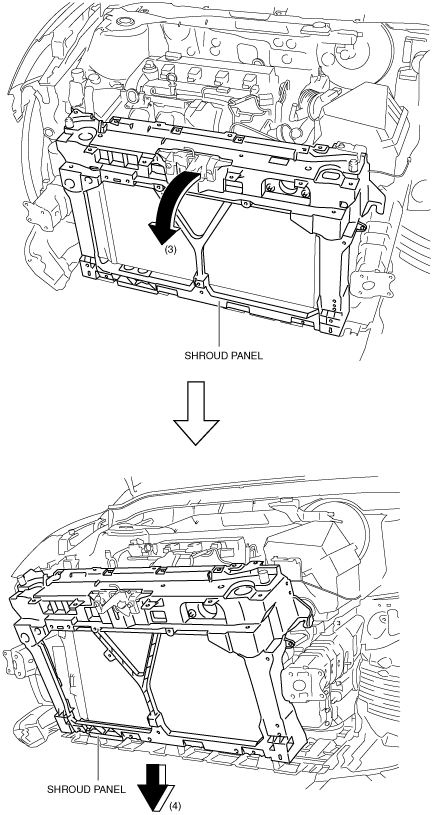

6.  Pull the shroud panel in the direction of arrow (3) in the figure, and remove it in the direction of arrow (4).

am3uuw00003912

Caution

•  Support the lower surface of the radiator with a floor jack to prevent the radiator from falling off after the shroud panel is removed.

7.  Install in the reverse order of removal.

Type B

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)

(2)  Front combination lights (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.) (See HEADLIGHT AIMING.)

(3)  Seal plate (See SEAL PLATE REMOVAL/INSTALLATION.)

(4)  Front bumper reinforcement (See FRONT BUMPER REINFORCEMENT REMOVAL/INSTALLATION.)

3.  Disconnect the bonnet latch cable. (See BONNET RELEASE CABLE REMOVAL/INSTALLATION)

4.  Remove the bolts.

am3zzw00007861

5.  Push the hooks in the direction of arrow (1), and remove the upper mount bracket in the direction of the arrow (2).

am3uuw00003911

6.  Pull the shroud panel in the direction of arrow (3) in the figure, and remove it in the direction of arrow (4).

am3uuw00003912

Caution

•  Support the lower surface of the radiator with a floor jack to prevent the radiator from falling off after the shroud panel is removed.

7.  Install in the reverse order of removal.
