LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION

id091400516900

1.  Disconnect the negative battery cable.

2.  Remove the following parts

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

am3uuw00002983

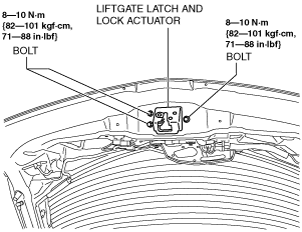

4.  Remove the bolts.

am3uuw00002984

5.  Remove the liftgate latch and lock actuator.

6.  Install in the reverse order of removal.
