TRUNK LID OPENER CABLE REMOVAL/INSTALLATION

id091400620400

L.H.D.

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Front seat (LH)(See FRONT SEAT REMOVAL/INSTALLATION.)

(2)  Front scuff plate (LH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  B-pillar lower trim (LH) (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(5)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(6)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

(7)  Tire house trim (LH) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(8)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(9)  Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(10)  Trunk lid opener lever (See TRUNK LID OPENER LEVER REMOVAL/INSTALLATION.)

3.  Disconnect the trunk lid striker from the trunk lid opener cable.

am3uuw00004369

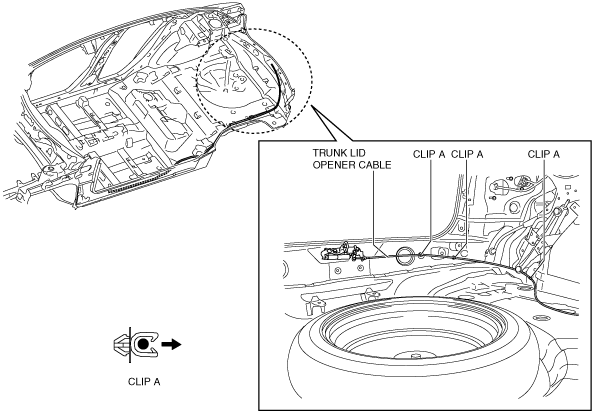

4.  Remove the trunk lid opener cable from clips A.

am3zzw00005222

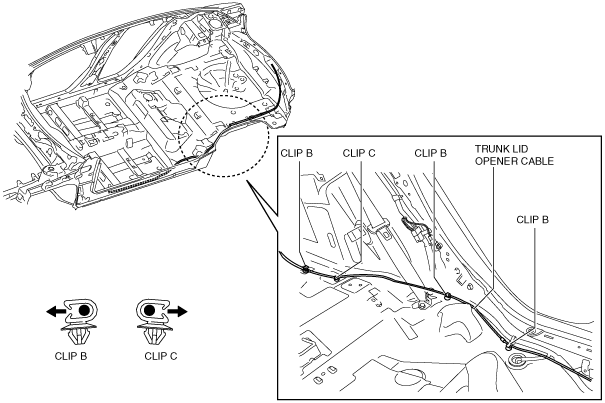

5.  Remove the trunk lid opener cable from clips B and C.

am3uuw00004360

6.  Remove the trunk lid opener cable from clip D.

am3uuw00004370

7.  Install in the reverse order of removal.

R.H.D.

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Front seat (RH)(See FRONT SEAT REMOVAL/INSTALLATION.)

(2)  Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  B-pillar lower trim (RH) (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(5)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(6)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

(7)  Tire house trim (LH) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(8)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(9)  Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(10)  Trunk lid opener lever (See TRUNK LID OPENER LEVER REMOVAL/INSTALLATION.)

3.  Disconnect the trunk lid striker from the trunk lid opener cable.

am3uuw00004369

4.  Remove the trunk lid opener cable from clips A.

am3zzw00005223

5.  Remove the trunk lid opener cable from clips B and C.

am3zzw00005226

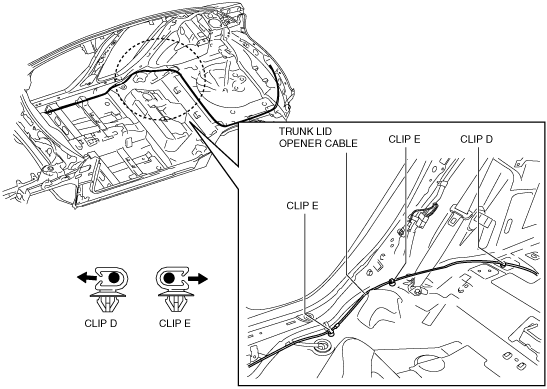

6.  Remove the trunk lid opener cable from clips D and E.

am3zzw00005224

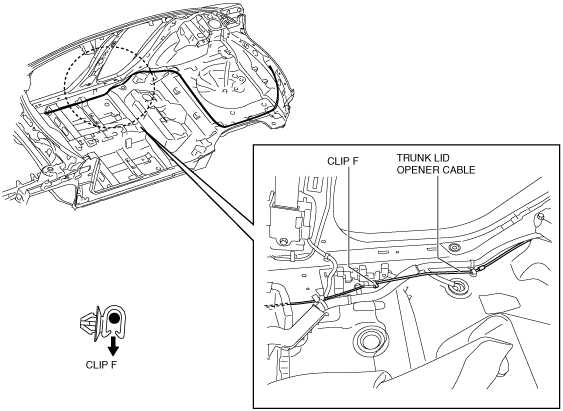

7.  Remove the trunk lid opener cable from clip F.

am3zzw00005225

8.  Install in the reverse order of removal.
