REAR SPOILER REMOVAL/INSTALLATION

id091600801600

4SD

1.  Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION)

2.  Remove the nuts.

am3uuw00003514

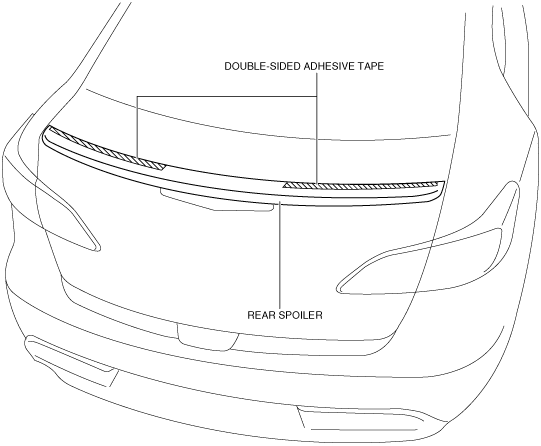

3.  While cutting the double-sided adhesive tape using a flathead screwdriver or a razor, separate the rear spoiler from the trunk lid.

am3uuw00003515

Warning

•  Using a razor with bare hands can cause injury. Always wear gloves when using a razor.

4.  Pull the rear spoiler in the direction of arrow in the order of (1), (2) and (3), then remove the clips from the trunk lid.

am3uuw00003516

5.  Remove the rear spoiler.

6.  Install in the reverse order of removal.

Note

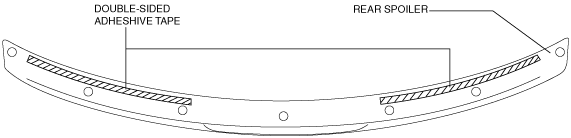

•  Attach double-sided adhesive tape to the rear spoiler as shown in the figure.

am3uuw00003517

5HB (Except MPS)

Removal

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

3.  Remove the caps.

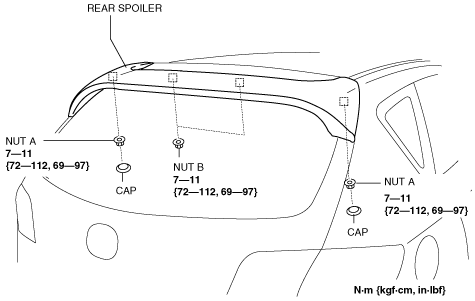

4.  Remove the nut A and B.

am3zzw00010280

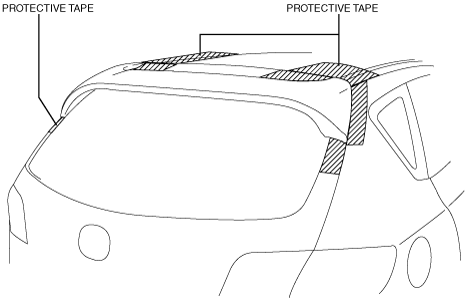

5.  Affix protective tape to the position shown in the figure.

am3zzw00010257

6.  The wiring harness install on the liftgate inner panel with lift gate striker, and the liftgate is fixed while half opened.

am3zzw00010258

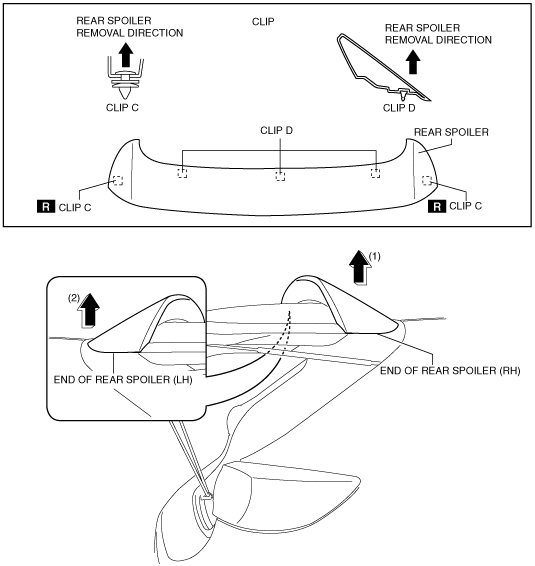

7.  Pull up the end of rear spoiler in the direction of the arrow in the order of (1), (2) and remove the rear spoiler while detaching the clips C and D.

am3zzw00010281

8.  Remove the rear spoiler.

Warning

•  When removing the rear spoiler clips, the liftgate may bounce up by its rebound and cause injury. Remove the rear spoiler clip avoiding the range of movement of the liftgate.

Caution

•  When removing the rear spoiler clips, the rear spoiler may fall off by its rebound and be damaged. Perform the rear spoiler clip removal using two people.

Installation

Warning

•  If the rear spoiler clip installation is performed with the liftgate fully or half opened, the liftgate may accidentally close or bounce up, leading to injury. Perform the rear spoiler clip installation with the liftgate fully closed.

Note

•  To facilitate the procedure after rear spoiler installation, peel the protective tape adhered during removal before installing the rear spoiler.

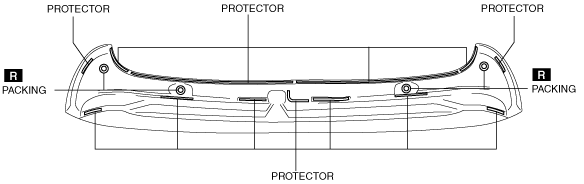

1.  If the rear spoiler is to be reused, perform the following procedure:

(1)  Remove the packing and protector remaining on the rear spoiler after removal.

(2)  Remove any grease and dirt from the packing and protector affixing area.

(3)  Affix packing and protector to the position shown in the figure.

(4)  If the protector is damaged, replace the part that is damaged with a new protector.

am3zzw00010260

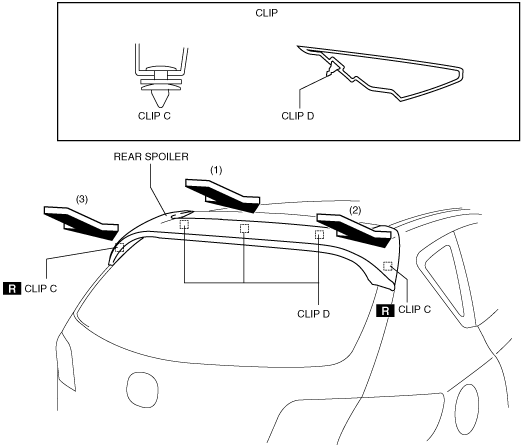

2.  Push the rear spoiler in the direction of the arrow in the order of (1), (2), (3) and install the rear spoiler while install the clips C and D.

am3zzw00010261

3.  Open the liftgate.

4.  Install the nuts A and B.

am3zzw00010280

5.  Install the caps.

6.  Install the following parts:

(1)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

7.  Connect the negative battery cable.

5HB (MPS)

Removal

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

3.  Remove the caps.

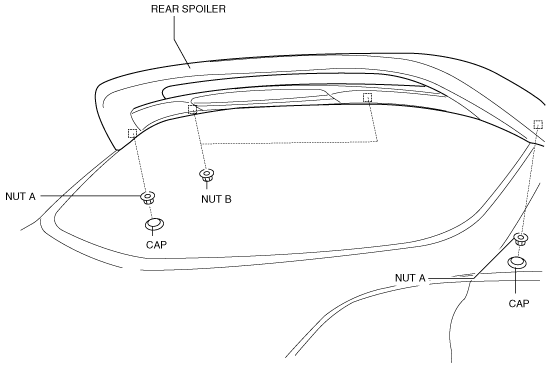

4.  Remove the nut A and B.

am3zzw00010282

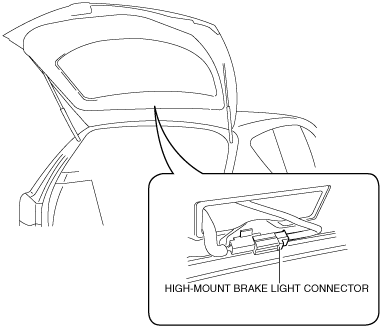

5.  Disconnect the high-mount brake light connector.

am3zzw00010283

6.  Affix protective tape to the position shown in the figure.

am3zzw00010284

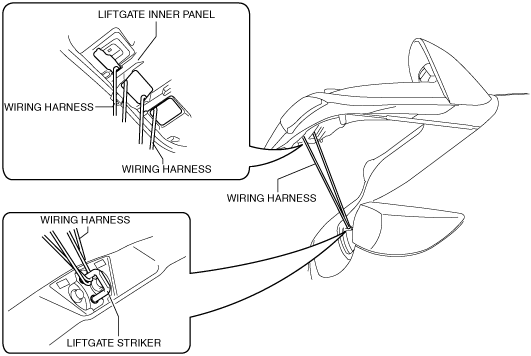

7.  The wiring harness install on the liftgate inner panel with lift gate striker, and the liftgate is fixed while half opened.

am3zzw00010330

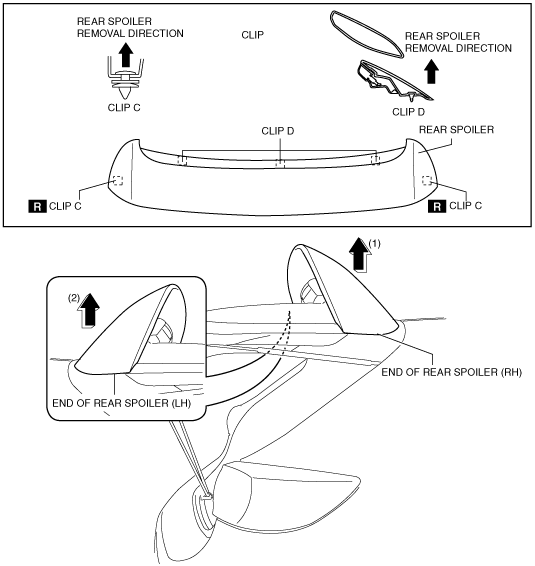

8.  Pull up the end of rear spoiler in the direction of the arrow in the order of (1), (2) and remove the rear spoiler while detaching the clips C and D.

am3zzw00010286

9.  Remove the rear spoiler.

Warning

•  When removing the rear spoiler clips, the liftgate may bounce up by its rebound and cause injury. Remove the rear spoiler clip avoiding the range of movement of the liftgate.

Caution

•  When removing the rear spoiler clips, the rear spoiler may fall off by its rebound and be damaged. Perform the rear spoiler clip removal using two people.

Installation

Warning

•  If the rear spoiler clip installation is performed with the liftgate fully or half opened, the liftgate may accidentally close or bounce up, leading to injury. Perform the rear spoiler clip installation with the liftgate fully closed.

Note

•  To facilitate the procedure after rear spoiler installation, peel the protective tape adhered during removal before installing the rear spoiler.

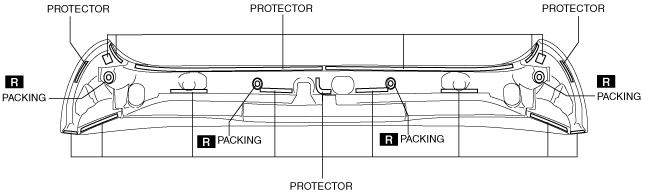

1.  If the rear spoiler is to be reused, perform the following procedure:

(1)  Remove the packing and protector remaining on the rear spoiler after removal.

(2)  Remove any grease and dirt from the packing and protector affixing area.

(3)  Affix packing and protector to the position shown in the figure.

(4)  If the protector is damaged, replace the part that is damaged with a new protector.

am3zzw00010287

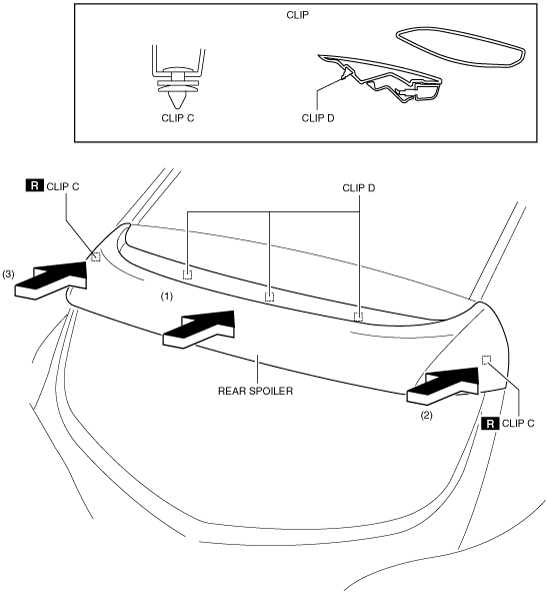

2.  Push the rear spoiler in the direction of the arrow in the order of (1), (2), (3) and install the rear spoiler while install the clips C and D.

am3zzw00010288

3.  Open the liftgate.

4.  Install the nuts A and B.

am3zzw00010289

5.  Install the caps.

6.  Connect the high-mount brake light connector.

am3zzw00010283

7.  Install the following parts:

(1)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

8.  Connect the negative battery cable.
