GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION

id092000801500

VIN:JM0**, JM7**

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(2)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

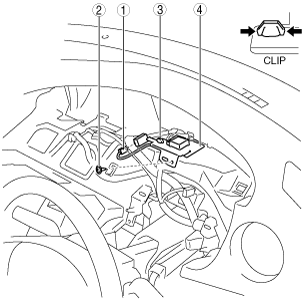

am3zzw00007438

1	Connector
2	Screw
3	Clip
4	GPS antenna

4.  Install in the reverse order of removal.

VIN:JMZ**

4SD

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(2)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(4)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(5)  Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

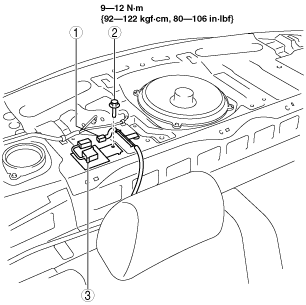

am3zzw00005979

1	Connector
2	Bolt
3	GPS antenna

4.  Install in the reverse order of removal.

5HB

Note

•  GPS antenna is integrated with the center roof antenna.

1.   Refer to CENTER ROOF ANTENNA REMOVAL/INSTALLATION.
