CENTER ROOF ANTENNA REMOVAL/INSTALLATION
id092000801600
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Sunroof seaming welt (vehicles with sunroof)
- (2) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
- (3) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (4) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (5) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
- (6) Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (7) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
- (8) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
- (9) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
- (10) Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
- (11) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
- (12) Map light (See MAP LIGHT REMOVAL/INSTALLATION.)
- (13) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
- (14) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
- (15) Headliner (See HEADLINER REMOVAL/INSTALLATION.)

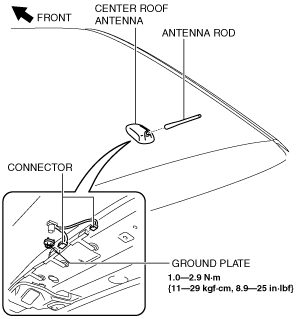

3. Disconnect the connector.
AM/FM type
AM/FM/GPS type
4. Remove the ground plate.
5. Remove the antenna rod.

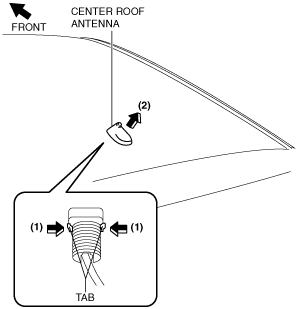

6. Remove the center roof antenna in the direction of the arrow (2) shown in the figure while pressing the center roof antenna tabs in the direction of the arrow (1).
AM/FM type
AM/FM/GPS type
7. Remove the center roof antenna.
8. Install in the reverse order of removal.
9. After installation, verify that the rubber of the center roof antenna is installed to the roof panel with no space between them.
