GLASS ANTENNA INSPECTION

id092000806200

4SD

1.  Disconnect the negative battery cable.

2.  Disconnect the antenna amplifier connector B. (See ANTENNA AMPLIFIER REMOVAL/INSTALLATION.)

3.  Disconnect the antenna feeder No.6 connector C. (with RDS (radio data system)) (See ANTENNA FEEDER NO.6 REMOVAL/INSTALLATION.)

4.  Inspect the glass antenna for damage visually.

5.  Inspect for continuity between the glass antenna terminals using an ohmmeter.

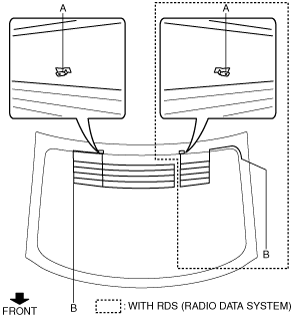

am3zzw00007708

•  If not as specified, repair the glass antenna. (See FILAMENT REPAIR.)

am3zzw00009853

5HB (with RDS (radio data system))

1.  Disconnect the negative battery cable.

2.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the antenna feeder No.7 connector B. (See ANTENNA FEEDER NO.7 REMOVAL/INSTALLATION.)

4.  Inspect the glass antenna for damage visually.

5.  Inspect for continuity between the glass antenna terminals using an ohmmeter.

am3zzw00006085

•  If not as specified, repair the glass antenna. (See FILAMENT REPAIR.)

am3zzw00009853
