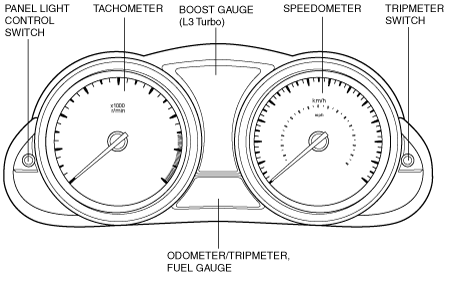

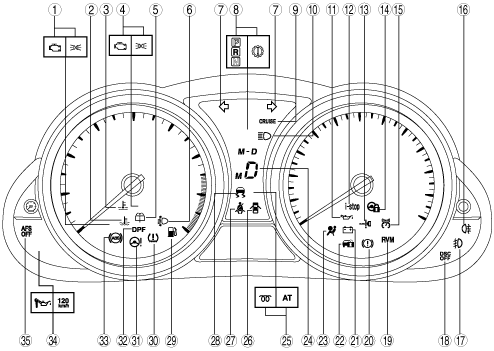

1

MIL

PCM

×

Illuminates if a malfunction occurs in the engine control system and the automatic transaxle control system.

(See ON-BOARD DIAGNOSTIC SYSTEM MALFUNCTION DISPLAY FUNCTION [LF, L5].)

(See ON-BOARD DIAGNOSTIC SYSTEM MALFUNCTION DISPLAY FUNCTION [ZY, Z6].)

(See ON-BOARD DIAGNOSTIC SYSTEM MALFUNCTION DISPLAY FUNCTION [MZR 2.0 DISI i-stop].)

Standard meter

TNS indicator light

BCM

×

When the TNS illuminates, the TNS indicator light illuminates.

Black-out meter

2

High engine coolant temperature warning light

PCM

×

Illuminates or flashes when engine coolant temperature is high.

—

3

Low engine coolant temperature warning light

PCM

×

Illuminates when engine coolant temperature is low.

—

4

MIL

PCM

×

Illuminates if a malfunction occurs in the engine control system and the automatic transaxle control system.

(See ON-BOARD DIAGNOSTIC SYSTEM MALFUNCTION DISPLAY FUNCTION [LF, L5].)

(See ON-BOARD DIAGNOSTIC SYSTEM MALFUNCTION DISPLAY FUNCTION [ZY, Z6].)

(See ON-BOARD DIAGNOSTIC SYSTEM MALFUNCTION DISPLAY FUNCTION [MZR 2.0 DISI i-stop].)

Standard meter

TNS indicator light

BCM

×

When the TNS illuminates, the TNS indicator light illuminates.

Black-out meter

5

Washer fluid-level warning light

Washer fluid-level sensor

—

When the washer fluid-level is low, the washer fluid level warning light illuminates.

(See WASHER FLUID-LEVEL SENSOR FUNCTION.)

With washer fluid-level sensor

6

Headlight auto leveling warning light

Auto leveling control module

×

The headlight auto leveling system warning light illuminates if a malfunction in the auto leveling system is detected.

With headlight auto leveling system

7

Turn indicator light

BCM

×

—

8

Selector indicator light

TCM

×

The selector indicator light indicates the selector lever position.

(See SELECTOR INDICATOR LIGHT FUNCTION [FN4A-EL].)

(See SELECTOR INDICATOR LIGHT FUNCTION [FS5A-EL].)

(See SELECTOR INDICATOR LIGHT FUNCTION [DJVA-EL].)

ATX/CVT

Powertrain warning light

PCM

×

Abnormality occurs in an engine control system and turns on when a DTC is memorized in PCM.

MZ-CD 1.6 (Y6)

9

Cruise main indicator light (amber)

PCM

×

Illuminates if the cruise control system is in control status.

(See CRUISE CONTROL SYSTEM OUTLINE [LF, L5].)

(See CRUISE CONTROL SYSTEM OUTLINE [Z6].)

(See CRUISE CONTROL SYSTEM OUTLINE [MZ-CD 1.6 (Y6) (EURO4 emission level)].)

(See CRUISE CONTROL SYSTEM OUTLINE [MZ-CD 1.6 (Y6) (EURO5 emission level)].)

(See CRUISE CONTROL SYSTEM OUTLINE [MZR-CD 2.2].)

(See CRUISE CONTROL SYSTEM OUTLINE [MZR 2.0 DISI i-stop].)

With cruise control system

Cruise set indicator light (green)

10

High-beam indicator light

BCM

×

When the headlight (high-beam) illuminates, the high-beam indicator light illuminates.

—

11

Oil pressure warning light

Oil pressure switch

—

Illuminates if the oil pressure is low.

—

12

i-stop warning light (amber)

PCM

×

The i-stop warning light flashes if a malfunction in the i-stop system is detected.

(See i-stop CONTROL OPERATION [MZR 2.0 DISI i-stop].)

With i-stop

i-stop indicator light (green)

The i-stop indicator light illuminates when the engine-stop conditions for the i-stop system are met.

(See i-stop CONTROL OPERATION [MZR 2.0 DISI i-stop].)

13

Keyless indicator light (green)

Keyless control module

×

Illuminates when start knob is pressed.

(See ADVANCED KEYLESS ENTRY SYSTEM FUNCTION.)

With advanced keyless entry and push button start system

Keyless warning light (red)

Illuminates or flashes when keyless control module has malfunction.

(See ADVANCED KEYLESS ENTRY SYSTEM FUNCTION.)

14

Steering lock fail warning light

Keyless control module

×

Flashes if the steering lock cannot be unlocked.

(See ADVANCED KEYLESS ENTRY SYSTEM FUNCTION.)

With advanced keyless entry and push button start system

15

Vehicle speed warning light

ABS wheel-speed sensor

—

Illuminates when set vehicle speed is exceeded.

—

16

Rear fog light indicator light

BCM

×

When the rear fog light illuminates, the rear fog light indicator light illuminates.

With rear fog light

17

Front fog light indicator light

BCM

×

When the front fog light illuminates, the front fog indicator light illuminates.

With front fog light

18

DSC OFF light

DSC HU/CM

×

—

19

RVM warning light (amber)

Rear vehicle monitoring control module

×

Illuminates when rear vehicle monitoring system has malfunction.

With rear vehicle monitoring system

RVM indicator light (green)

When the rear vehicle monitoring system is operating, the RVM indicator light illuminates.

20

Brake system warning light

PCM

×

Brake system warning light illumination request.

(See DRIVE-BY-WIRE CONTROL OPERATION [ZY, Z6].)

(See DRIVE-BY-WIRE CONTROL OPERATION [L3 Turbo].)

(See DRIVE-BY-WIRE CONTROL OPERATION [LF, L5].)

(See DRIVE-BY-WIRE CONTROL OPERATION [MZR 2.0 DISI i-stop].)

(See FUEL INJECTION AMOUNT CONTROL OPERATION [MZR-CD 2.2].)

—

×

If the ABS/DSC system is malfunctioning, the brake system warning light remains illuminated.

(See ON-BOARD DIAGNOSTIC SYSTEM FUNCTION [ABS].)

(See ON-BOARD DIAGNOSTIC SYSTEM FUNCTION [DYNAMIC STABILITY CONTROL (DSC)].)

—

BCM

×

—

21

Generator warning light

PCM

×

Illuminates if the generator output is not normal.

(See GENERATOR CONSTRUCTION [LF, L5].)

(See GENERATOR CONSTRUCTION [ZY, Z6].)

(See GENERATOR CONSTRUCTION [MZ-CD 1.6 (Y6)].)

(See GENERATOR CONSTRUCTION [MZR-CD 2.2].)

(See GENERATOR CONSTRUCTION [MZR 2.0 DISI i-stop].)

—

22

Security light

Keyless control module

×

Illuminates or flashes when immobilizer system has malfunction.

(See SECURITY LIGHT CONSTRUCTION/OPERATION.)

With advanced keyless entry and push button start system

PCM

With keyless entry system

23

Air bag system warning light

SAS control module

×

Illuminates or flashes when SRS air bag system has malfunction.

(See AIR BAG SYSTEM WARNING LIGHT CONSTRUCTION/OPERATION.)

—

24

Gear position indicator light

TCM

×

(See GEAR POSITION INDICATOR LIGHT FUNCTION [FN4A-EL].)

(See GEAR POSITION INDICATOR LIGHT FUNCTION [FS5A-EL].)

(See GEAR POSITION INDICATOR LIGHT FUNCTION [DJVA-EL].)

ATX/CVT

25

AT warning light

TCM

×

The AT warning light illuminates to alert the driver of a malfunction in the transaxle.

(See AT WARNING LIGHT FUNCTION [FN4A-EL].)

(See AT WARNING LIGHT FUNCTION [FS5A-EL].)

(See AT WARNING LIGHT FUNCTION [DJVA-EL].)

ATX/CVT

Glow indicator light

PCM

×

Illuminates when the glow system is operating.

MZ-CD 1.6 (1.6), MZR-CD 2.2

26

Door ajar warning light

BCM

×

When any door is open, the door ajar warning light illuminates.

—

27

Seat belt warning light

SAS control module

×

When the driver’s seat belt is not fastened, the seat belt warning light illuminates.

—

28

DSC indicator light

DSC HU/CM

×

—

29

Fuel-level warning light

Fuel gauge sender unit

—

When the remaining fuel amount in the fuel tank is low, the fuel-level warning light illuminates.

—

30

Tire pressure monitoring system (TPMS) warning light

Instrument cluster

—

If the TPMS system is malfunctioning or the tire pressure is abnormal, the tire pressure warning light remains illuminated.

(See TIRE PRESSURE MONITORING SYSTEM (TPMS) WARNING LIGHT AND TIRE PRESSURE MONITORING SYSTEM (TPMS) WARNING BUZZER CONSTRUCTION.)

With TPMS

31

Electro hydraulic power assist steering (EHPAS) warning light

EHPAS control module

×

Illuminates when EHPAS system has malfunction.

(See ON-BOARD DIAGNOSTIC SYSTEM FUNCTION [DYNAMIC STABILITY CONTROL (DSC)].)

—

32

Diesel particulate filter indicator light

PCM

×

Illuminates when a diesel particulate filter-related DTC is stored in the PCM memory.

(See DIESEL PARTICULATER FILTER REGENERATION CONTROL OPERATION [MZR-CD 2.2].)

MZR-CD 2.2

33

ABS warning light

×

If the ABS/DSC system is malfunctioning, the ABS warning light remains illuminated.

(See ON-BOARD DIAGNOSTIC SYSTEM FUNCTION [ABS].)

(See ON-BOARD DIAGNOSTIC SYSTEM FUNCTION [DYNAMIC STABILITY CONTROL (DSC)].)

—

34

120 km/h warning light

ABS wheel-speed sensor

—

The micro computer in the instrument cluster determines the vehicle speed based on the vehicle speed signals from the ABS wheel-speed sensor and illuminates the vehicle speed warning light when the vehicle speed exceeds 120 km/h.

—

Fuel in oil warning light

PCM

×

MZ-CD 1.6 (Y6) (EURO5 emission level)

35

AFS OFF light

AFS control module

×

When the AFS OFF switch is pressed to disable, the AFS OFF light illuminates

With AFS

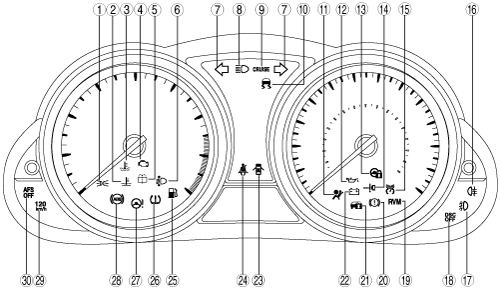

1

TNS indicator light

BCM

×

When the TNS illuminates, the TNS indicator light illuminates.

—

2

High engine coolant temperature warning light

PCM

×

Illuminates or flashes when engine coolant temperature is high.

—

3

Low engine coolant temperature warning light

PCM

×

Illuminates when engine coolant temperature is low.

—

4

MIL

PCM

×

Illuminates if a malfunction occurs in the engine control system and the automatic transaxle control system.

(See ON-BOARD DIAGNOSTIC SYSTEM MALFUNCTION DISPLAY FUNCTION [L3 Turbo].)

—

5

Washer fluid-level warning light

Washer fluid-level sensor

—

When the washer fluid-level is low, the washer fluid level warning light illuminates.

(See WASHER FLUID-LEVEL SENSOR FUNCTION.)

With washer fluid-level sensor

6

Headlight auto leveling warning light

Auto leveling control module

×

The headlight auto leveling system warning light illuminates if a malfunction in the auto leveling system is detected.

With headlight auto leveling system

7

Turn indicator light

BCM

×

—

8

High-beam indicator light

BCM

×

When the headlight (high-beam) illuminates, the high-beam indicator light illuminates.

—

9

Cruise main indicator light (amber)

PCM

×

Illuminates if the cruise control system is in control status.

(See CRUISE CONTROL SYSTEM OUTLINE [L3 Turbo].)

With cruise control system

Cruise set indicator light (green)

10

DSC indicator light

DSC HU/CM

×

—

11

Air bag system warning light

SAS control module

×

Illuminates or flashes when SRS air bag system has malfunction.

(See AIR BAG SYSTEM WARNING LIGHT CONSTRUCTION/OPERATION.)

—

12

Oil pressure warning light

Oil pressure switch

—

Illuminates if the oil pressure is low.

—

13

Steering lock fail warning light

Keyless control module

×

Flashes if the steering lock cannot be unlocked.

(See ADVANCED KEYLESS ENTRY SYSTEM FUNCTION.)

With advanced keyless entry and push button start system

14

Keyless indicator light (green)

Keyless control module

×

Illuminates when start knob is pressed.

(See ADVANCED KEYLESS ENTRY SYSTEM FUNCTION.)

With advanced keyless entry and push button start system

Keyless warning light (red)

Illuminates or flashes when keyless control module has malfunction.

(See ADVANCED KEYLESS ENTRY SYSTEM FUNCTION.)

15

Vehicle speed warning light

ABS wheel-speed sensor

—

Illuminates when set vehicle speed is exceeded.

—

16

Rear fog light indicator light

BCM

×

When the rear fog light illuminates, the rear fog light indicator light illuminates.

With rear fog light

17

Front fog light indicator light

BCM

×

When the front fog light illuminates, the front fog indicator light illuminates.

With front fog light

18

DSC OFF light

DSC HU/CM

×

—

19

RVM warning light (amber)

Rear vehicle monitoring control module

×

Illuminates when rear vehicle monitoring system has malfunction.

With rear vehicle monitoring system

RVM indicator light (green)

When the rear vehicle monitoring system is operating, the RVM indicator light illuminates.

20

Brake system warning light

PCM

×

Brake system warning light illumination request.

(See DRIVE-BY-WIRE CONTROL OPERATION [ZY, Z6].)

(See DRIVE-BY-WIRE CONTROL OPERATION [L3 Turbo].)

(See DRIVE-BY-WIRE CONTROL OPERATION [LF, L5].)

(See DRIVE-BY-WIRE CONTROL OPERATION [MZR 2.0 DISI i-stop].)

—

DSC HU/CM

×

If the DSC system is malfunctioning, the brake system warning light remains illuminated.

(See ON-BOARD DIAGNOSTIC SYSTEM FUNCTION [DYNAMIC STABILITY CONTROL (DSC)].)

—

BCM

×

—

21

Security light

Keyless control module

×

Illuminates or flashes when immobilizer system has malfunction.

(See SECURITY LIGHT CONSTRUCTION/OPERATION.)

With advanced keyless entry and push button start system

PCM

With keyless entry system

22

Generator warning light

PCM

×

Illuminates if the generator output is not normal.

(See GENERATOR CONSTRUCTION [L3 Turbo].)

—

23

Door ajar warning light

BCM

×

When any door is open, the door ajar warning light illuminates.

—

24

Seat belt warning light

SAS control module

×

When the driver’s seat belt is not fastened, the seat belt warning light illuminates.

—

25

Fuel-level warning light

Fuel gauge sender unit

—

When the remaining fuel amount in the fuel tank is low, the fuel-level warning light illuminates.

—

26

Tire pressure monitoring system (TPMS) warning light

Instrument cluster

×

If the TPMS system is malfunctioning or the tire pressure is abnormal, the tire pressure warning light remains illuminated.

(See TIRE PRESSURE MONITORING SYSTEM (TPMS) WARNING LIGHT AND TIRE PRESSURE MONITORING SYSTEM (TPMS) WARNING BUZZER CONSTRUCTION.)

With TPMS

27

Electro hydraulic power assist steering (EHPAS) warning light

EHPAS control module

×

Illuminates when EHPAS system has malfunction.

—

28

ABS warning light

DSC HU/CM

×

If the DSC system is malfunctioning, the ABS warning light remains illuminated.

(See ON-BOARD DIAGNOSTIC SYSTEM FUNCTION [DYNAMIC STABILITY CONTROL (DSC)].)

—

29

120 km/h warning light

ABS wheel-speed sensor

—

The micro computer in the instrument cluster determines the vehicle speed based on the vehicle speed signals from the ABS wheel-speed sensor and illuminates the vehicle speed warning light when the vehicle speed exceeds 120 km/h.

—

30

AFS OFF light

AFS control module

×

When the AFS OFF switch is pressed to disable, the AFS OFF light illuminates

With AFS
