FUEL GAUGE SENDER UNIT INSPECTION

id092200801800

Except MZ-CD 1.6 (Y6), MZR-CD 2.2

1.  Disconnect the negative battery cable.

2.  Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

3.  Remove the fuel pump unit. (See FUEL PUMP UNIT REMOVAL/INSTALLATION [LF, L5].)(See FUEL PUMP UNIT REMOVAL/INSTALLATION [ZY, Z6].)(See FUEL PUMP UNIT REMOVAL/INSTALLATION [L3 Turbo].)(See FUEL PUMP UNIT REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)

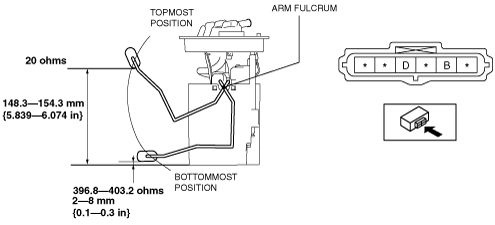

4.  Move the float to the topmost and bottommost positions, and verify that the resistance between terminals B and D of the fuel gauge sender unit and the position of the float are as shown in the figure.

am3zzw00006989

•  If they are not as shown in the figure, replace the fuel pump unit. (See FUEL PUMP UNIT REMOVAL/INSTALLATION [LF, L5].)(See FUEL PUMP UNIT REMOVAL/INSTALLATION [ZY, Z6])

MZ-CD 1.6 (Y6), MZR-CD 2.2

1.  Disconnect the negative battery cable.

2.  Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

3.  Remove the fuel gauge sender unit. (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION.)

4.  Move the float to the topmost and bottommost positions, and verify that the resistance between terminals B and D of the fuel gauge sender unit and the position of the float are as shown in the figure.

am3zzw00006988

•  If they are not as shown in the figure, replace the fuel gauge unit. (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION.)
