AIR INTAKE ACTUATOR REMOVAL/INSTALLATION

id074000801400

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(5)  Car-navigation unit (See CAR-NAVIGATION UNIT REMOVAL/INSTALLATION.)

3.  Remove the blower case. (L.H.D. L3 Turbo) (See BLOWER MOTOR REMOVAL.)

4.  Slide the blower case to the position shown in the figure. (See BLOWER MOTOR REMOVAL.) (R.H.D.)

5.  Remove in the order indicated in the table.

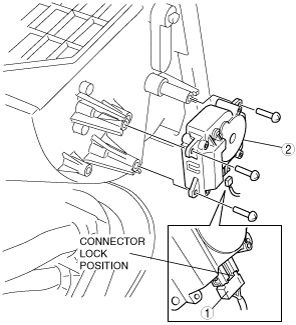

L.H.D. Except L3 Turbo

am3zzw00000755

L.H.D. L3 Turbo

am3zzw00003705

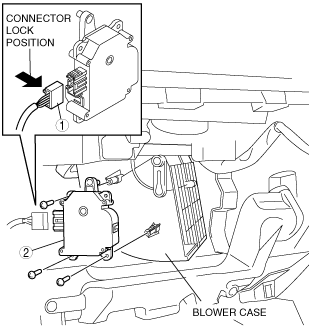

R.H.D.

am3zzw00000756

1	Air intake actuator connector
2	Air intake actuator

6.  Install in the reverse order of removal.
