HEAD IMPACT PAD REMOVAL/INSTALLATION
id091700806500
1. Remove the following parts:
- (1) Console (4SD) (See CONSOLE REMOVAL/INSTALLATION.)
-
- (2) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (3) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (4) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (5) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
-
- (6) Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (7) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
-
- (8) Rear seat (See REAR SEAT REMOVAL/INSTALLATION.)
-
- (9) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
-
- (10) Trunk side upper trim (5HB) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
-
- (11) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (12) Map light (See MAP LIGHT REMOVAL/INSTALLATION.)
-
- (13) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
-
- (14) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
-
- (15) Headliner (See HEADLINER REMOVAL/INSTALLATION.)
-

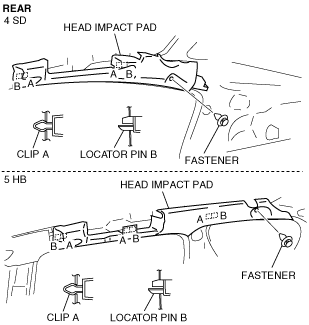

2. Remove the fastener. (Rear)
3. Pull the head impact pad outward and detach the clips A and the locator pins B.
4. Remove the head impact pad.
5. Install in the reverse order of removal.
