INTAKE-AIR SYSTEM [SKYACTIV-D 2.2]

id0113z7003300


Purpose, Outline

•  With the adoption of a 2-stage turbocharger, high torque at low engine speeds, high response, and high output at high engine speeds have been achieved as well as suppression of NOx and PM emissions.

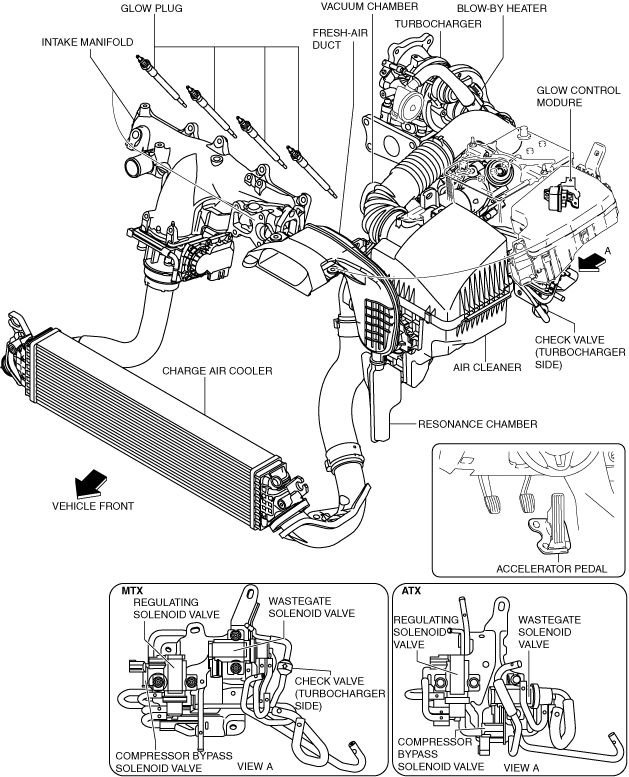

Structural View

am3zzn00005628

System diagram

ac5wzn00001916

Vacuum piping diagram

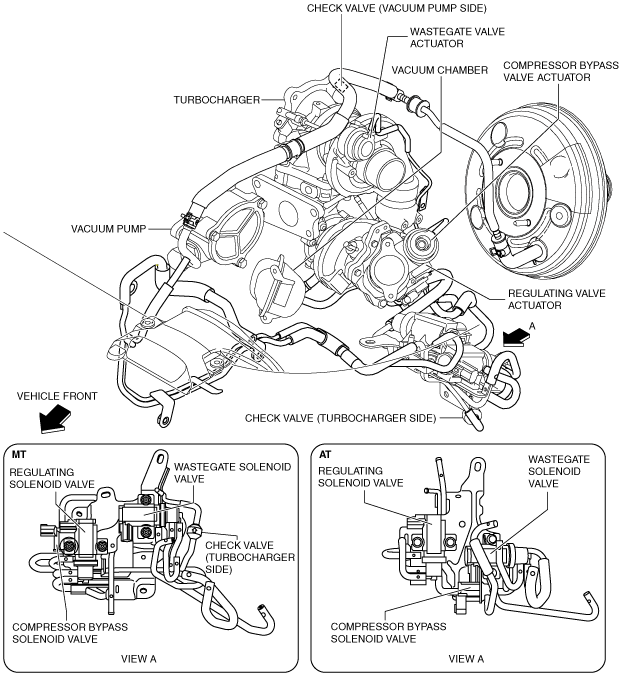

L.H.D.

am6zzn00002472

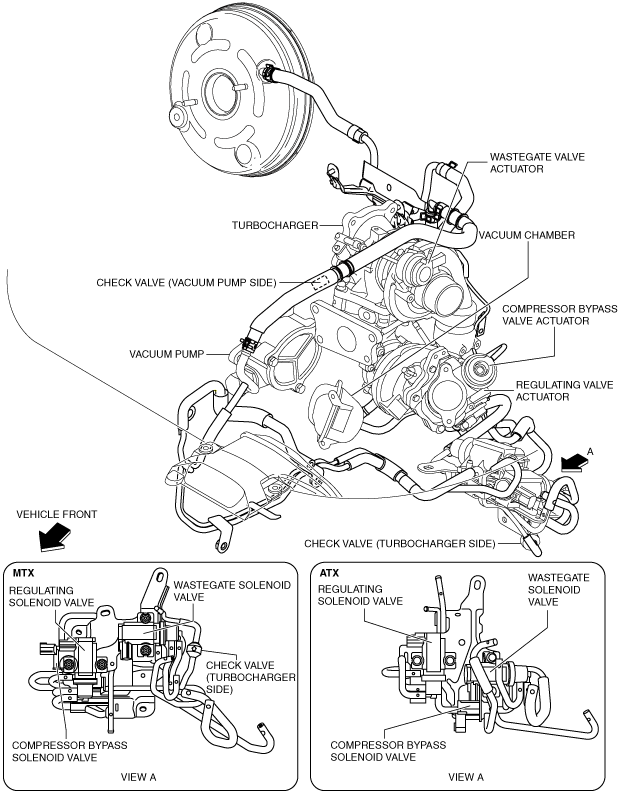

R.H.D.

am3zzn00003662

Structure

•  The intake air system consists of the following parts:

Part/System name

Reference
Fresh-air duct
(See FRESH-AIR DUCT [SKYACTIV-D 2.2].)
Resonance chamber
(See RESONANCE CHAMBER [SKYACTIV-D 2.2].)
Air cleaner
(See AIR CLEANER [SKYACTIV-D 2.2]..)
Intake manifold
(See INTAKE MANIFOLD [SKYACTIV-D 2.2].)
Air charging system
(See AIR CHARGING SYSTEM [SKYACTIV-D 2.2].)
Turbocharger
Compressor bypass valve actuator
(See TURBOCHARGER [SKYACTIV-D 2.2].)
(See REGULATING VALVE POSITION SENSOR [SKYACTIV-D 2.2].)
Compressor bypass valve
Wastegate valve actuator
Wastegate valve
Regulating valve actuator
Regulating valve
Regulating valve position sensor
Compressor bypass solenoid valve
(See COMPRESSOR BYPASS SOLENOID VALVE [SKYACTIV-D 2.2].)
Wastegate solenoid valve
(See WASTEGATE SOLENOID VALVE [SKYACTIV-D 2.2].)
Regulating solenoid valve
(See REGULATING SOLENOID VALVE [SKYACTIV-D 2.2].)
Vacuum chamber
(See VACUUM CHAMBER [SKYACTIV-D 2.2].)
Check valve (turbocharger side)
(See CHECK VALVE [SKYACTIV-D 2.2].)
Charge air cooler
(See CHARGE AIR COOLER [SKYACTIV-D 2.2].)
Glow system
(See GLOW SYSTEM [SKYACTIV-D 2.2].)
Glow plug
(See GLOW PLUG [SKYACTIV-D 2.2].)
Glow control module
(See GLOW CONTROL MODULE [SKYACTIV-D 2.2].)
Accelerator pedal
(See ACCELERATOR PEDAL, KICKDOWN SWITCH [SKYACTIV-D 2.2].)
