FUEL SYSTEM [SKYACTIV-D 1.5]

id0114q2002600


Outline

A common rail-type fuel injection system has been adopted.

Structural View

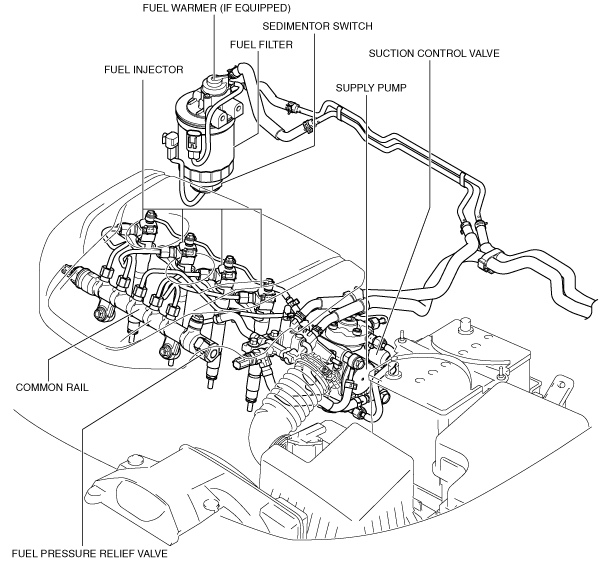

Engine compartment side

L.H.D.

am3zzn00005062

R.H.D.

am3zzn00005063


Fuel tank side

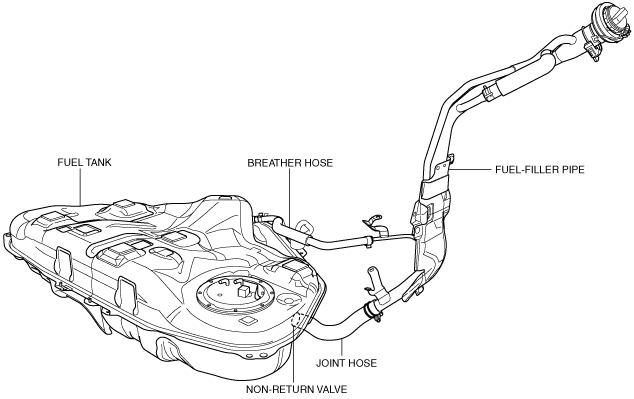

Fuel tank type A

am3zzn00005064

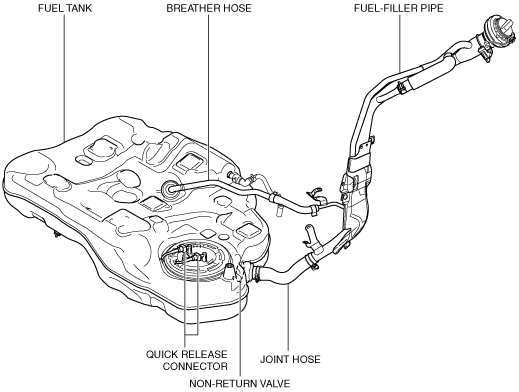

Fuel tank type B

am3zzn00005065

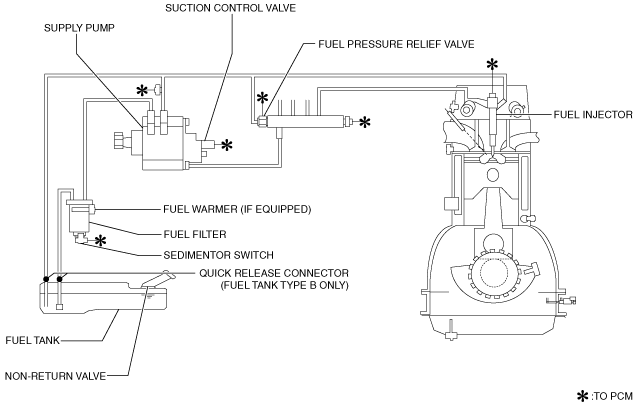

System Diagram

am3zzn00005066

Structure

•  The fuel system consists of the following parts:

Part/System name

Reference
Common rail injection system
(See COMMON RAIL INJECTION SYSTEM [SKYACTIV-D 1.5].)
Fuel tank
(See FUEL TANK [SKYACTIV-D 1.5].)
Fuel filter
(See FUEL FILTER [SKYACTIV-D 1.5].)
Fuel warmer (if equipped)
(See FUEL WARMER [SKYACTIV-D 1.5].)
Sedimentor switch
(See SEDIMENTOR SWITCH [SKYACTIV-D 1.5].)
Supply pump
(See SUPPLY PUMP [SKYACTIV-D 1.5].)
Suction control valve
(See SUCTION CONTROL VALVE [SKYACTIV-D 1.5].)
Common rail
(See COMMON RAIL [SKYACTIV-D 1.5].)
Fuel pressure relief valve
(See FUEL PRESSURE RELIEF VALVE [SKYACTIV-D 1.5].)
Fuel injector
(See FUEL INJECTOR [SKYACTIV-D 1.5].)
Non-return valve
(See NON-RETURN VALVE [SKYACTIV-D 1.5].)
Quick release connector (fuel tank type B only)
(See QUICK RELEASE CONNECTOR (FUEL SYSTEM) [SKYACTIV-D 1.5].)


Specification

Item

Specification
Supply pump
Electric control
Fuel injector
Electric control
Fuel tank capacity
(L {US gal, Imp gal})
51.0 {13.5, 11.2}
Fuel type
EN590 or the equivalent
