DRIVE SELECTION SWITCH REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5]
id0121t4100200
Without Electric Parking Brake
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
2. Remove the upper panel. (See UPPER PANEL REMOVAL.) (See UPPER PANEL INSTALLATION.)
3. Remove the selector lever knob. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
4. Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION.)
5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.

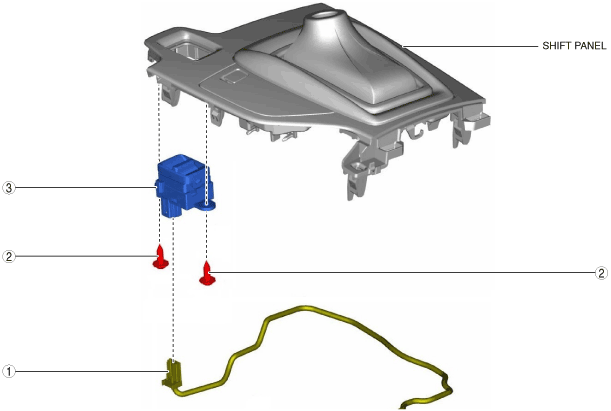

am3zzw00018027
|
|
1
|
Connector
|
|
2
|
Screw
|
|
3
|
Drive selection switch
|
With Electric Parking Brake
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
2. Remove the upper panel. (See UPPER PANEL REMOVAL.) (See UPPER PANEL INSTALLATION.)
3. Remove the selector lever knob. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
4. Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION.)
5. Turn over the removed shift panel and remove the boots from the boots securing parts shown in the figure.
am3zzw00018299
|
6. Remove in the order indicated in the table.
7. Install in the reverse order of removal.

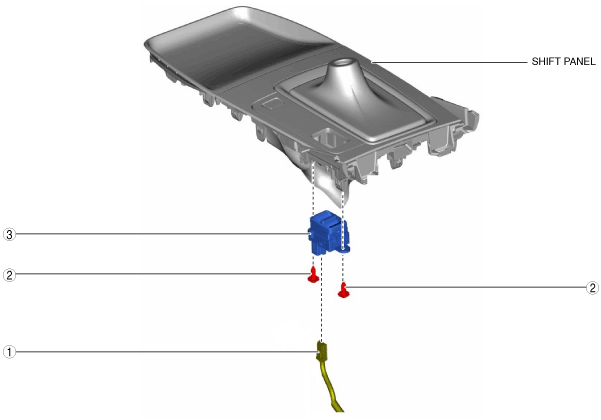

am3zzw00018029
|
|
1
|
Connector
|
|
2
|
Screw
|
|
3
|
Drive selection switch
|
