BUMPER STIFFENER LOWER REMOVAL/INSTALLATION

id091000888900

Bumper Stiffener Lower TYPE A

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)

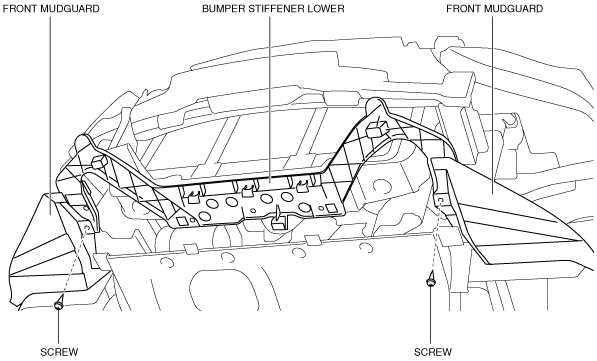

4.  Remove the screws shown in the figure.

am3uuw00012274

5.  Remove the bolts shown in the figure.

am3uuw00012276

6.  Remove the tabs shown in the figure.

am3zzw00020569

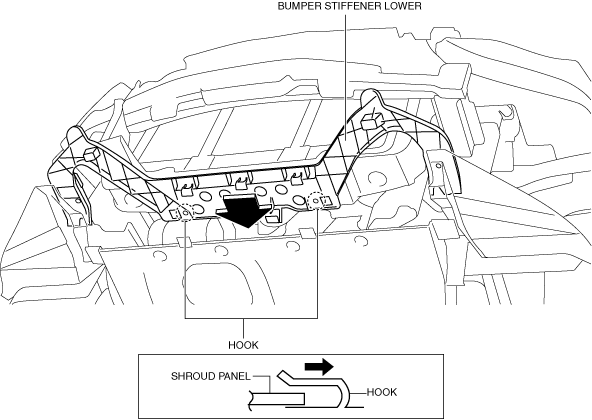

7.  Move the bumper stiffener lower in the direction shown in the figure and remove it toward the vehicle front while detaching the hooks.

am3zzw00020570

8.  Install in the reverse order of removal.

Bumper Stiffener Lower TYPE B

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)

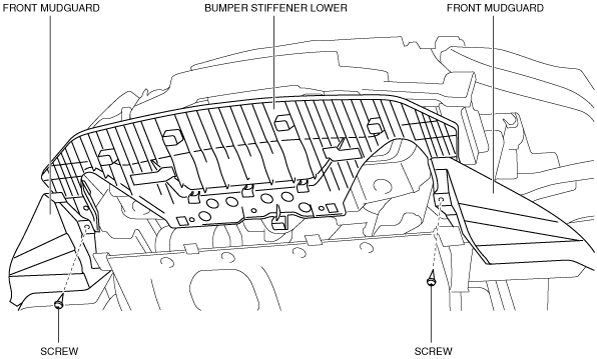

4.  Remove the screws shown in the figure.

am3uuw00012275

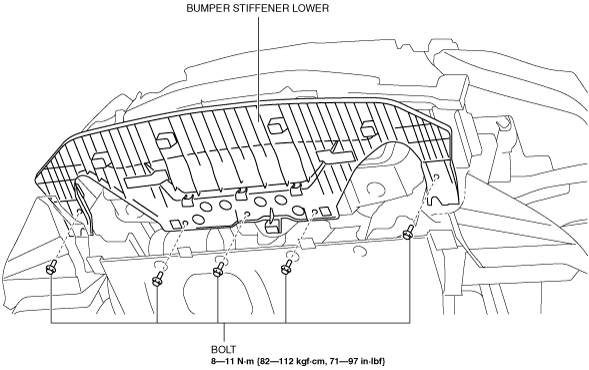

5.  Remove the bolts shown in the figure.

am3uuw00012277

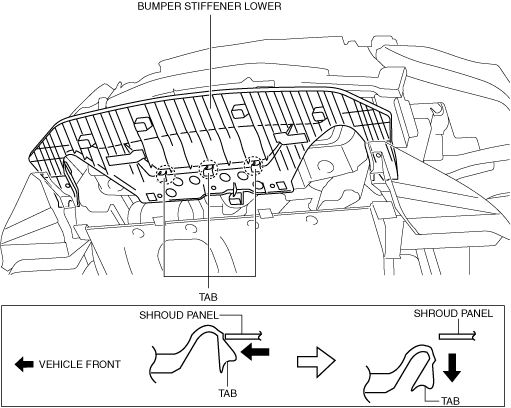

6.  Remove the tabs shown in the figure.

am3zzw00020571

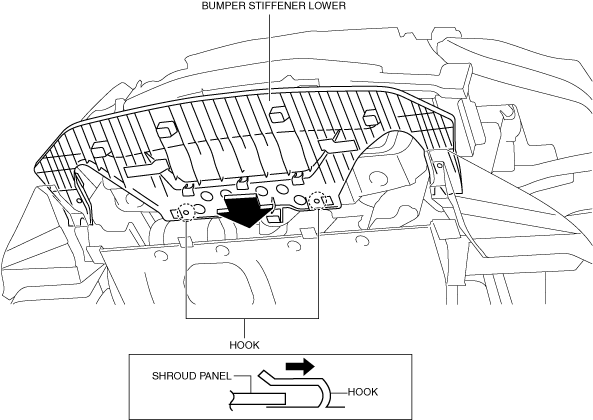

7.  Move the bumper stiffener lower in the direction shown in the figure and remove it toward the vehicle front while detaching the hooks.

am3zzw00020572

8.  Install in the reverse order of removal.
