REAR WINDOW GLASS REMOVAL

id091200000600

4SD

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Remove the following parts:

(1)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(3)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

(4)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(5)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(6)  High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION.)

(7)  Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION.)

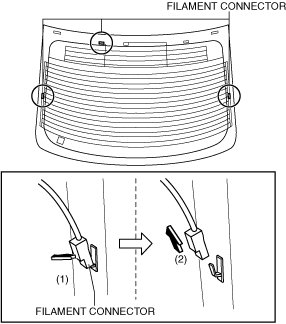

3.  Disconnect the filament connectors in the direction of the arrow in the order of (1), (2) shown in the figure.

am3zzw00020583

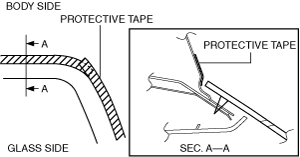

4.  Apply protective tape along the edge of the body.

am3zzw00020584

Note

•  Overlap and adhere the protective tape to the corners to prevent damage.

5.  Avoiding the pin on the inside of the vehicle, insert piano wire which has been cut to sufficient length.

am6zzw00011442

Warning

•  Using piano wire with bare hands can cause injury. Always wear gloves when using piano wire.

Note

•  Before removing the rear window glass from the body, mark the position of the glass by affixing tape to the glass and body panel.

6.  Wind each end of piano wire around a bar.

Note

•  Use a long sawing action to spread the work over the whole length of piano wire to prevent it from breaking due to localized heating.

7.  Secure one end of piano wire, and while pulling the other end, cut the sealant around the rear window glass.

ac5wzw00001326

8.  Pinch pins from the inside of the vehicle and detach it.

ac5uuw00001002

9.  Remove the rear window glass.

5HB

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Remove the following parts:

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION.)

(4)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

(5)  Rear spoiler (See REAR SPOILER REMOVAL.) (See REAR SPOILER INSTALLATION.)

(6)  Rear wiper arm and blade (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(7)  Rear wiper motor (See REAR WIPER MOTOR REMOVAL/INSTALLATION.)

(8)  Outer bushing (See REAR WIPER MOTOR REMOVAL/INSTALLATION.)

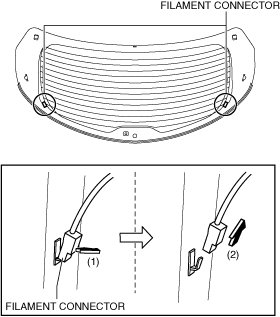

3.  Disconnect the filament connectors in the direction of the arrow in the order of (1), (2) shown in the figure.

am3zzw00020585

4.  Apply protective tape along the edge of the body.

am3zzw00020584

Note

•  Overlap and adhere the protective tape to the corners to prevent damage.

5.  Avoiding the pin on the inside of the vehicle, insert piano wire which has been cut to sufficient length.

am6zzw00011442

Warning

•  Using piano wire with bare hands can cause injury. Always wear gloves when using piano wire.

Note

•  Before removing the rear window glass from the body, mark the position of the glass by affixing tape to the glass and body panel.

6.  Wind each end of piano wire around a bar.

Note

•  Use a long sawing action to spread the work over the whole length of piano wire to prevent it from breaking due to localized heating.

7.  Secure one end of piano wire, and while pulling the other end, cut the sealant around the rear window glass.

ac5wzw00001326

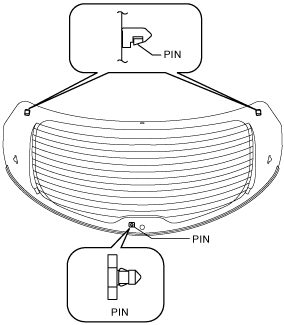

8.  Pinch pins from the inside of the vehicle and detach it.

am3zzw00014856

9.  Remove the rear window glass.
