FUEL-FILLER LID OPENER CABLE REMOVAL/INSTALLATION

id091400510800

L.H.D.

4SD

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2. Remove the following parts:

(1) Front scuff plate (LH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2) Front side trim (LH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3) Rear scuff plate (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(4) B-pillar lower trim (LH) (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(5) Lap pre-tensioner seat belt (with lap pre-tensioner seat belt) (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(6) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(7) Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

(8) Tire house trim (LH) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(9) Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(10) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(11) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(12) Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(13) Fuel-filler lid opener (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(14) Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

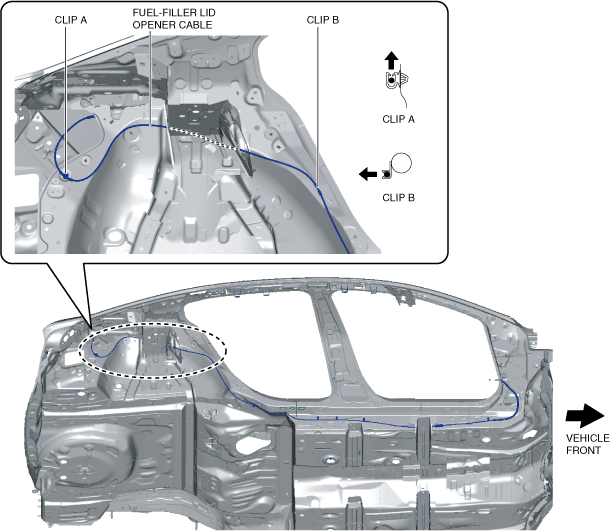

3. Remove the fuel-filler lid opener cable from clips A and B.

am3zzw00020247

4. Remove the fuel-filler lid opener cable from clips C and D.

am3zzw00020248

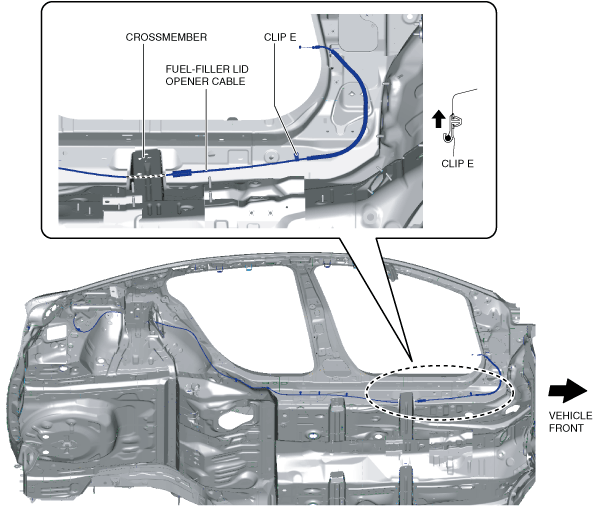

5. Remove the fuel-filler lid opener cable from clip E.

am3zzw00020249

6. Pull the fuel-filler lid opener cable from the crossmember.

7. Install in the reverse order of removal.

5HB

2. Remove the following parts:

(1) Front scuff plate (LH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2) Front side trim (LH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3) Rear scuff plate (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(4) B-pillar lower trim (LH) (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(5) Lap pre-tensioner seat belt (with lap pre-tensioner seat belt) (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(6) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(7) Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

(8) Tire house trim (LH) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(9) Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(10) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(11) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(12) Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(13) Trunk side upper trim (LH) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(14) Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(15) Fuel-filler lid opener (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(16) Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

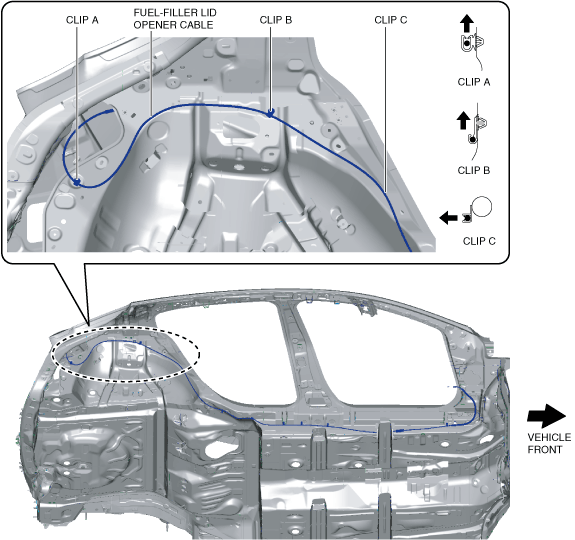

3. Remove the fuel-filler lid opener cable from clips A, B, and C.

am3zzw00020250

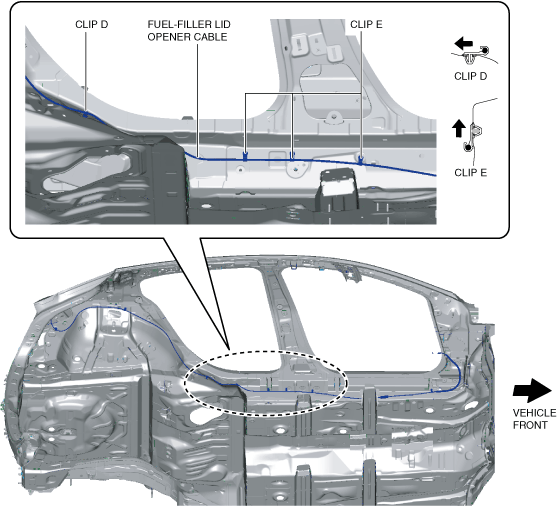

4. Remove the fuel-filler lid opener cable from clips D and E.

am3zzw00020251

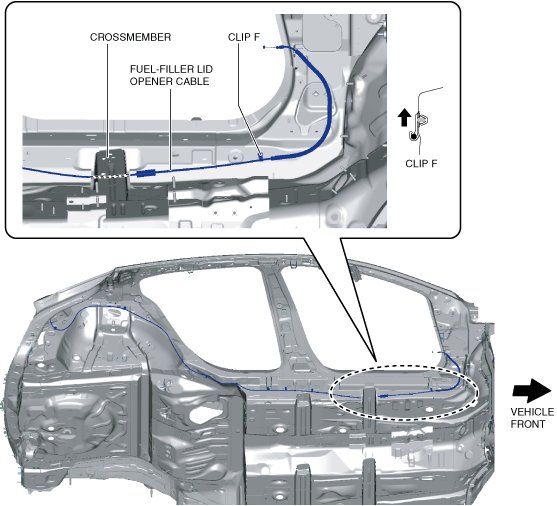

5. Remove the fuel-filler lid opener cable from clip F.

am3zzw00020252

6. Pull the fuel-filler lid opener cable from the crossmember.

7. Install in the reverse order of removal.

R.H.D.

4SD

2. Remove the following parts:

(1) Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2) Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(4) B-pillar lower trim (RH) (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(5) Lap pre-tensioner seat belt (with lap pre-tensioner seat belt) (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(6) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(7) Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

(8) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(9) Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(10) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(11) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(12) Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(13) Fuel-filler lid opener (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(14) Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

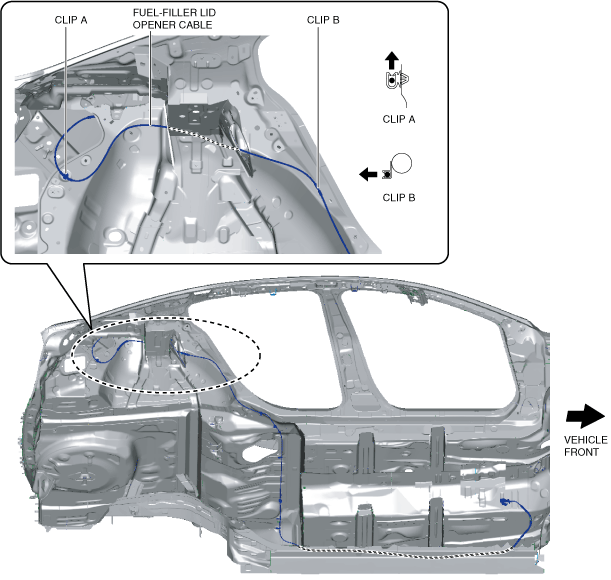

3. Remove the fuel-filler lid opener cable from clips A and B.

am3zzw00020253

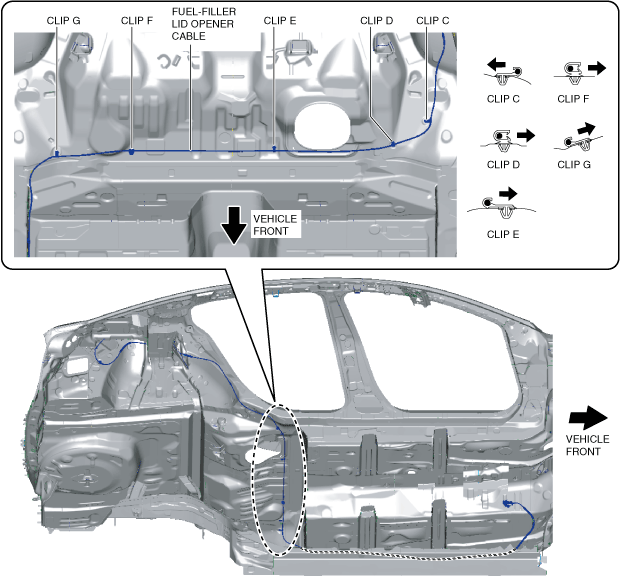

4. Remove the fuel-filler lid opener cable from clips C, D, E, F, and G.

am3zzw00020254

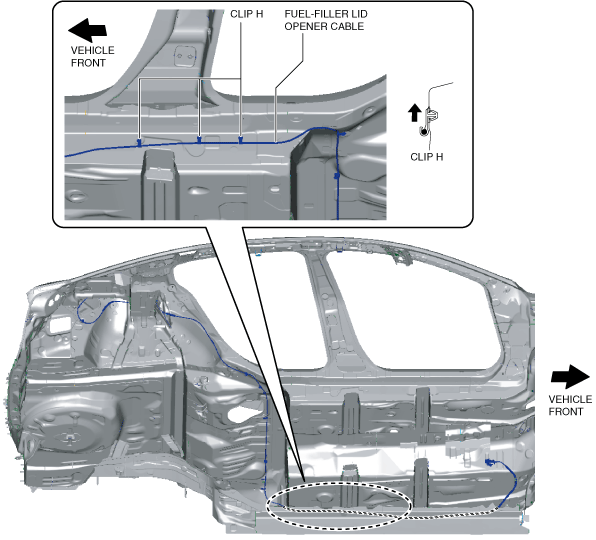

5. Remove the fuel-filler lid opener cable from clips H.

am3zzw00020255

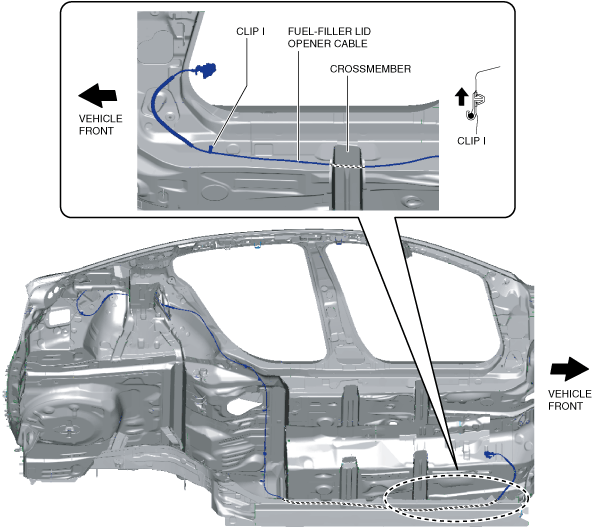

6. Remove the fuel-filler lid opener cable from clip I.

am3zzw00020256

7. Pull the fuel-filler lid opener cable from the crossmember.

8. Install in the reverse order of removal.

5HB

2. Remove the following parts:

(1) Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2) Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(4) B-pillar lower trim (RH) (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(5) Lap pre-tensioner seat belt (with lap pre-tensioner seat belt) (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(6) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(7) Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

(8) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(9) Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(10) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(11) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(12) Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(13) Trunk side upper trim (LH) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(14) Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(15) Fuel-filler lid opener (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(16) Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

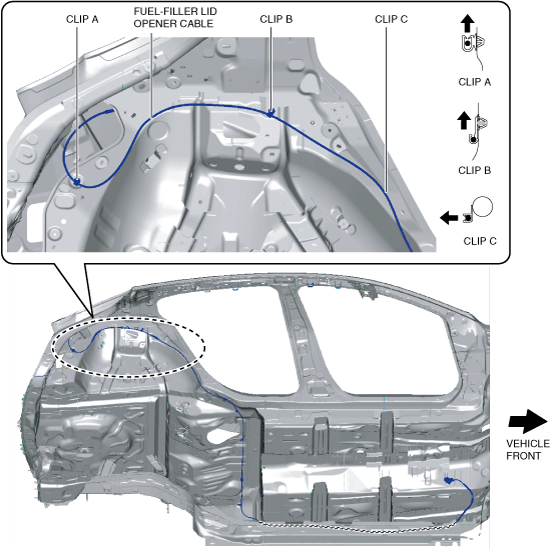

3. Remove the fuel-filler lid opener cable from clips A, B, and C.

am3zzw00020257

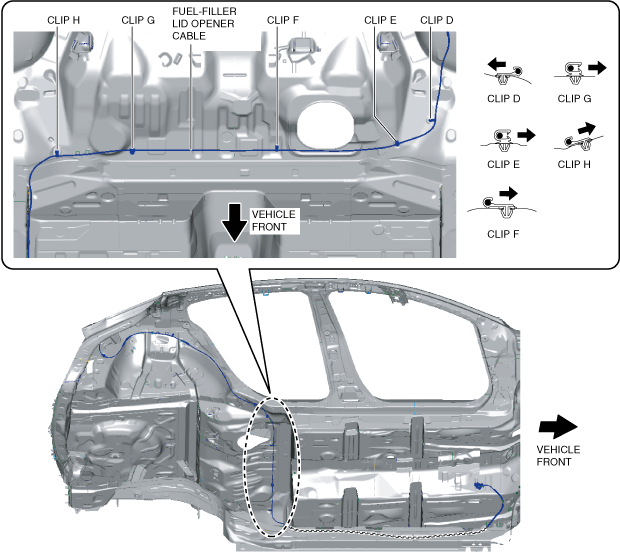

4. Remove the fuel-filler lid opener cable from clips D, E, F, G, and H.

am3zzw00020258

5. Remove the fuel-filler lid opener cable from clips I.

am3zzw00020259

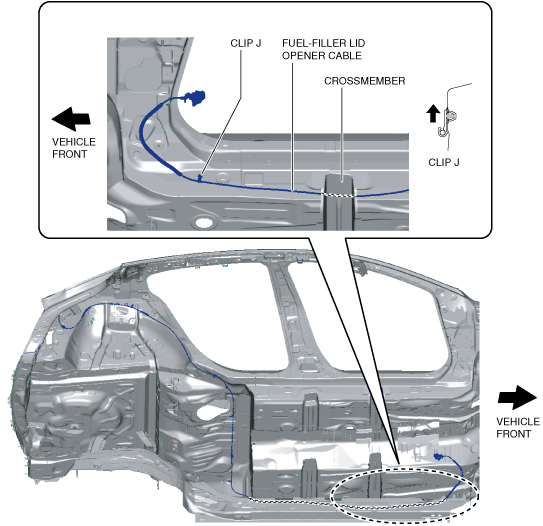

6. Remove the fuel-filler lid opener cable from clip J.

am3zzw00020260

7. Pull the fuel-filler lid opener cable from the crossmember.

8. Install in the reverse order of removal.
