FRONT TURN LIGHT SHORT CORD REMOVAL/INSTALLATION


id091800906100

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].)

2.  Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)

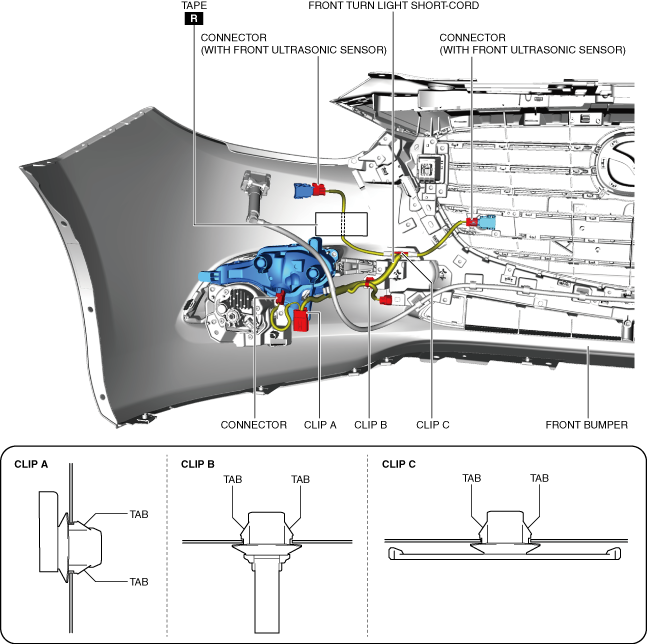

4.  Disconnect the connectors.

am3zzw00018421

5.  Remove the clips.

6.  Remove the tape.

7.  Remove the front turn light short-cord.

8.  Install in the reverse order of removal.
