WASHER MOTOR REMOVAL/INSTALLATION

id091900805000

Note

•  If the procedure is performed with washer fluid in the washer tank, the washer fluid may leak out. When performing the procedure, place a container under the washer tank to collect washer fluid, and perform the procedure.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL.)(See FRONT BUMPER INSTALLATION.)

4.  Disconnect the connector.

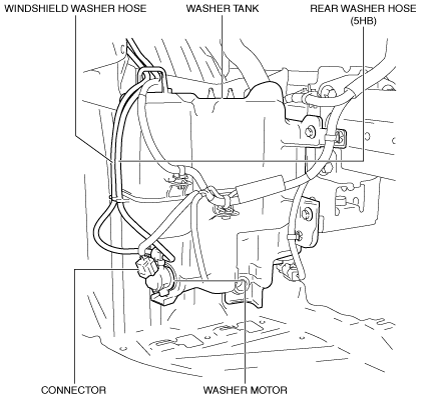

VIN: Except 3MZ

am3zzw00013843

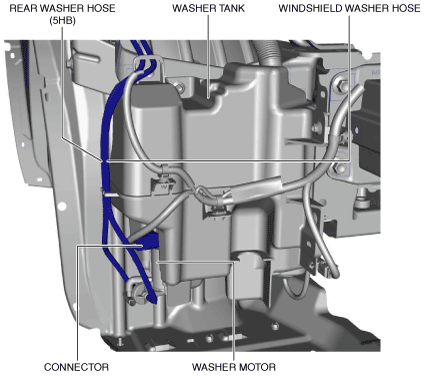

VIN: 3MZ

am3uuw00012804

5.  Disconnect the washer hose from the washer motor.

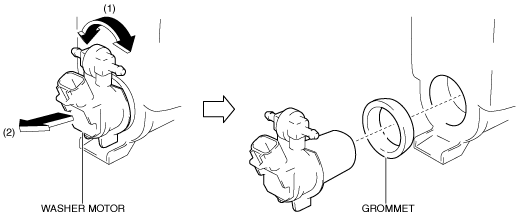

6.  Remove the washer motor in the direction of arrow (2) shown in the figure while moving it in the direction of arrow (1) shown in the figure. (VIN: Except 3MZ)

am3uuw00010623

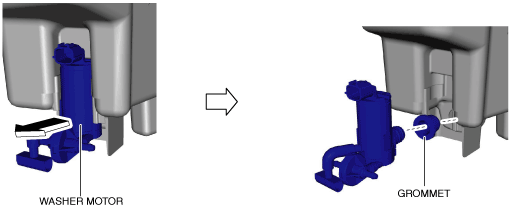

7.  Remove the washer motor in the direction of arrow shown in the figure. (VIN: 3MZ)

am3uuw00012805

8.  Remove the grommet.

9.  Install in the reverse order of removal.
