ELECTRIC VARIABLE VALVE TIMING ACTUATOR INSPECTION [SKYACTIV-G 2.0]

id0110h2555500

Warning

•  A hot engine can cause severe burns. Turn off the engine and wait until it is cool before servicing.

Caution

•  Do not disassemble the electric variable valve timing actuator because it is a precision unit.

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

3.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

4.  Remove the coolant reserve tank with the hose still connected and set it out of the way. (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

5.  Remove the electric variable valve timing motor/driver. (See ELECTRIC VARIABLE VALVE TIMING MOTOR/DRIVER REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

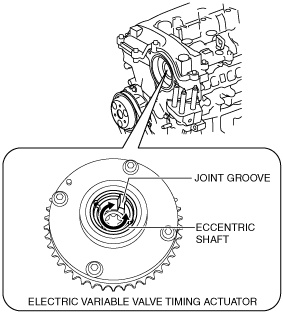

6.  Rotate the eccentric shaft of the electric variable valve timing actuator by hand and verify that it rotates smoothly.

am3uuw00009039

•  If it does not rotate smoothly, replace the electric variable valve timing actuator. (See ELECTRIC VARIABLE VALVE TIMING ACTUATOR, HYDRAULIC VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

Note

•  Hook a finger onto the joint groove of the eccentric shaft to rotate the shaft easily.

•  The eccentric shaft stops rotating at the maximum retard position when it is rotated counterclockwise as viewed from the front, and at the maximum advance position when rotated clockwise.

•  The eccentric shaft rotates 15.8 turns from the maximum retard position to the maximum advance position.

7.  Install in the reverse order of removal.
