COOLING SYSTEM [SKYACTIV-G 2.0]

id0112h4002800

Outline

• Passing water resistance is reduced by improvement of the engine coolant passage shape.

• Pump efficiency is improved by changing the water pump impeller to the closed impeller.

Structural Vew

am3uun00002195

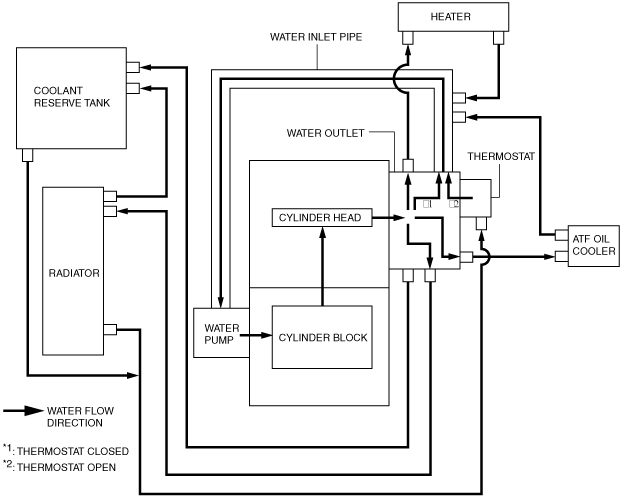

Flow Chart

am3zzn00003446

Structure

• Consists of the following parts:

Radiator	(See RADIATOR [SKYACTIV-G 2.0].)
Cooling system cap, coolant reserve tank	(See COOLING SYSTEM CAP, COOLANT RESERVE TANK [SKYACTIV-G 2.0].)
Thermostat	(See THERMOSTAT [SKYACTIV-G 2.0].)
Water pump	(See WATER PUMP [SKYACTIV-G 2.0].)
Cooling fan component	(See COOLING FAN COMPONENT [SKYACTIV-G 2.0].)
Fan control module	(See FAN CONTROL MODULE [SKYACTIV-G 2.0].)
