EMISSION SYSTEM LOCATION INDEX [MZR 2.0, MZR 2.5]

id0116f9803700

Engine Compartment Side

am3zzw00005413

1	PCV valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION [MZR 2.0, MZR 2.5].)
2	EGR valve (See EGR VALVE REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See EGR VALVE INSPECTION [MZR 2.0, MZR 2.5].)
3	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)
4	Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See PURGE SOLENOID VALVE INSPECTION [MZR 2.0, MZR 2.5].)

Exhaust System Side

MZR 2.0

am3zzw00012160

MZR 2.5

am3zzw00012161

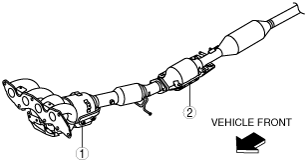

1	WU-TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)
2	TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

Fuel Tank Side

MZR 2.0

am3zzw00012162

MZR 2.5

am3zzw00007799

1	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)
2	Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See ROLLOVER VALVE INSPECTION [MZR 2.0, MZR 2.5].) (See CHECK VALVE (TWO-WAY) REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See CHECK VALVE (TWO-WAY) INSPECTION [MZR 2.0, MZR 2.5].)
3	Fuel-filler cap (See FUEL TANK REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)
4	Charcoal canister (See CHARCOAL CANISTER REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See CHARCOAL CANISTER INSPECTION [MZR 2.0, MZR 2.5].)
