UP SWITCH INSPECTION [FS5A-EL]

id051721310000

1.  Perform the following procedures.

(1)  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)
(2)  Disconnect the negative battery cable.
(3)  Remove the console. (See CONSOLE REMOVAL/INSTALLATION.)
(4)  Disconnect the selector lever component connector.

L.H.D.

am3uuw00002997

R.H.D.

am3zzw00005087

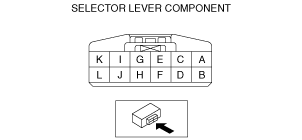

2.  Inspect the continuity between the selector lever component terminals B and H.

am3uuw00002435

•  If there is any malfunction, replace the selector lever component. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

Up switch specification

Test condition

Continuity
Selector lever is in the M range (+) side position
Continuity
Selector lever is not in the M range (+) side position
No continuity
