CONTROL VALVE BODY REMOVAL/INSTALLATION [FW6A-EL]
id0517h1118000
On-Vehicle Removal
am3zzw00012653
|
1. Select the selector lever to P position.
2. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
3. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
4. Remove the aerodynamic under cover No.2. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.)
5. Clean the transaxle exterior throughout with a steam cleaner or cleaning solvents.
6. Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
7. Disconnect the control valve body connector.
am3uuw00008282
|
8. Remove the hose clamp.
am3uuw00008283
|
9. Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [FW6A-EL].)
10. Remove the oil pan.
11. Remove the oil strainer.
am3uuw00008284
|
12. Remove the oil strainer O-ring.
am3uuw00008285
|
13. Remove the control valve body.
am3uuw00008287
|
14. Remove the oil seal (control valve body). (See OIL SEAL (CONTROL VALVE BODY) REPLACEMENT [FW6A-EL].)
15. Remove the gasket from the transaxle case.
am3uuw00009213
|
On-Vehicle Installation
1. Install the gasket to the transaxle case.
am3uuw00009185
|
2. Install the dowel pin to the control valve body.
am3uuw00009186
|

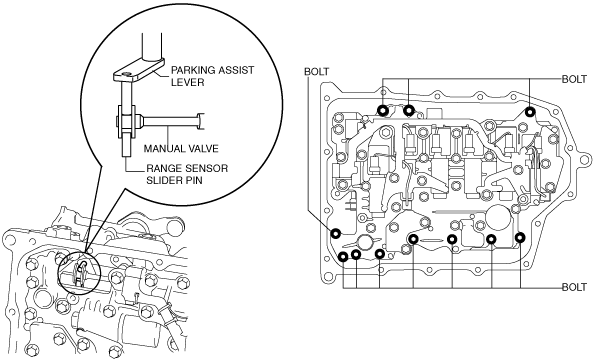

3. Install the control valve body so that the parking assist lever component is engaged in the gap between the two surfaces of the spool part of the manual valve.
ac5wzw00004614
|
am3zzw00012655
|
4. Move the manual valve in both directions of the arrow and verify that the manual valve is correctly connected to the parking assist lever component and the slider pin for the range sensor.
am3zzw00012656
|
5. Install the oil strainer O-ring.
am3uuw00008288
|
6. Install the oil strainer.
am3uuw00008284
|
7. Apply a light coat of silicon sealant (TB1217E) to the contact surfaces of the oil pan and transaxle case.
am3uuw00008289
|
8. Install the oil pan with new bolts before the applied sealant starts to harden.
am3zzw00013473
|
9. Install the aerodynamic under cover No.2. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.)
10. Install the oil seal (control valve body). (See OIL SEAL (CONTROL VALVE BODY) REPLACEMENT [FW6A-EL].)

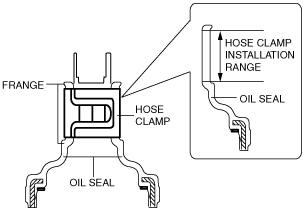

11. Install a new hose clamp to the position shown in the figure.
ac5wzw00002756
|
ac5wzw00002909
|
12. Connect the control valve body connector.
am3uuw00008282
|
13. Add the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [FW6A-EL].)
14. Install the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
15. Connect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
16. Install the battery cover. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
17. Perform the “Initial Learning” (Control valve body Replacement). (See INITIAL LEARNING [FW6A-EL].)
18. Perform the “Mechanical System Test”. (See MECHANICAL SYSTEM TEST [FW6A-EL].)
19. Perform the “Road Test”. (See ROAD TEST [FW6A-EL].)
