STEERING SHIFT SWITCH INSPECTION [FW6A-EL]

id0517h1600700

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

2.  Disconnect the negative battery cable and wait for 1 min or more. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

3.  Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

4.  Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

5.  Disconnect the steering shift switch (LH) and (RH) connectors. (See STEERING SWITCH REMOVAL/INSTALLATION.)

6.  Inspect the steering shift switch (LH).

(1)  Verify that the continuity between the steering shift switch (LH) terminals according to the following table.

am3zzw00012707

•  If verified, go to the next step.

•  If not as verified, replace the steering shift switch (LH). (See STEERING SWITCH REMOVAL/INSTALLATION.)

(2)  Apply battery positive voltage to steering shift switch (LH) terminal F, and terminal B to ground.

aaxjjw00010126

(3)  Verify that the LED illuminates.

•  If verified, go to the next step.

•  If not as verified, replace the steering shift switch (LH). (See STEERING SWITCH REMOVAL/INSTALLATION.)

7.  Inspect the steering shift switch (RH).

(1)  Verify that the resistance between the steering shift switch (RH) terminals according to the following table.

am3zzw00012708

•  If verified, go to the next step.

•  If not as verified, replace the steering shift switch (RH). (See STEERING SWITCH REMOVAL/INSTALLATION.)

(2)  Apply battery positive voltage to steering shift switch (RH) terminal F, and terminal C to ground.

aaxjjw00010128

(3)  Verify that the LED illuminates.

•  If verified, go to the next step.

•  If not as verified, replace the steering shift switch (RH). (See STEERING SWITCH REMOVAL/INSTALLATION.)

8.  Reconnect the steering shift switch (LH) and (RH) connectors. (See STEERING SWITCH REMOVAL/INSTALLATION.)

9.  Inspect the steering switch.

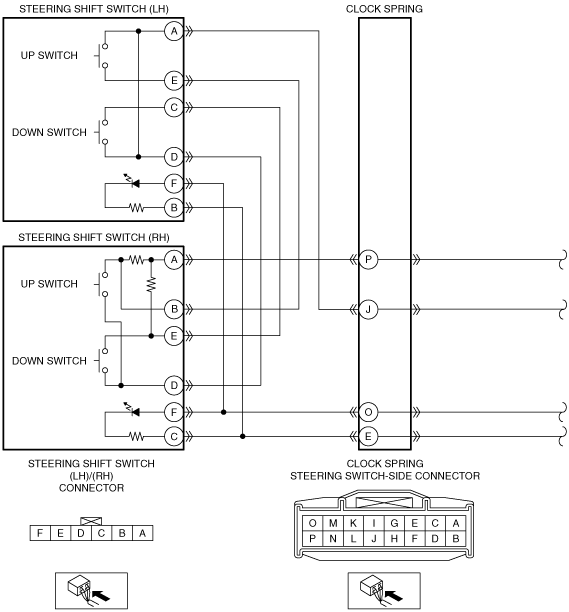

(1)  Verify that the continuity between the following terminals.

am3zzw00012709

•  Clock spring (steering switch-side connector) terminal P—Steering shift switch (RH) terminal A

•  Clock spring (steering switch-side connector) terminal J—Steering shift switch (LH) terminal A

•  Clock spring (steering switch-side connector) terminal O—Steering shift switch (LH) terminal F

•  Clock spring (steering switch-side connector) terminal O—Steering shift switch (RH) terminal F

•  Clock spring (steering switch-side connector) terminal E—Steering shift switch (LH) terminal B

•  Clock spring (steering switch-side connector) terminal E—Steering shift switch (RH) terminal C

•  Steering shift switch (LH) terminal E—Steering shift switch (RH) terminal B

•  Steering shift switch (LH) terminal C—Steering shift switch (RH) terminal E

•  Steering shift switch (LH) terminal D—Steering shift switch (RH) terminal D

―  If not as verified, replace the steering switch. (See STEERING SWITCH REMOVAL/INSTALLATION.)
