TCM REMOVAL/INSTALLATION [DJVA-EL]

id051901287300

1.  Perform the following procedures.

(1)  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

(2)  Disconnect the negative battery cable.

(3)  Remove the dashboard under cover. (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(4)  Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION.)

(5)  Partially peel back the floor covering. (See FLOOR COVERING REMOVAL/INSTALLATION.)

(6)  Disconnect the BCM from body. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [R.H.D.].)

2.  Remove in the order indicated in the table.

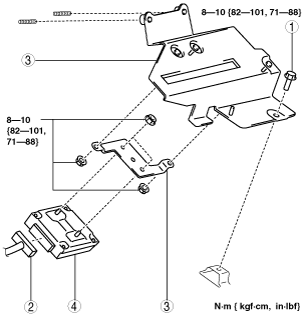

am3zzw00008507

1	TCM bracket installation bolt
2	Connector
3	TCM bracket
4	TCM

3.  Install in the reverse order of removal.

4.  Perform the “TCM Learning”. (See TCM LEARNING [DJVA-EL].)
