CVT (CONTINUOUSLY VARIABLE TRANSAXLE) SHIFT MECHANISM REMOVAL/INSTALLATION

id052000275800


Selector Lever Removal/Installation

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

2.  Disconnect the negative battery cable.

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

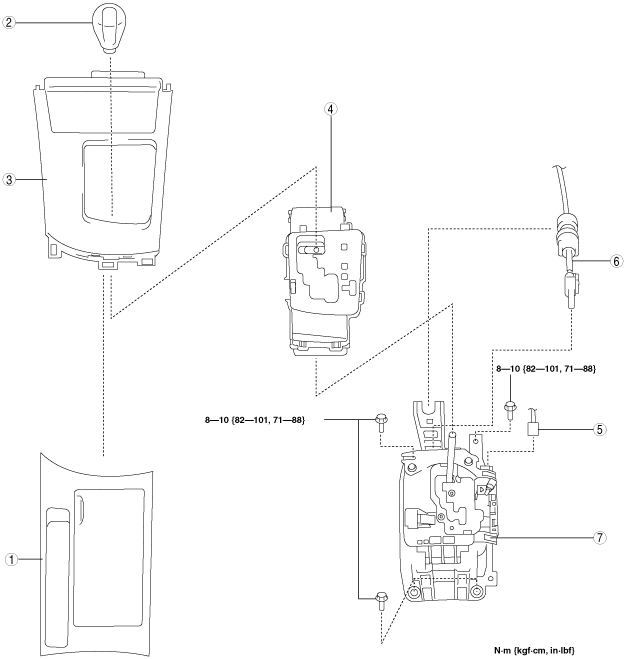

am3zzw00005089

1
Upper panel
(See UPPER PANEL REMOVAL/INSTALLATION.)
2
Knob
3
Shift panel
(See Shift panel and indicator panel removal note.)
(See Indicator panel and shift panel installation note.)
4
Indicator panel
(See Shift panel and indicator panel removal note.)
(See Indicator panel and shift panel installation note.)
5
Connector
6
Selector cable (selector lever side)
(See Selector cable (selector lever side) installation note.)
7
Selector lever
(See Selector lever installation note.)


Shift panel and indicator panel removal note

1.  Remove the shift panel and indicator panel as a single unit.

(1)  Release the hooks securing the shift panel and console, and then release the hooks securing the shift panel and ashtray panel. (See SHIFT PANEL REMOVAL/INSTALLATION.)
(2)  Lift up the shift panel and indicator panel and disconnect the bulb socket from the indicator panel.
am3zzw00005057
(3)  Remove the shift panel and indicator panel from the selector lever as a single unit.
am3zzw00005058

2.  Detach the hooks as shown in the figure and remove the indicator panel from the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION.)

am3zzw00005059


Selector lever installation note

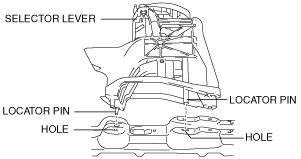

1.  Align the locator pin with the hole in the floor as shown in the figure and install the selector lever.

am3zzw00005103

2.  Tighten the selector lever installation bolts.

am3zzw00005060

Tightening torque
8—10 N·m {82—101 kgf·cm, 71—88 in·lbf}


Selector cable (selector lever side) installation note

1.  Install the selector cable end (selector lever side) as shown in the figure.

am3zzw00005061

2.  Install the cable outer end (selector lever side) to the selector cable bracket as shown in the figure.

am3uuw00003062

3.  Adjust the selector cable. (See Selector Cable Adjustment.)


Indicator panel and shift panel installation note

1.  Install the shift panel to the indicator panel.

am3zzw00005062

2.  Install the shift panel and indicator panel to the selector lever as a single unit.

am3zzw00005058

3.  Connect the bulb socket to the indicator panel.

am3zzw00005063

4.  Install the shift panel and indicator panel to the console and ashtray panel as a single unit. (See SHIFT PANEL REMOVAL/INSTALLATION.)


Selector Cable Removal/Installation

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

2.  Disconnect the negative battery cable.

3.  Remove the battery component (ex: battery, battery tray and PCM component). (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

4.  Remove the fresh-air duct and the air cleaner as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

5.  Remove the Aerodynamic under cover NO.2. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.)

6.  Remove the tunnel member (rear). (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

7.  Remove the insulator (front) installation nuts and set the insulator (front) aside. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

8.  Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION.)

9.  Remove the knob. (SeeSelector Lever Removal/Installation .)

10.  Remove the shift panel and indicator panel as a single unit.

(1)  Release the hooks securing the shift panel and console, and then release the hooks securing the shift panel and ashtray panel. (See SHIFT PANEL REMOVAL/INSTALLATION.)
(2)  Lift up the shift panel and indicator panel and disconnect the bulb socket from the indicator panel.
am3zzw00005064
(3)  Remove the shift panel and indicator panel from the selector lever as a single unit.
am3zzw00005058

11.  Remove the console. (See CONSOLE REMOVAL/INSTALLATION.)

12.  Disconnect the drain hose connected to A/C unit. (See A/C UNIT REMOVAL/INSTALLATION.)

am3uuw00004384

13.  Remove in the order indicated in the table.

14.  Install in reverse of removal.

DJVA-EL

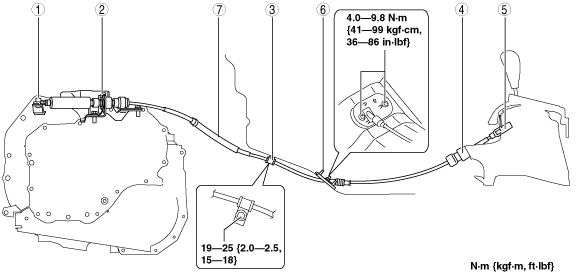

am3zzw00008473

1
Selector cable end (transaxle side)
(See Selector cable end (transaxle side) removal note.)
2
Cable outer end (transaxle side)
3
Clip
4
Cable outer end (selector lever side)
5
Selector cable end (selector lever side)
6
Grommet
7
Selector cable
(SeeSelector cable installation note.)


Selector cable end (transaxle side) removal note

1.  Remove the clip, and then disconnect the selector cable end from the manual shaft lever.

am3zzw00008248


Selector cable installation note

1.  Install the grommet as shown in the figure.

am3uuw00003066

Tightening torque
4.0—9.8 N·m {41—99 kgf·cm, 36—86 in·lbf}

2.  Install the selector cable end (selector lever side) as shown in the figure.

am3zzw00005065

3.  Install the cable outer end (selector lever side) to the selector cable bracket as shown in the figure.

am3uuw00003062

4.  Install the clip as shown in the figure and tighten the nut.

am3zzw00008474

Tightening torque
19—25 N·m {2.0—2.5 kgf·m, 15—18 ft·lbf}

5.  Install the selector cable end (transaxle side) and the cable outer end (transaxle side).

Caution
•  When installing selector cable, make sure the boot is not twisted.
•  Bending the selector cable in the manner shown in the figure will damage the cable and it may become loose when shifted. When installing the selector cable, hold it straight.
am3zzw00007418
(1)  Install the cable outer end (transaxle side) to the selector cable bracket as shown in the figure.
am3uuw00003062
(2)  Install the clip to the selector cable end (transaxle side) as shown in the figure.
am3uuw00003063
(3)  Install the selector cable end (transaxle side) to the manual shaft lever as shown in the figure.
am3uuw00003064

6.  Verify that the selector cable is securely installed.

7.  Adjust the selector cable. (See Selector Cable Adjustment.)


Bulb Removal/Installation

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

2.  Disconnect the negative battery cable.

3.  Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION.)

4.  Remove the knob. (See Selector Lever Removal/Installation .)

5.  Remove the shift panel and indicator panel as a single unit.

(1)  Release the hooks securing the shift panel and console, and then release the hooks securing the shift panel and ashtray panel. (See SHIFT PANEL REMOVAL/INSTALLATION.)
(2)  Lift up the shift panel and indicator panel and disconnect the bulb socket from the indicator panel.
am3zzw00005064
(3)  Remove the shift panel and indicator pane from the selector lever as a single unit.
am3zzw00005058

6.  Remove the bulb from the bulb socket.

am3zzw00008250

7.  Install in the reverse order of removal.


Selector Cable Adjustment

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

2.  Disconnect the negative battery cable.

3.  Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION.)

4.  Remove the knob. (See Selector Lever Removal/Installation .)

5.  Remove the shift panel and indicator panel as a single unit.

(1)  Release the hooks securing the shift panel and console, and then release the hooks securing the shift panel and ashtray panel. (See SHIFT PANEL REMOVAL/INSTALLATION.)
(2)  Lift up the shift panel and indicator panel and disconnect the bulb socket from the indicator panel.
am3zzw00005064
(3)  Remove the shift panel and indicator panel from the selector lever as a single unit.
am3zzw00005058

6.  Shift the selector lever to the P position.

7.  Unlock the lock piece of the selector cable end (selector lever side) in the order as shown in the figure.

am3zzw00005104

8.  Verify that the manual shaft is in the P position.

9.  Lock the lock piece and safety lock of the selector cable end (selector lever side) in the order as shown in the figure.

am3zzw00005105
