EXHAUST SYSTEM REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6]

id0115aq800200

Warning
•  A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.
Note
•  If the tailpipe cut and main silencer removal work are performed at the same time, the rear crossmember removal is unnecessary.

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

3.  Remove in the order indicated in the table.

4.  Remove the exhaust system insulator. (See Exhaust System Insulator Removal/Installation Note.)

5.  Install in the reverse order of removal.

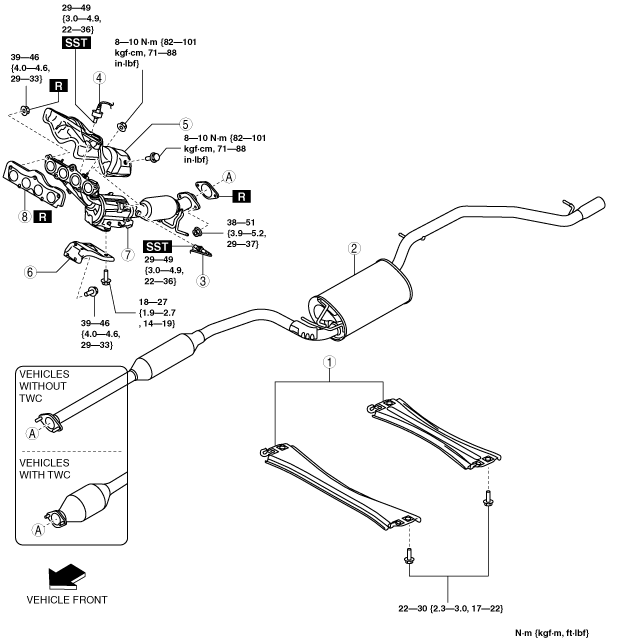

am3zzw00012214

1
Tunnel member
2
Main silencer
(See Main Silencer Removal Note (Only If Tailpipe Is Not Cut Off).)
3
HO2S
(See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)
4
A/F sensor
(See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)
5
Exhaust manifold insulator
(See Exhaust Manifold Insulator Removal Note.)
6
Exhaust manifold bracket
7
Exhaust manifold
(See Exhaust Manifold Removal Note.)
(See Exhaust Manifold Installation Note.)
8
Exhaust manifold gasket


Exhaust System Insulator Removal/Installation Note

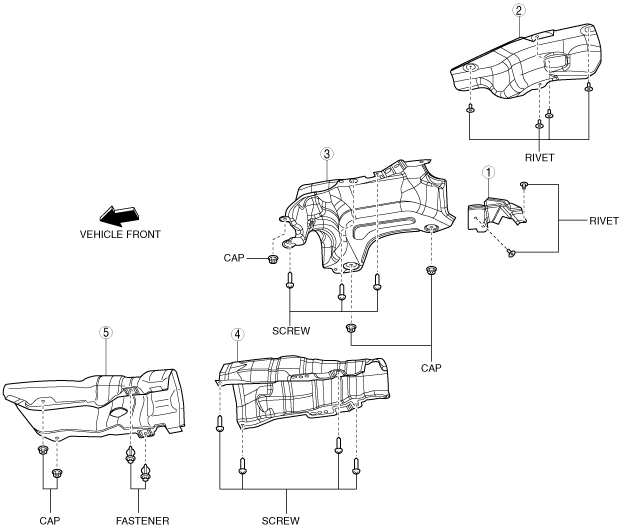

am3zzw00012215

1
Insulator (rear No.1)
(See Insulator (rear No.1, No.2) removal note.)
2
Insulator (rear No.2)
(See Insulator (rear No.1, No.2) removal note.)
3
Insulator (middle No.1)
4
Insulator (middle No.2)
5
Insulator (front)


Insulator (rear No.1, No.2) removal note

Note
•  The insulator rear is installed using rivets.
•  When reinstalling the rivet, install the same rivet or M5 bolt and nut.

1.  Push out the mandrel using a hammer and punch (2—2.8 mm {0.08—0.11 in} diameter).

am3zzw00005208

2.  Remove the flange using a drill (5 mm {0.20 in} drill bit).

am6zzw00004376


Main Silencer Removal Note (Only If Tailpipe Is Not Cut Off)

1.  Remove the following parts:

(1)  Rear auto leveling sensor (Vehicles with AFS) (See AUTO LEVELING SENSOR REMOVAL/INSTALLATION.)
(2)  Rear stabilizer (See REAR STABILIZER REMOVAL/INSTALLATION.)
(3)  Rear coil spring (See REAR COIL SPRING REMOVAL/INSTALLATION.)
(4)  Rear lower arm (See REAR LOWER ARM REMOVAL/INSTALLATION.)
(5)  Rear crossmember (See REAR CROSSMEMBER REMOVAL/INSTALLATION.)

2.  Remove the main silencer.


Exhaust Manifold Insulator Removal Note

1.  Remove the air cleaner cover. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

2.  Remove the EGR pipe (exhaust manifold side). (Vehicles with EGR system) (See EGR PIPE REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

3.  Remove the exhaust manifold insulator.


Exhaust Manifold Removal Note

1.  Remove the following parts:

(1)  Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)
(2)  Disconnect the steering shaft from the steering gear and linkage. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)
(3)  Front auto leveling sensor (Vehicles with AFS) (See AUTO LEVELING SENSOR REMOVAL/INSTALLATION.)
(4)  Front ABS wheel-speed sensor wiring harness connector (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.)
(5)  Front crossmember component (See FRONT CROSSMEMBER REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6, MZR 2.0, MZR 2.3 DISI Turbo, MZR 2.5, MZ-CD 1.6].)

2.  Support the flexible pipe with a support wrap or splint as shown in the figure.

am3zzw00008560

3.  Remove the exhaust manifold.


Exhaust Manifold Installation Note

1.  Tighten the exhaust manifold installation nuts in the order shown in the figure.

am3zzw00005209
