REAR HEAT DUCT REMOVAL/INSTALLATION

id071100800900

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)

2.  Remove the following parts:

(1)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Console (See CONSOLE REMOVAL/INSTALLATION.)

(3)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(4)  Fuel-filler lid opener lever cover (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

3.  Turn the floor covering over.

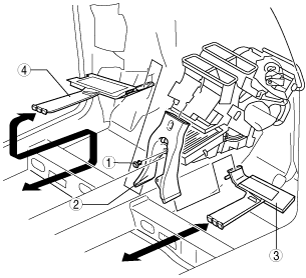

4.  Remove in the order indicated in the table.

am3uuw00004009

1	Fastener
2	Rear heat duct (1)
3	Rear heat duct (2)
4	Rear heat duct (3)

5.  Install in the reverse order of removal.
