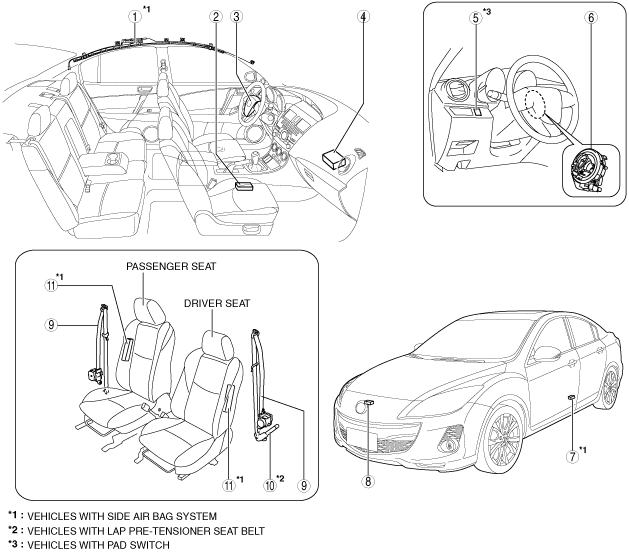

AIR BAG SYSTEM LOCATION INDEX

id081000805300

am3zzw00011097

1	Curtain air bag module (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION.) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES.)
2	SAS control module (See SAS CONTROL MODULE REMOVAL/INSTALLATION.) (See SAS CONTROL MODULE CONNECTOR COVER REMOVAL/INSTALLATION.) (See SAS CONTROL MODULE CONFIGURATION.)
3	Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES.)
4	Passenger-side air bag module (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES.)
5	Passenger air bag deactivation (PAD) switch (See PASSENGER AIR BAG DEACTIVATION (PAD) SWITCH REMOVAL/INSTALLATION.) (See PASSENGER AIR BAG DEACTIVATION (PAD) SWITCH INSPECTION.)
6	Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION.) (See CLOCK SPRING INSPECTION.) (See CLOCK SPRING ADJUSTMENT.)
7	Side air bag sensor (See SIDE AIR BAG SENSOR REMOVAL/INSTALLATION.)
8	Crash zone sensor (See CRASH ZONE SENSOR REMOVAL/INSTALLATION.)
9	Pre-tensioner seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES.)
10	Lap pre-tensioner seat belt (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES.)
11	Side air bag module (See SIDE AIR BAG MODULE REMOVAL/INSTALLATION.) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES.)
