AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES

id081000801100

Warning
•  A live (undeployed) air bag module or pre-tensioner seat belt may accidentally operate (deploy) when it is disposed of and cause serious injury. Do not dispose of a live (undeployed) air bag module and pre-tensioner seat belt. If the SSTs (Deployment tool and Adapter harness) are not available, consult the nearest Mazda representative for assistance.
Caution
•  Deploying the air bag modules and pre-tensioner seat belts inside the vehicle may cause damage to the vehicle interior. When the vehicle is not to be scrapped, always deploy the air bag modules and pre-tensioner seat belts outside the vehicle.
•  If the vehicle is to be scrapped, or when disposing of any air bag modules or pre-tensioner seat belts, operate (deploy) them inside the vehicle by following the deployment procedure below and using the SST (Deployment tool).
•  When disposing of an operated (deployed) air bag module and pre-tensioner seat belt, refer to “AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DISPOSAL PROCEDURES”.

Deployment Procedure for Inside of Vehicle

1.  Inspect the SST (Deployment tool). (See INSPECTION OF SST (DEPLOYMENT TOOL).)

2.  Move the vehicle to an open space, away from strong winds, and close all of the vehicle doors and windows.

3.  Switch the ignition to off.

4.  Disconnect the negative battery cable and wait for 1 min or more.

5.  Follow the procedure below for operating (deploying) the applicable air bag module or pre-tensioner seat belt.


Driver-side Air Bag Module

1.  Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

2.  Connect the SST (Adapter harness) to the driver-side air bag module as shown in the figure.

am3zzw00005809

3.  Install the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

4.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am3zzw00005810

5.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

6.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

7.  Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

8.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the air bag module.

am3zzw00009706

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can get burned. Do not touch the air bag module for at least 15 min after deployment.

9.  Disconnect the SST (Deployment tool) form the SST (Adapter harness).


Passenger-side Air Bag Module

1.  Remove the following parts:

(1)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)
(2)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
(3)  Selector lever knob (ATX/CVT) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.) (See CVT (CONTINUOUSLY VARIABLE TRANSAXLE) SHIFT MECHANISM REMOVAL/INSTALLATION.)
(4)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
(5)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
(6)  Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)
(7)  Console (See CONSOLE REMOVAL/INSTALLATION.)
(8)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(9)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(10)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
(11)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
(12)  Lower panel (passenger-side) (See LOWER PANEL REMOVAL/INSTALLATION.)
(13)  Shower duct (passenger-side) (See A/C UNIT REMOVAL/INSTALLATION.)
(14)  Parking sensor control module (Vehicles with parking sensor) (See PARKING SENSOR CONTROL MODULE REMOVAL/INSTALLATION.)

2.  Disconnect the passenger-side air bag module connector.

am3zzw00005811

3.  Connect the SST (Adapter harness) to the passenger-side air bag module as shown in the figure.

4.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am3zzw00005810

5.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

6.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

7.  Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

8.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the air bag module.

am3zzw00009706

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

9.  Disconnect the SST (Deployment tool) form the SST (Adapter harness).


Side Air Bag Module

1.  Disconnect the side air bag module connector. (Driver side with power seat)

am3zzw00011090

2.  Connect the SST (Adapter harness) to the side air bag module as shown in the figure.

am3zzw00008801

3.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am3uuw00004230

4.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

5.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

6.  Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

7.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the side air bag module.

am3zzw00009706

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

8.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Curtain Air Bag Module

1.  Remove the following parts:

(1)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(3)  Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(4)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(5)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(6)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
(7)  Trunk side upper trim (5HB) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

2.  Partially peel back the seaming welt.

3.  Remove the C-pillar trim. (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

4.  Disconnect the curtain air bag module connector.

am3uuw00004231

5.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am6xuw00002036

6.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

7.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

8.  Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

9.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the curtain air bag module.

am3zzw00009706

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

10.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Pre-tensioner Seat Belt

1.  Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

2.  Remove the rear scuff plate. (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

3.  Remove the B-pillar lower trim. (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

4.  Remove the pre-tensioner seat belt and connect the SST (Adapter harness) as shown in the figure. (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

am3uuw00004232

5.  Install the pre-tensioner seat belt.

6.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am6xuw00002032

7.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

8.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

9.  Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

10.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the pre-tensioner seat belt.

am3zzw00009706

Warning
•  The pre-tensioner seat belt is very hot immediately after it is operated (deployed). You can be burned. Do not touch the pre-tensioner seat belt for at least 15 min after deployment.

11.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Lap Pre-tensioner Seat Belt

1.  Remove the lap pre-tensioner seat belt and connect the SST (Adapter harness) as shown in the figure. (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

am3uuw00004233

2.  Install the lap pre-tensioner seat belt.

3.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am3uuw00004234

4.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

5.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

6.  Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

7.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the lap pre-tensioner seat belt.

am3zzw00009706

Warning
•  The lap pre-tensioner seat belt is very hot immediately after it is operated (deployed). You can be burned. Do not touch the lap pre-tensioner seat belt for at least 15 min after deployment.

8.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Deployment Procedure for Outside of Vehicle

1.  Inspect the SST (Deployment tool). (See INSPECTION OF SST (DEPLOYMENT TOOL).)

2.  Switch the ignition to off.

3.  Disconnect the negative battery cable and wait for 1 min or more.

4.  Follow the procedure below for operating (deploying) the applicable air bag module, pre-tensioner seat belt or lap pre-tensioner seat belt.


Driver-side Air Bag Module

1.  Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

2.  Install the bolts to the driver-side air bag module as shown in the figure, and connect the SST (Adapter harness).

am3zzw00005812

3.  Place the driver-side air bag module on the center of the tire wheel with the padded surface facing up. To secure the air bag module to the tire wheel, wrap a wire (cross section 1.25 mm2{0.002 in2} or more) through the wheel and the bolt installation holes of the air bag module at least 4 times.

am3zzw00005813

Warning
•  If the air bag module is not properly installed to the tire wheel, serious injury may occur when the module is operated (deployed). When installing the air bag module to the tire wheel, make sure the padded surface is facing up.

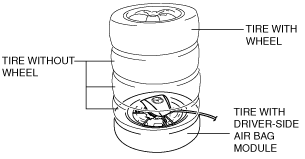

4.  Stack three tires without wheels on top of the tire with the driver-side air bag module, and then stack another tire with a wheel on the very top.

am3uuw00004237

5.  Secure the tires with wire.

am6zzw00000966

6.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am3zzw00005814

7.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

8.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

9.  Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

10.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the air bag module.

am3zzw00009706

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

11.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Passenger-side Air Bag Module

1.  Remove the following parts:

(1)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)
(2)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
(3)  Selector lever knob (ATX/CVT) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.) (See CVT (CONTINUOUSLY VARIABLE TRANSAXLE) SHIFT MECHANISM REMOVAL/INSTALLATION.)
(4)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
(5)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
(6)  Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)
(7)  Console (See CONSOLE REMOVAL/INSTALLATION.)
(8)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(9)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(10)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
(11)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
(12)  Lower panel (passenger-side) (See LOWER PANEL REMOVAL/INSTALLATION.)
(13)  Shower duct (passenger-side) (See A/C UNIT REMOVAL/INSTALLATION.)
(14)  Parking sensor control module (Vehicles with parking sensor) (See PARKING SENSOR CONTROL MODULE REMOVAL/INSTALLATION.)

2.  Disconnect the passenger-side air bag module connector.

am3zzw00005815

3.  Connect the SST (Adapter harness) to the passenger-side air bag module as shown in the figure.

4.  Place the padded surface of the passenger-side air bag module facing the center of the tire as shown in the figure. To secure the air bag module to the tire wheel, wrap a wire (cross section 1.25 mm2{0.002 in2} or more) through the tire and the bolt installation holes at least 4 times as shown in the figure.

am6zzw00000969

Warning
•  If the air bag module is not properly secured to the tire, the tires may fall over by the impact of operation (deployment) and cause serious injury. To prevent this, secure the air bag module properly with the padded surface facing the center of the tire.

5.  Stack the tire with the passenger-side air bag module on top of two tires without wheels. Stack a tire without a wheel on top of the tire with the passenger-side air bag module, and then stack another tire with a wheel on the very top.

am6xuw00001824

6.  Secure the tires with wire.

am6zzw00000966

7.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am3zzw00005816

8.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

9.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

10.  Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

11.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the air bag module.

am3zzw00009706

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

12.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Side Air Bag Module

1.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

2.  Remove the front seat back trim and pad. (See FRONT SEAT BACK TRIM REMOVAL/INSTALLATION.)

3.  Remove the side air bag module. (See SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

4.  Connect the SST (Adapter harness) to the side air bag module as shown in the figure.

am3uuw00004239

5.  Put the side air bag module inside the tire and secure it to the tire by wrapping a wire (cross section of 1.25mm2{0.002in2} or more) through the tire and the bolt at least 4 times.

am3uuw00004240

Warning
•  If the air bag module is not properly secured to the tire, the tires may fall over by the impact of operation (deployment) and cause serious injury. To prevent this, secure the air bag module properly with the padded surface facing the center of the tire.

6.  Stack the tire with the side air bag module on top of two tires without wheels. Stack a tire without a wheel on top of the tire with the side air bag module, and then stack another tire with a wheel on the very top.

am2zzw00000372

7.  Secure the tires with wire.

am6zzw00000966

8.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am3uuw00004241

9.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

10.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

11.  Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

12.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the side air bag module.

am3zzw00009706

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

13.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Curtain Air Bag Module

1.  Shift to the D (ATX/CVT) or 4th gear (MTX) position. (4SD)

2.  Disconnect the negative battery cable.

3.  Partially peel back the seaming welts.

4.  Remove the following parts:

(1)  Sunroof seaming welt (vehicles with sunroof)
(2)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(3)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(4)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(5)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(6)  Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(7)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(8)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(9)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
(10)  Trunk side upper trim (5HB) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
(11)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(12)  Map light (See MAP LIGHT REMOVAL/INSTALLATION.)
(13)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
(14)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

5.  Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.)

6.  Remove the curtain air bag module. (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION.)

7.  Cut off the air bag part of the curtain air bag module at the position shown in the figure.

am3uuw00004242

Warning
•  Be sure not to crush the pipe on the side where it is cut. If it is crushed completely, the interior pressure of the pipe will build up and can cause it to explode during air bag module operation (deployment).

8.  Disconnect the curtain air bag module connector.

am3uuw00004243

9.  Connect the SST (Adapter harness) to the curtain air bag module as shown in the figure.

10.  Secure the curtain air bag module to the tire, by wrapping a wire (cross section 1.25 mm2{0.002 in2} or more) through the tire and the bolt installation holes at least 4 times as shown in the figure.

am3uuw00004244

Warning
•  If the air bag module is not properly installed to the tire, serious injury may occur when the module is operated (deployed). Make sure to install the air bag module securely.

11.  Stack the tire with the curtain air bag module on top of two tires without wheels. Stack a tire without a wheel on top of the tire with the curtain air bag module, and then stack another tire with a wheel on the very top.

am3uuw00004245

12.  Secure the tires with wire.

am6zzw00000966

13.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am3uuw00004246

14.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

15.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

16.  Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

17.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the curtain air bag module.

am3zzw00009706

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

18.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Pre-tensioner Seat Belt

1.  Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

2.  Remove the rear scuff plate. (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

3.  Remove the B-pillar lower trim. (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

4.  Remove the pre-tensioner seat belt and connect the SST (Adapter harness) as shown in the figure. (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

am3uuw00004232

5.  Put the pre-tensioner seat belt inside the tire and secure it to the tire by wrapping a wire (cross section of 1.25mm2{0.002in2} or more) through the tire and the bolt installation holes at least 4 times.

am6zzw00000977

Warning
•  If the pre-tensioner seat belt is not properly installed to the tire, serious injury may occur when the pre-tensioner part is operated (deployed). When installing the pre-tensioner seat belt to the tire, make sure the pre-tensioner part is inside the tire.

6.  Stack the tire with the pre-tensioner seat belt on to of two tires without wheels. Stack a tire without a wheel on top of the tire with the pre-tensioner seat belt, and then stack another tire with a wheel on the very top.

am2zzw00000379

7.  Secure the tires with wire.

am6zzw00000966

8.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am6xuw00002034

9.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

10.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

11.  Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

12.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the pre-tensioner seat belt.

am3zzw00009706

Warning
•  The pre-tensioner seat belt is very hot immediately after it is operated (deployed). You can be burned. Do not touch the pre-tensioner seat belt for at least 15 min after deployment.

13.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Lap Pre-tensioner Seat Belt

1.  Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

2.  Remove the rear scuff plate. (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

3.  Remove the B-pillar lower trim. (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

4.  Cut off the seat belt part of the lap pre-tensioner seat belt at the position shown in the figure.

am3uuw00004247

5.  Remove the lap pre-tensioner seat belt and connect the SST (Adapter harness) as shown in the figure. (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

am3uuw00004233

6.  Secure the lap pre-tensioner seat belt to the vise as shown in the figure. Set the lap pre-tensioner piston so that the ejection end is pointed downward. Place the bottom surface of the housing so that it contacts the upper surface of the vise.

am3zzw00012234

Warning
•  When the lap pre-tensioner seat belt operates (deploys), the piston ejects from the end of the cylinder. If an object lies in the ejection path within 40 mm of the cylinder end, the piston could hit the object, rebound and hit the lap pre-tensioner seat belt. The force of the piston hitting the lap pre-tensioner seat belt could dislodge it from the vice and cause injury. When securing the lap pre-tensioner in the vice, position it so that there is no obstruction in the ejection path within 40 mm of the cylinder end.

7.  Put the lap pre-tensioner seat belt secure it to the vise by hold a wire (cross section of 1.25mm2{0.002in2} or more) through the shaft of vice and the lap pre-tensioner seat belt bracket hole at least 4 times.

am3zzw00011091

Warning
•  If the lap pre-tensioner seat belt is not properly installed to the vice, serious injury may occur when the lap pre-tensioner part is operated (deployed). When installing the lap pre-tensioner seat belt to the vice, make sure the lap pre-tensioner part is properly installed to the vise.

8.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am3zzw00012235

9.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

10.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

11.  Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

12.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the lap pre-tensioner seat belt.

am3zzw00009706

Warning
•  The lap pre-tensioner seat belt is very hot immediately after it is operated (deployed). You can be burned. Do not touch the lap pre-tensioner seat belt for at least 15 min after deployment.

13.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).
