CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION


id081000800900

Warning
•  Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.)

4SD

1.  Shift to the D (ATX/CVT) or 4th gear (MTX) position.

2.  Disconnect the negative battery cable and wait for 1 min or more. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)

3.  Partially peel back the seaming welts.

4.  Remove the following parts:

(1)  Sunroof seaming welt (vehicles with sunroof)
(2)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(3)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(4)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(5)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(6)  Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(7)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(8)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(9)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
(10)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(11)  Map light (See MAP LIGHT REMOVAL/INSTALLATION.)
(12)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
(13)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

5.  Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.)

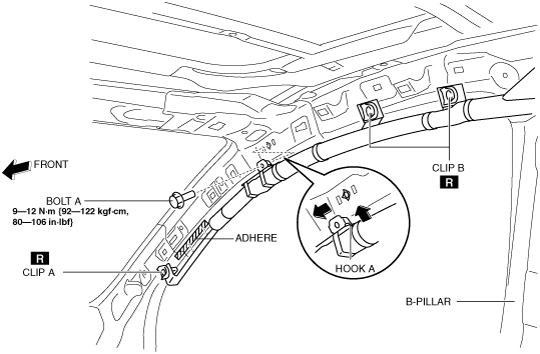

6.  Disconnect the connector (harness side).

am3uuw00004218
am3zzw00011085
am3zzw00011086

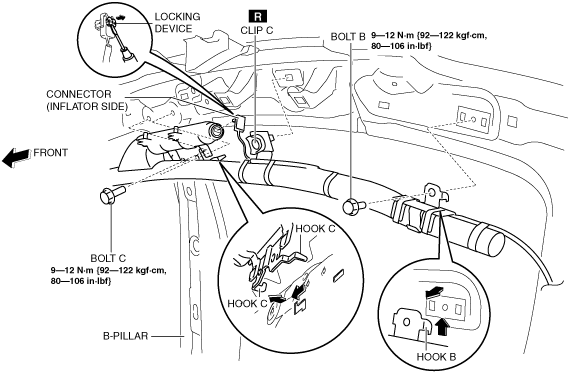

7.  Disconnect the connector (inflator side).

8.  Remove the clip A. (See Clip Removal Note.)

9.  Remove the bolt A.

10.  Pull hook A in the direction shown in the figure and remove it from the body.

11.  Remove the clip B. (See Clip Removal Note.)

12.  Remove the bolt B.

13.  Pull hook B in the direction shown in the figure and remove it from the body.

14.  Remove the clip C. (See Clip Removal Note.)

15.  Remove the bolt C.

16.  Pull hook C in the direction shown in the figure and remove it from the body.

17.  Remove the curtain air bag module.

18.  Install in the reverse order of removal.

19.  When the switch the ignition to ON verify that the air bag system warning light illuminates for approx. 6 s and goes out.

•  If the air bag system warning light does not operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection of the system. (See FLOWCHART.)


5HB

1.  Disconnect the negative battery cable and wait for 1 min or more. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)

2.  Partially peel back the seaming welts.

3.  Remove the following parts:

(1)  Sunroof seaming welt (vehicles with sunroof)
(2)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(3)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(4)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(5)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(6)  Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(7)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(8)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(9)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
(10)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
(11)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(12)  Map light (See MAP LIGHT REMOVAL/INSTALLATION.)
(13)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
(14)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

4.  Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.)

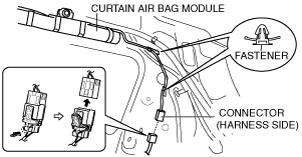

5.  Remove the fastener.

am3uuw00004221

6.  Disconnect the connector (harness side).

am3zzw00011085
am3zzw00011087

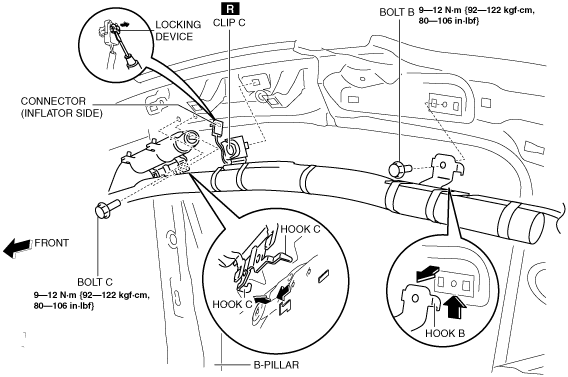

7.  Disconnect the connector (inflator side).

8.  Remove the clip A. (See Clip Removal Note.)

9.  Remove the bolt A.

10.  Pull hook A in the direction shown in the figure and remove it from the body.

11.  Remove the clip B. (See Clip Removal Note.)

12.  Remove the bolt B.

13.  Pull hook B in the direction shown in the figure and remove it from the body.

14.  Remove the clip C. (See Clip Removal Note.)

15.  Remove the bolt C.

16.  Pull hook C in the direction shown in the figure and remove it from the body.

17.  Remove the curtain air bag module.

18.  Install in the reverse order of removal.

19.  When the switch the ignition to ON verify that the air bag system warning light illuminates for approx. 6 s and goes out.

•  If the air bag system warning light does not operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection of the system. (See FLOWCHART.)


Clip Removal Note

1.  Pull out the pin with flathead screwdriver as shown in the figure.

am3uuw00004223

2.  Insert a flathead screwdriver into shown in the figure.

am3uuw00004224

3.  While pulling the curtain air bag in the direction of the arrow shown in the figure (1), detach tabs by prying with a flathead screwdriver in the direction of the arrow (2) (3).

am3uuw00004225

4.  Remove the clip from the body.
