DTC B11D3:11 [REAR VEHICLE MONITORING SYSTEM]

id0902z2886400

DESCRIPTION

RVM warning indicator light (LH) circuit malfunction
DETECTION CONDITION
•  Short to ground in RVM warning indicator light (LH) circuit.
POSSIBLE CAUSE
•  RVM warning indicator light (LH) connector or terminals malfunction
•  Rear vehicle monitoring control module (LH) connector or terminals malfunction

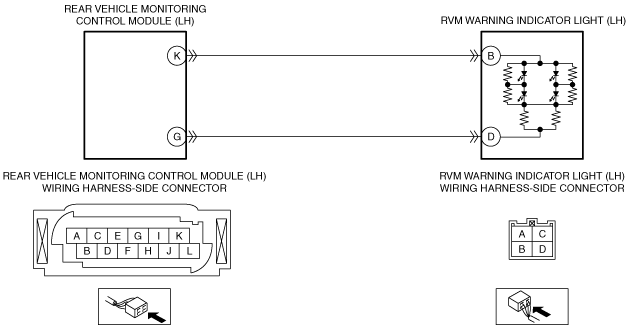

•  Short to ground in wiring harness between the following terminals:
―  RVM warning indicator light (LH) terminal B—Rear vehicle monitoring control module (LH) terminal K
―  RVM warning indicator light (LH) terminal D—Rear vehicle monitoring control module (LH) terminal G
•  RVM warning indicator light (LH) malfunction
•  Rear vehicle monitoring control module (LH) malfunction

Diagnostic Procedure

STEP

INSPECTION

ACTION
1
INSPECT RVM WARNING INDICATOR LIGHT (LH) CONNECTOR CONDITION
•  Switch the ignition to off.
•  Disconnect the negative battery cable.
•  Disconnect the RVM warning indicator light (LH) connector.
•  Inspect the connector and terminals (corrosion, damage, pin disconnection).
•  Is there any malfunction?
Yes
Repair or replace the connector or terminals, then go to Step 5.
No
Go to the next step.
2
INSPECT REAR VEHICLE MONITORING CONTROL MODULE (LH) CONNECTOR CONDITION
•  Disconnect the rear vehicle monitoring control module (LH) connector.
•  Inspect the connector and terminals (corrosion, damage, pin disconnection).
•  Is there any malfunction?
Yes
Repair or replace the connector or terminals, then go to Step 5.
No
Go to the next step.
3
INSPECT RVM WARNING INDICATOR LIGHT (LH) CIRCUIT FOR SHORT TO GROUND
•  Verify that the RVM warning indicator light (LH) and rear vehicle monitoring control module (LH) connectors are disconnected.
•  Inspect for continuity between the following terminals (wiring harness-side) and body ground:
―  RVM warning indicator light (LH) terminal B
―  RVM warning indicator light (LH) terminal D
•  Is there continuity?
Yes
Repair or replace the wiring harness for a possible short to ground, then go to Step 5.
No
Go to the next step.
4
INSPECT RVM WARNING INDICATOR LIGHT (LH)
•  Inspect the RVM warning indicator light (LH).
•  Is there any malfunction?
Yes
Replace the RVM warning indicator light (LH), then go to the next step.
(See OUTER MIRROR GLASS REMOVAL.)
(See OUTER MIRROR GLASS INSTALLATION.)
No
Go to the next step.
5
VERIFY TROUBLESHOOTING COMPLETED
•  Make sure to reconnect all disconnected connectors.
•  Reconnect the negative battery cable.
•  Clear the DTC from rear vehicle monitoring control module using the M-MDS.
•  Illuminates the RVM warning indicator light (LH) using the simulation item WRN_IND_L.
•  Perform the rear vehicle monitoring control module DTC inspection using the M-MDS.
•  Is the same DTC present?
Yes
Repeat the inspection from Step 1.
•  If the malfunction recurs, replace the rear vehicle monitoring control module (LH).
Go to the next step.
No
Go to the next step.
6
VERIFY THAT NO OTHER DTCs ARE PRESENT
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
(See DTC TABLE [REAR VEHICLE MONITORING SYSTEM].)
No
DTC troubleshooting completed.
